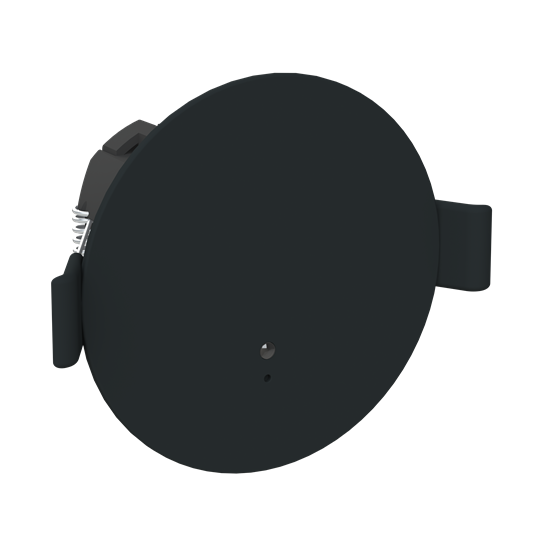

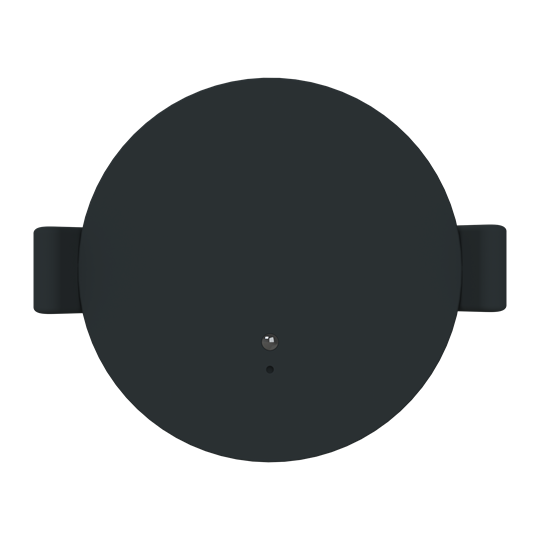

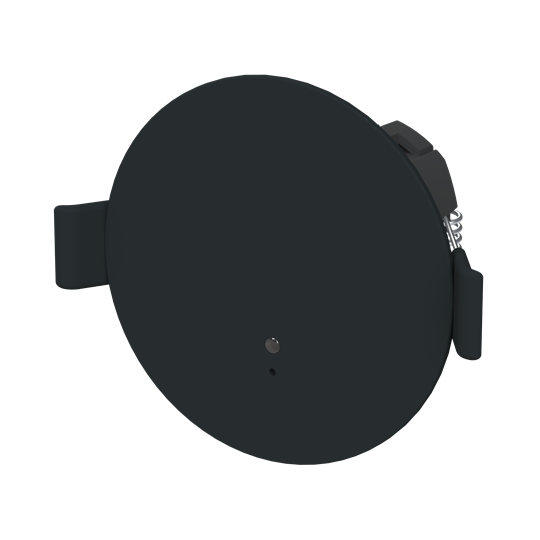

Busch-Watchdog HF KNX 360 ° Presence Detector KNX black matt
Movement Detector HF KNX, Basic, black
Detection Range (Circular):
- Mounting height 2.5 m: Ø max. 10 m
- Mounting height 3.0 m: Ø max. 12 m
- Mounting height 4.0 m: Ø max. 10 m
Technology:
- 5.8 GHz HF (High Frequency) radar technology
- Penetrates materials such as drywall, wood, and glass
- 2 independent channels
- Integrated KNX bus coupler
Please refer to the installation instructions for proper setup and optimal performance.
Integrated Sensors:
- Brightness sensor
- Temperature sensor
- Humidity sensor
Functions:
- Movement detector with 2 power-off stages
- Integrated monitoring/surveillance function
- Constant light switching with up to 2 independent channels
- Brightness-dependent switching of two light circuits
- KNX Data Secure

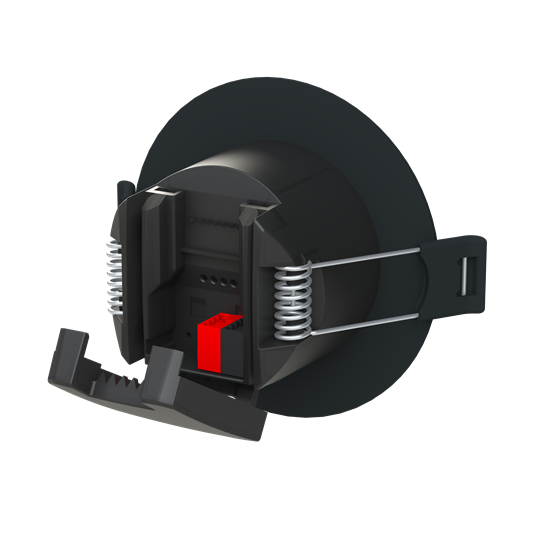

Installation Options:
- Recessed ceiling: Hole size Ø 68 mm
- Surface mounting: With PMA/A1.xx-88x housing
- British Standard box: PMA/K1.1-88x
- VDE flush-mounted box: PMA/K2.xx-88x
Product identifiers
SKU: 2TYZ510205G0701
EAN: 6925897543895
GTIN: 6925897543895
MPN: BMH/U2.1.1-885
Loyalty points:
18
Price: £ 181.88 Excl. VAT
Specifications
| Depth | 40 |
| Model | Movement sensor |
| Width | 80 |
| Colour | Black |
| Height | 80 |
| Diameter | - |
| Material | Plastic |
| Animal zone | - |
