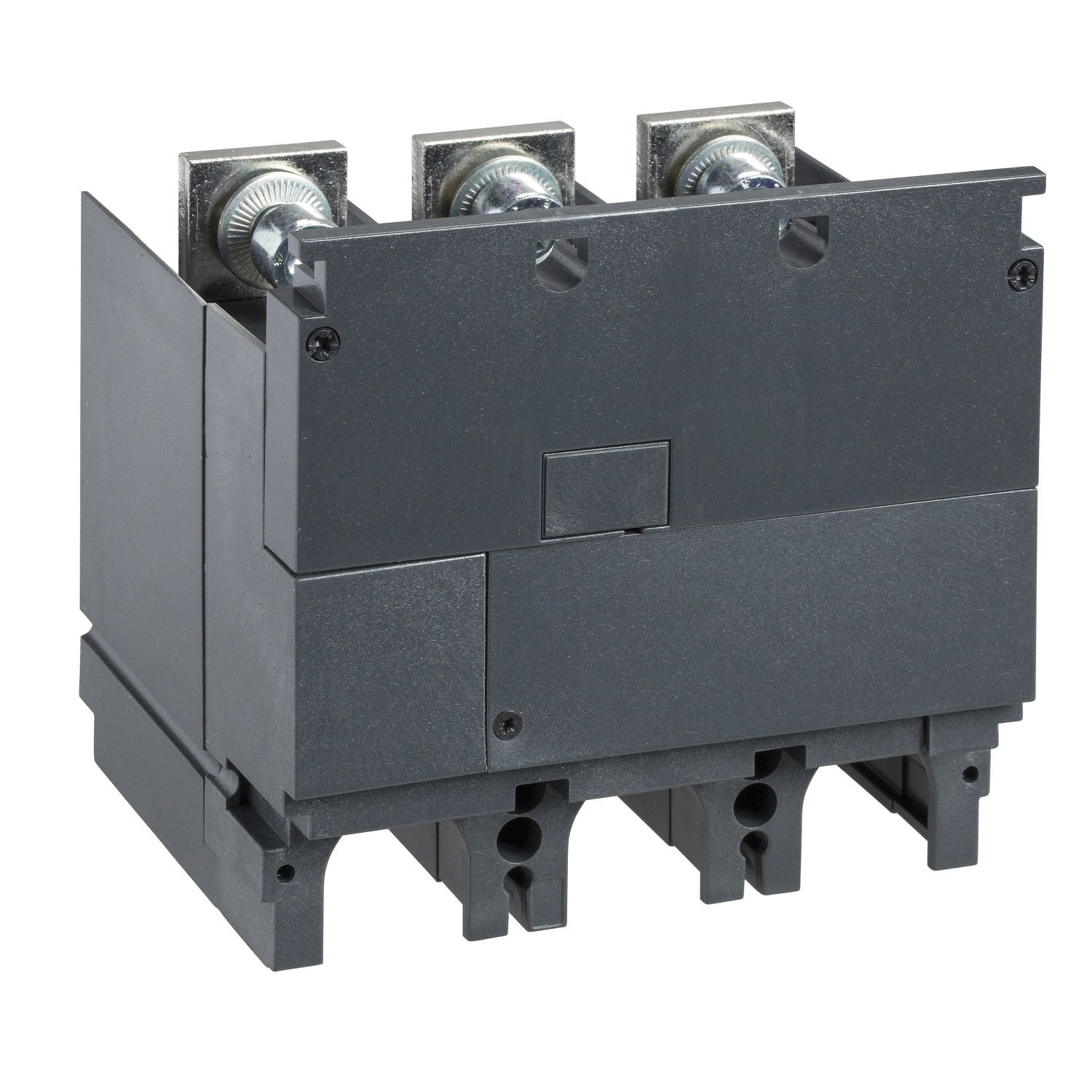

Current transformer module with voltage output, ComPact NSX400/630, 400 A rating, 3 poles

Name: Current transformer module with voltage output, ComPact NSX400/630, 400 A rating, 3 poles
Brand: Schneider Electric
SKU: LV432653
Availability: InStock

Current transformer module with voltage output, ComPact NSX400/630, 400 A rating, 3 poles by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and TLA. It is currently in stock at all of them. Trade price £442.54 excl. VAT. Voltimum+ members earn 69 points per unit.

This is an additional current transformer module of 400A rating with voltage measurement output for 3 poles ComPact NSX 400/630 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 400A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 2VA. The class accuracy is 0.5. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.

Product identifiers

SKU: LV432653

EAN: 3606480020810

GTIN: 3606480020810

MPN: LV432653

Loyalty points: 69

Price: £ 442.54 Excl. VAT

Specifications

Model	Through-feed current converter
Calibrated	yes
Snap mounting	no
Width opening
Accuracy class	0.5
Height opening
Opening diameter	-
With copper rail	no
Power consumption	2 W
Secondary connection	Screw connection
Rated primary current	400 A
Rated secondary current	5 A
With contact protection	yes
Number of primary inputs	3
Overcurrent limiting factor	-
Rated secondary apparent power	2 VA
