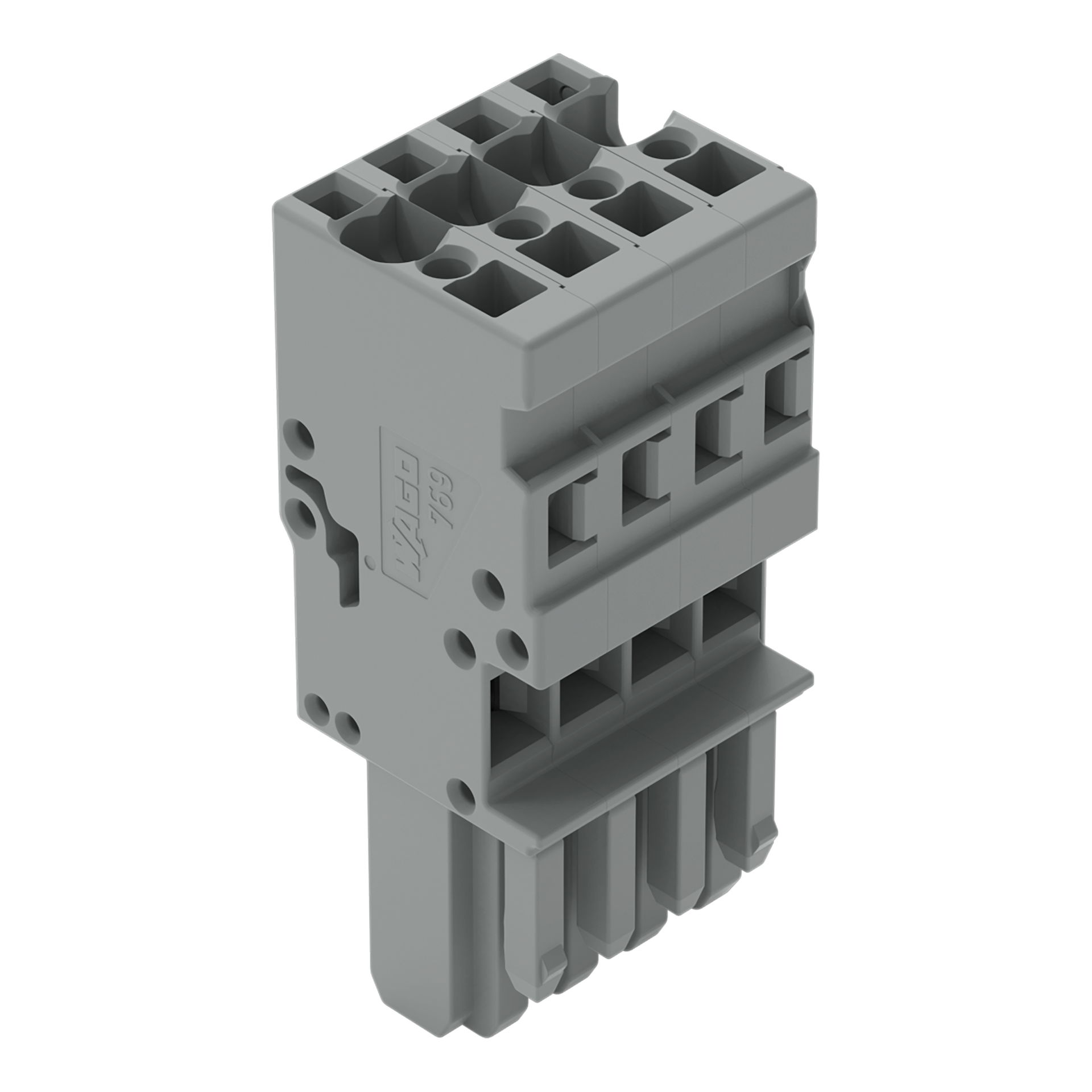

1-conductor female connector CAGE CLAMP® 4 mm² gray

Name: 1-conductor female connector CAGE CLAMP® 4 mm² gray
Brand: Wago
SKU: 769-104
Availability: InStock

1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 4-pole; coding finger; 4,00 mm²; gray

Product identifiers

SKU: 769-104

EAN: 4044918471442

GTIN: 4044918471442

MPN: 769-104

Price range: £ 3.58 - £ 4.09 Excl. VAT

Terminal blocks

Specifications

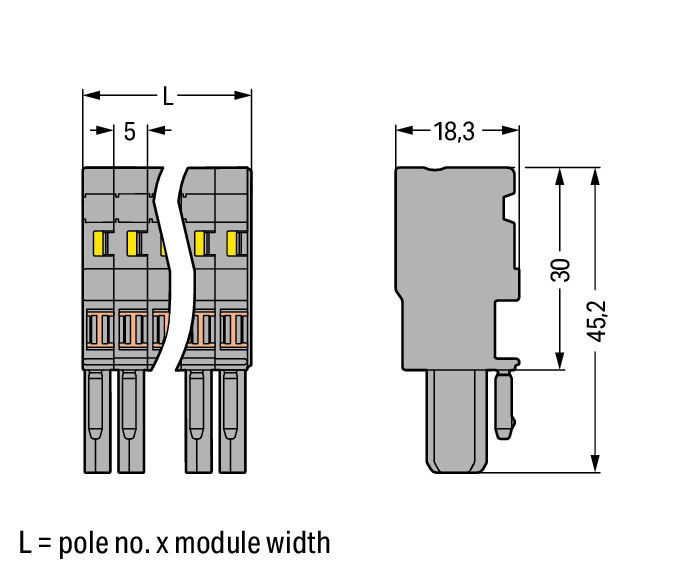

Depth	45.2
Width	20
Colour	Grey
Height	18.3
Transparent	no
Halogen free	yes
Rated voltage	500
Mounting method	Other
Number of poles	4
Rated current In	32
Operating temperature	105 - 105
Closing plate required	no
Material insulation body	Thermoplastic
Drill hole distance centrically	-
Explosion-tested version 'Ex e'	no
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per pole	1
Connectable conductor cross section solid-core	0.08 - 4
Connectable conductor cross section multi-wired	0.08 - 4
Inflammability class of insulation material according to UL94	-
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 4
