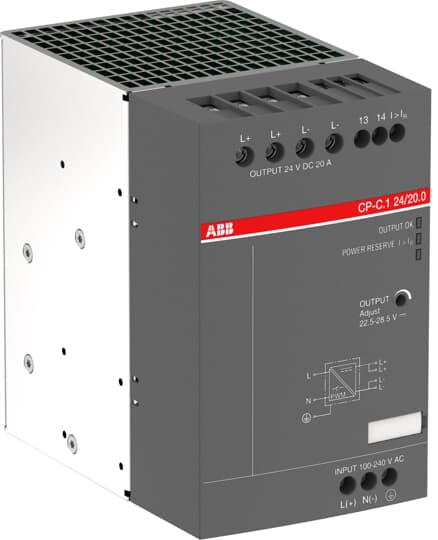

CP-C.1 24/20.0-C Power supply In:100-240VAC/90-300VDC Out:DC 24V/20A

Link copied
SKU
EAN
GTIN
MPN

CP-C.1 24/20.0-C Power supply In:100-240VAC/90-300VDC Out:DC 24V/20A by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell, and currently in stock. Trade price £550.53 excl. VAT. Voltimum+ members earn 387 points per unit.

The CP-C.1 24/20.0-C is a power supply from the CP-C.1 range with coated PCBA. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 30 % and allows parallel operation to increase capacity and to enable redundancy. ATEX and IECEx approvals are available to be used in hazardous area applications. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories

Voltimum+ Loyalty Programme Loyalty points: 387

Price: £ 550.53 Excl. VAT

Specifications

Depth 136
Width 82
Height 129.4
Stabilized yes
Power output 480
Built-in width 82
Built-in height 129.4
Modular version no
Short-circuit-proof yes
Max. output current 2 0
Wall mounting possible no
Direct mounting possible no
Output voltage stabilized yes
Suitable for rail mounting yes
Type of electric connection Screw connection
2nd secondary output voltage
Secondary voltage adjustable no
Rated supply voltage AC 60 Hz
Voltage type (supply voltage) AC/DC
Nominal value output current 2 0
Nominal value output voltage 1 24
Nominal value output voltage 3 0
Performance level according to EN ISO 13849-1 None
