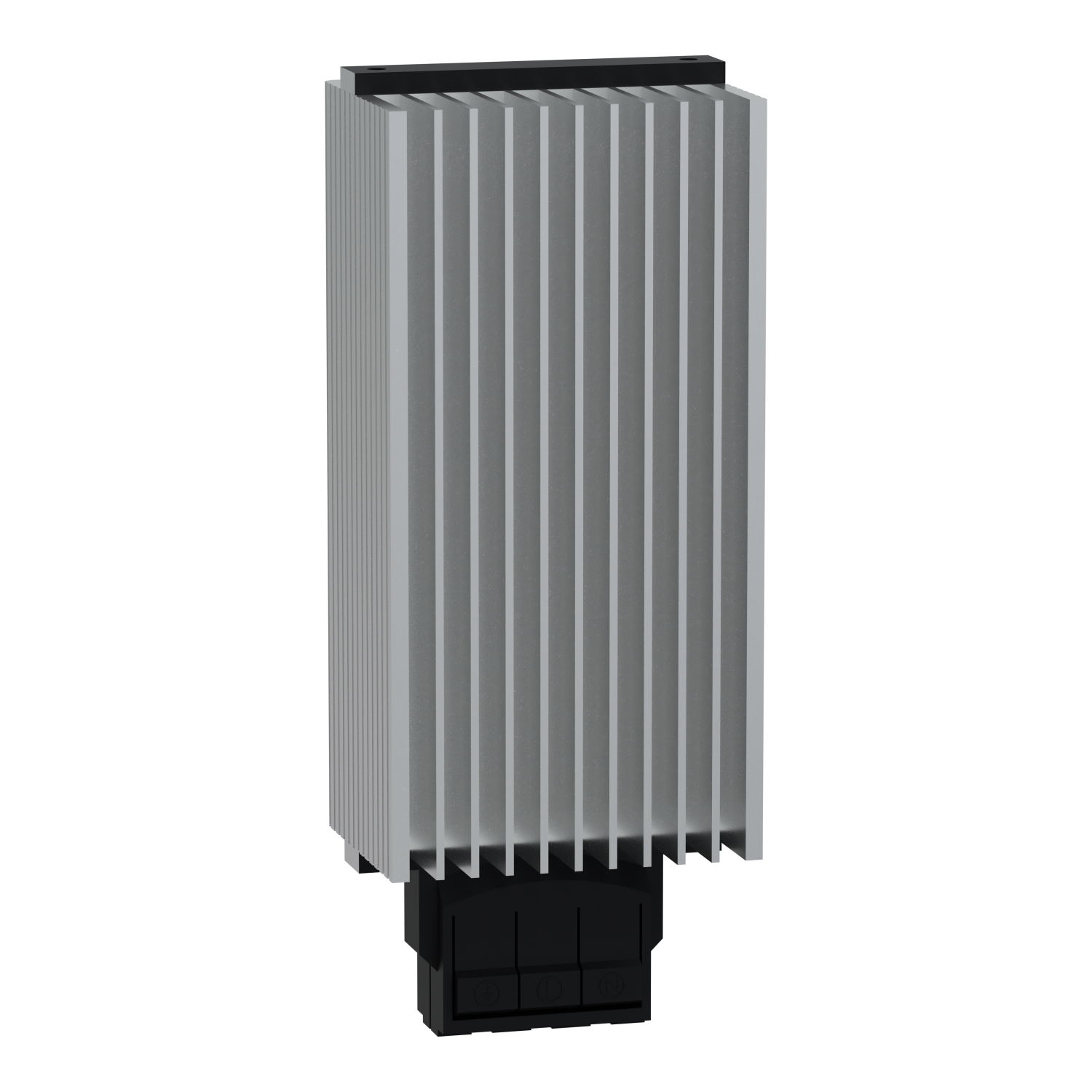

ClimaSys PTC heating resistance 55W, 12-24V

Link copied
SKU
EAN
GTIN
MPN

ClimaSys PTC heating resistance 55W, 12-24V by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £81.85 excl. VAT. Voltimum+ members earn 10 points per unit.

ClimaSys PTC heating resistance. 50W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.

Voltimum+ Loyalty Programme Loyalty points: 10

Price: £ 81.85 Excl. VAT

Specifications

Depth 85 mm
Width 70 mm
Height 205 mm
With fan no
Rated power 55 W
Voltage type DC
Operating voltage DC
Degree of protection (IP) IP20
Operating voltage AC 60 Hz
With room temperature controller no

Documents

Declaration of Conformity (Sustainability)

NSYCR55WU1 REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Instruction sheet

INSULATED HEATERS INSTRUCTIONS

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYCR55WU1 EU RoHS Directive

Open

Declaration of conformity

DoC_UE_Climasys_Heaters

Open

Environmental Disclosure

ClimaSys Resistance heater

Open
