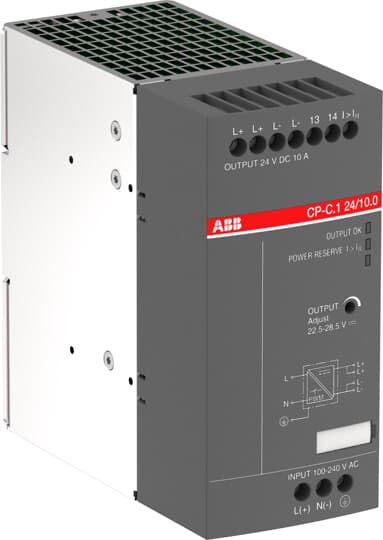

CP-C.1 24/10.0-C Power supply In:100-240VAC/90-300VDC Out:DC 24V/10A
The CP-C.1 24/10.0-C is a power supply from the CP-C.1 range with coated PCBA. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 240 W, rated output current is 10 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 50 % and allows parallel operation to increase capacity and to enable redundancy. ATEX and IECEx approvals are available to be used in hazardous area applications. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
Product identifiers
SKU: 1SVR360663R2001
EAN: 4013614503856
GTIN: 4013614503856
MPN: CP-C.1 24/10.0-C
Loyalty points:
250
Price: £ 449.97 Excl. VAT
Categories
Features
|
Depth
|
136 mm
|
|
Width
|
60 mm
|
|
Height
|
129.4 mm
|
|
EFI00008
|
-
|
|
EFI00040
|
-
|
|
EFI00049
|
-
|
|
EFI00332
|
-
|
|
EFI00846
|
-
|
|
Stabilized
|
yes
|
|
Power output
|
240 W
|
|
Built-in width
|
60 mm
|
|
Built-in height
|
129.4 mm
|
|
Modular version
|
no
|
|
Power consumption
|
256 VA
|
|
Short-circuit-proof
|
yes
|
|
Max. output current 1
|
15 A
|
|
Max. output current 2
|
|
|
Max. output current 3
|
|
|
Wall mounting possible
|
no
|
|
Rated supply voltage DC
|
90 - 300 V
|
|
Direct mounting possible
|
no
|
|
Degree of protection (IP)
|
IP20
|
|
Output voltage stabilized
|
yes
|
|
SIL according to IEC 61508
|
None
|
|
Suitable for rail mounting
|
yes
|
|
Degree of protection (NEMA)
|
1
|
|
Type of electric connection
|
Screw connection
|
|
1st secondary output voltage
|
24 - 24 V
|
|
2nd secondary output voltage
|
|
|
3rd secondary output voltage
|
|
|
Secondary voltage adjustable
|
no
|
|
Rated supply voltage AC 50 Hz
|
85 - 264 V
|
|
Rated supply voltage AC 60 Hz
|
85 - 264 V
|
|
Suitable for safety functions
|
no
|
|
Voltage type (supply voltage)
|
AC/DC
|
|
Nominal value output current 1
|
10 A
|
|
Nominal value output current 2
|
|
|
Nominal value output current 3
|
|
|
Nominal value output voltage 1
|
24 V
|
|
Nominal value output voltage 2
|
|
|
Nominal value output voltage 3
|
|
|
Width in number of modular spacings
|
-
|
|
Performance level according to EN ISO 13849-1
|
None
|
