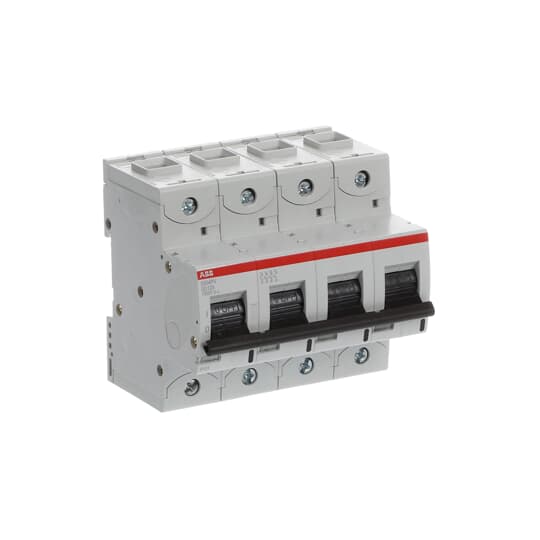

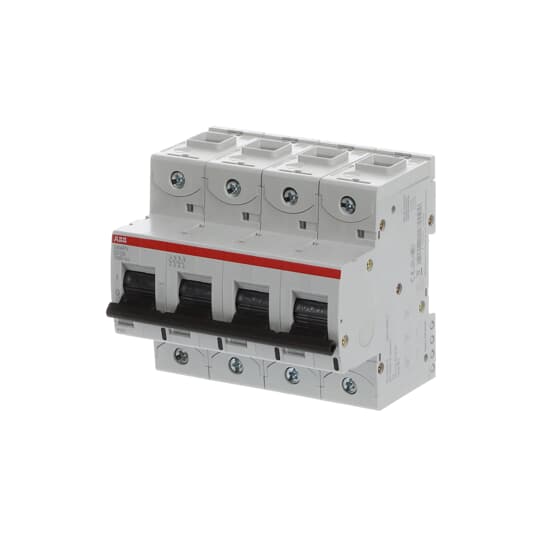

S804PV-SD125 High Performance MCB – Image 3 of 3

1 / 3

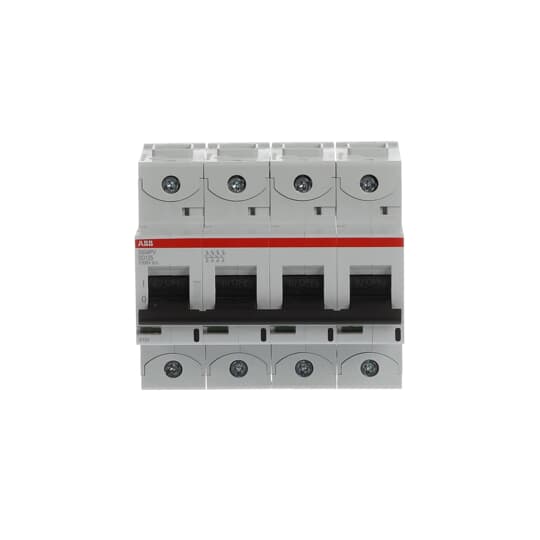

S804PV-SD125 High Performance MCB

Name: S804PV-SD125 High Performance MCB
Brand: ABB
SKU: 2CCF019642R0001
Availability: InStock

S804PV-SD125 High Performance MCB by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £674.32 excl. VAT. Voltimum+ members earn 330 points per unit.

S804PV-SD125 4 Pole DC main switch 125A 1.5kA 1500VDC DC main switch

Product identifiers

SKU: 2CCF019642R0001

EAN: 7612271472092

GTIN: 7612271472092

MPN: S804PV-SD125

Loyalty points: 330

Price: £ 674.32 Excl. VAT

Specifications

Depth	82.5
Width	106
Height	95
Interlockable	no
Number of poles	4
Number of switches	7000
Device construction	-
Motor drive optional	no
Colour control element	Black
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	-
Switching power at 400 V	-
Version as safety switch	no
Voltage release optional	yes
Rated permanent current Iu	125
With pre-assembled cabling	-
Degree of protection (NEMA)	-
Suitable for floor mounting	no
Version as reversing switch	no
Max. rated operation voltage Ue AC	-
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	yes
Suitable for intermediate mounting	yes
Width in number of modular spacings	6
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	-
Rated short-time withstand current lcw	1.5
Version as emergency stop installation	no
Version as maintenance-/service switch	no
Rated permanent current at AC-21, 400 V	-
Rated permanent current at AC-23, 400 V	-
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	-
Number of auxiliary contacts as change-over contact	-
Number of auxiliary contacts as normally open contact	-
Number of auxiliary contacts as normally closed contact	-
