Schneider Electric
Popularity Top 30% More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

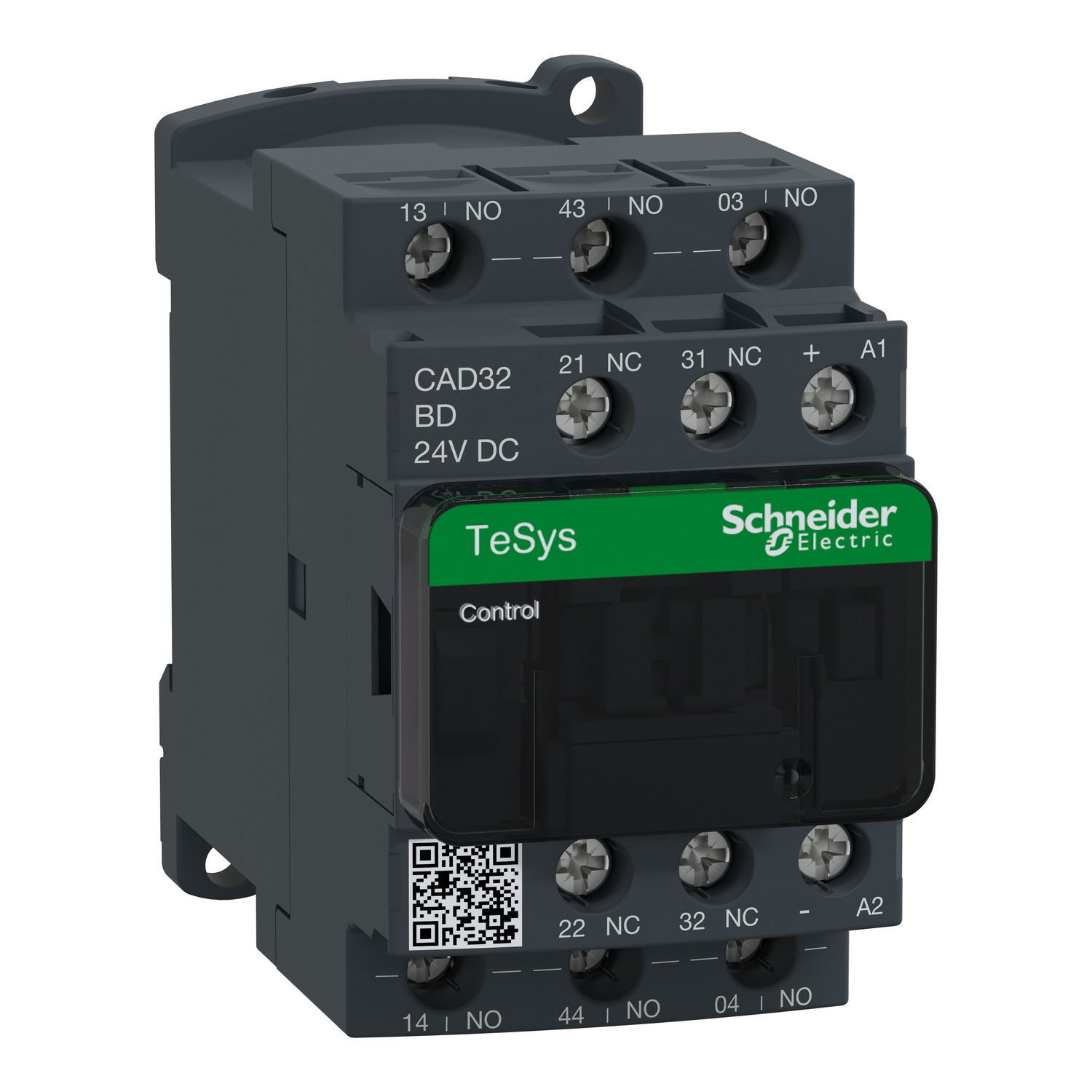

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 24 V DC standard coil

Link copied
SKU
EAN
GTIN
MPN

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 24 V DC standard coil by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £51.90 to £85.37 excl. VAT. Voltimum+ members earn 11 points per unit.

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Voltimum+ Loyalty Programme Loyalty points: 11

Price range: £ 51.90 - £ 85.37 Excl. VAT

Specifications

Depth 84 mm
Width 45 mm
Height 77 mm
Interface no
Mounting method DIN-rail/screw
With LED indication no
Operating voltage DC
Rated switch current 0.005 A
Operating voltage AC 50 Hz
Voltage type for actuating DC
Rated control supply voltage DC
Connection type auxiliary circuit Screw connection
Rated control supply voltage AC 50 Hz
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 2
Number of auxiliary contacts as normally closed contact, delayed switching 0
