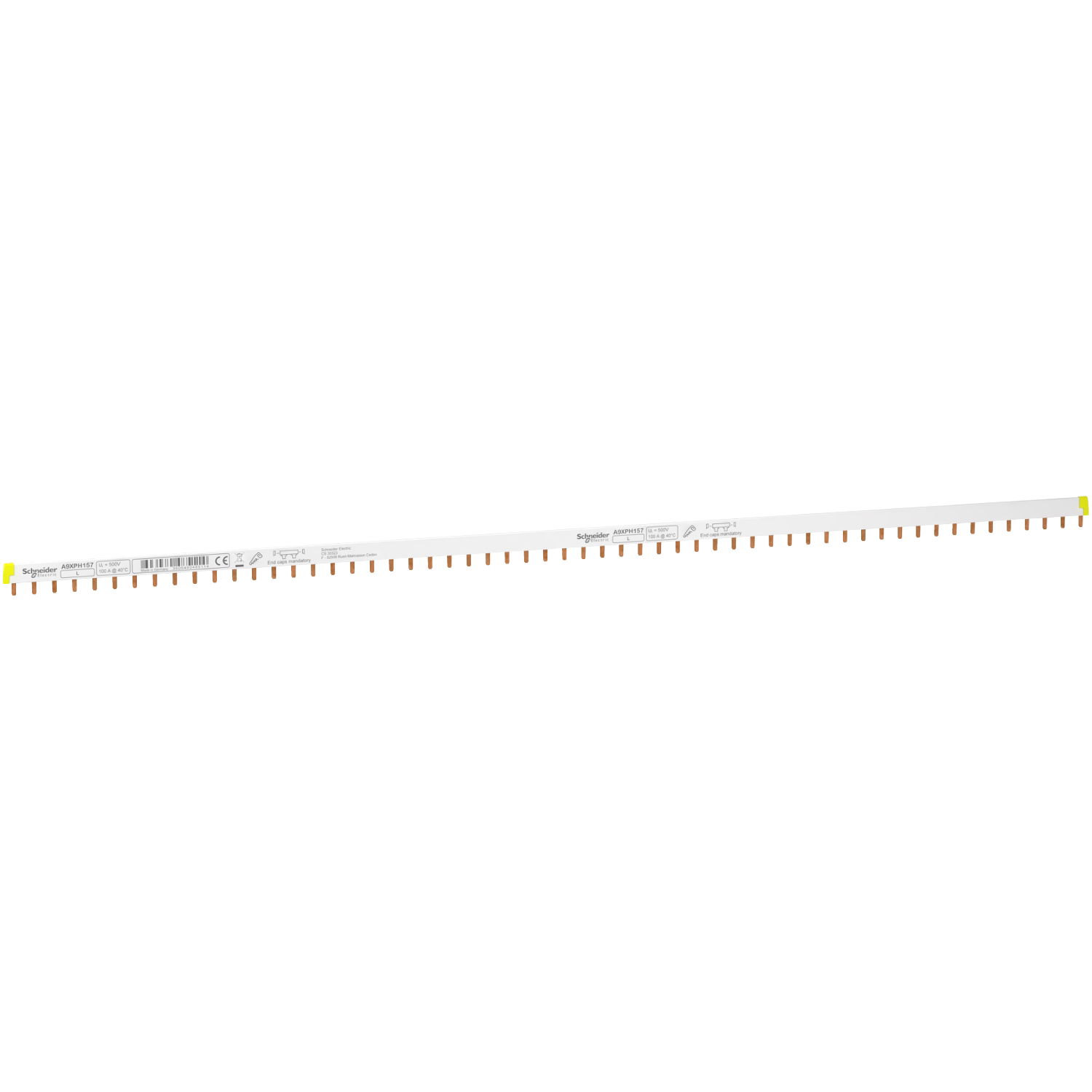

Acti9 - comb busbar - 1L - 18 mm pitch - 57 modules - 100A
Acti9 - comb busbar - 1L - 18 mm pitch - 57 modules - 100A by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components and TLA. It is currently in stock at 2 of them. Trade prices range from £55.83 to £80.56 excl. VAT. Voltimum+ members earn 9 points per unit.
This Acti 9 horizontal comb busbar 18mm modules for Acti 9 C60 is cuttable. It is dedicated to 1L installations. The type is L1 (Line). It is a set of 1 device. It is suitable for 57 devices (1P). The length is 1000mm.The total number of modules of 18mm is 57. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 2. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is anthracite grey RAL7016. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
Product identifiers
SKU: A9XPH157
EAN: 3606480485114
GTIN: 3606480485114
MPN: A9XPH157
Loyalty points:
9
Price range: £ 55.83 - £ 80.56 Excl. VAT
Categories
ETIM group
Specifications
| Colour | White |
| Length | 1000 mm |
| Insulated | yes |
| Module width | 18 mm |
| Cross section | 16 mm² |
| Number of poles | 1 |
| Number of phases | 1 |
| Can be cut to size | yes |
