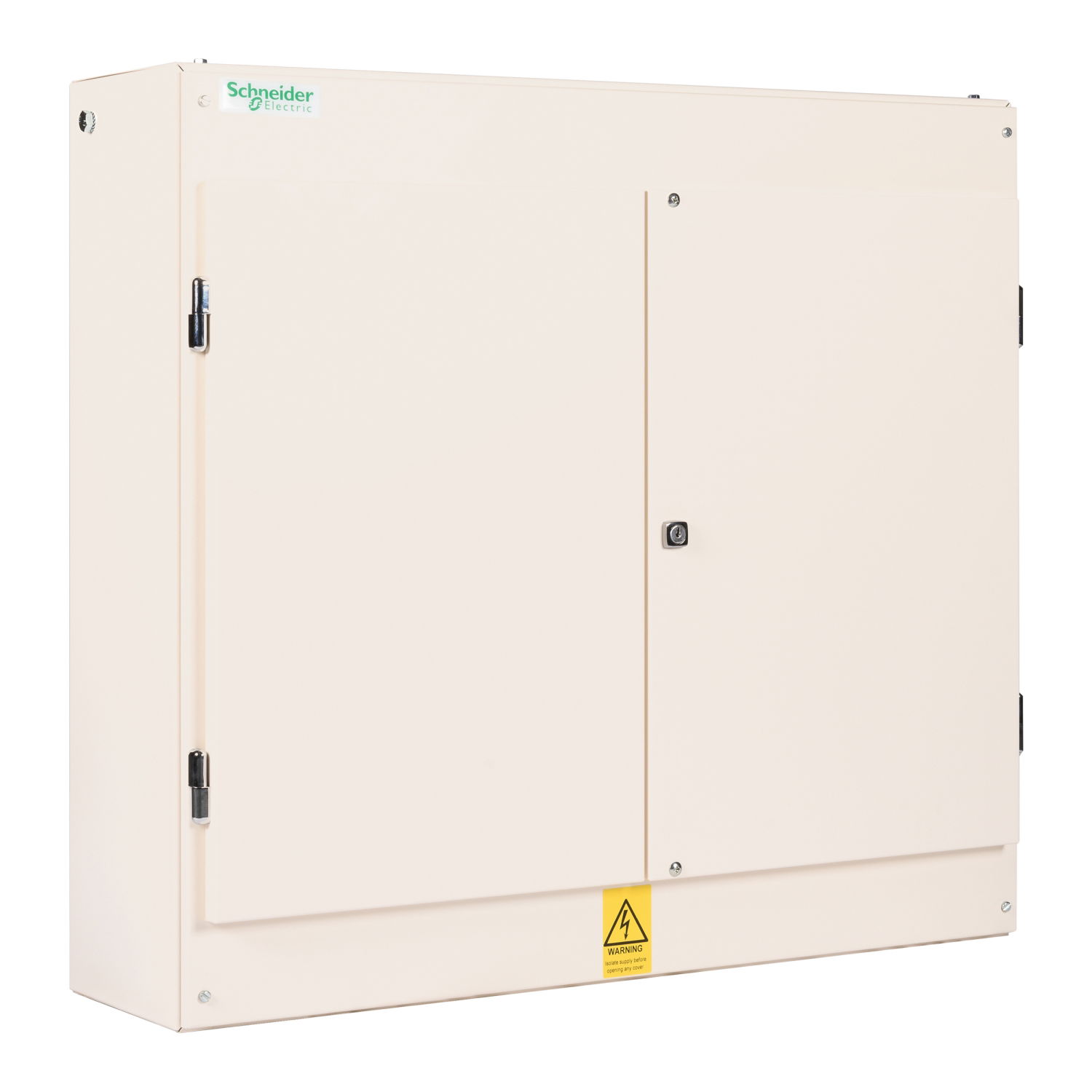

Powerpact 4 - panelboard - 250A - 5 ways - 3P - Style C

Name: Powerpact 4 - panelboard - 250A - 5 ways - 3P - Style C
Brand: Schneider Electric
SKU: MG2C5
Availability: InStock

Product identifiers

SKU: MG2C5

EAN: 5018934933245

GTIN: 5018934933245

MPN: MG2C5

Loyalty points: 161

Price range: £ 904.73 - £ 1,347.47 Excl. VAT

Distribution boards

Specifications

Depth	260 mm
Width	853 mm
Height	680 mm
Lockable	-
Protection	Miniature-/earth leakage circuit breaker
Cooker group	-
Built-in depth
Mounting method	Other
Housing material	Steel
Number of phases	3
Extension possible	yes
With socket outlet	yes
With bell transformer	no
Number of light groups	-
Total number of groups	5
With transparent cover	no
Number of direct groups	-
Over voltage protection	no
Degree of protection (IP)	IP3X
Main switch rated current	250 A
Number of poles main switch	4
Width in number of modular spacings	-
Number of earth leakage switches 30 mA	-
Number of earth leakage switches 300 mA	-
Number of earth leakage circuit breakers	-
Cooker group suitable as power current group	-
Number of groups behind earth leakage switch	-
