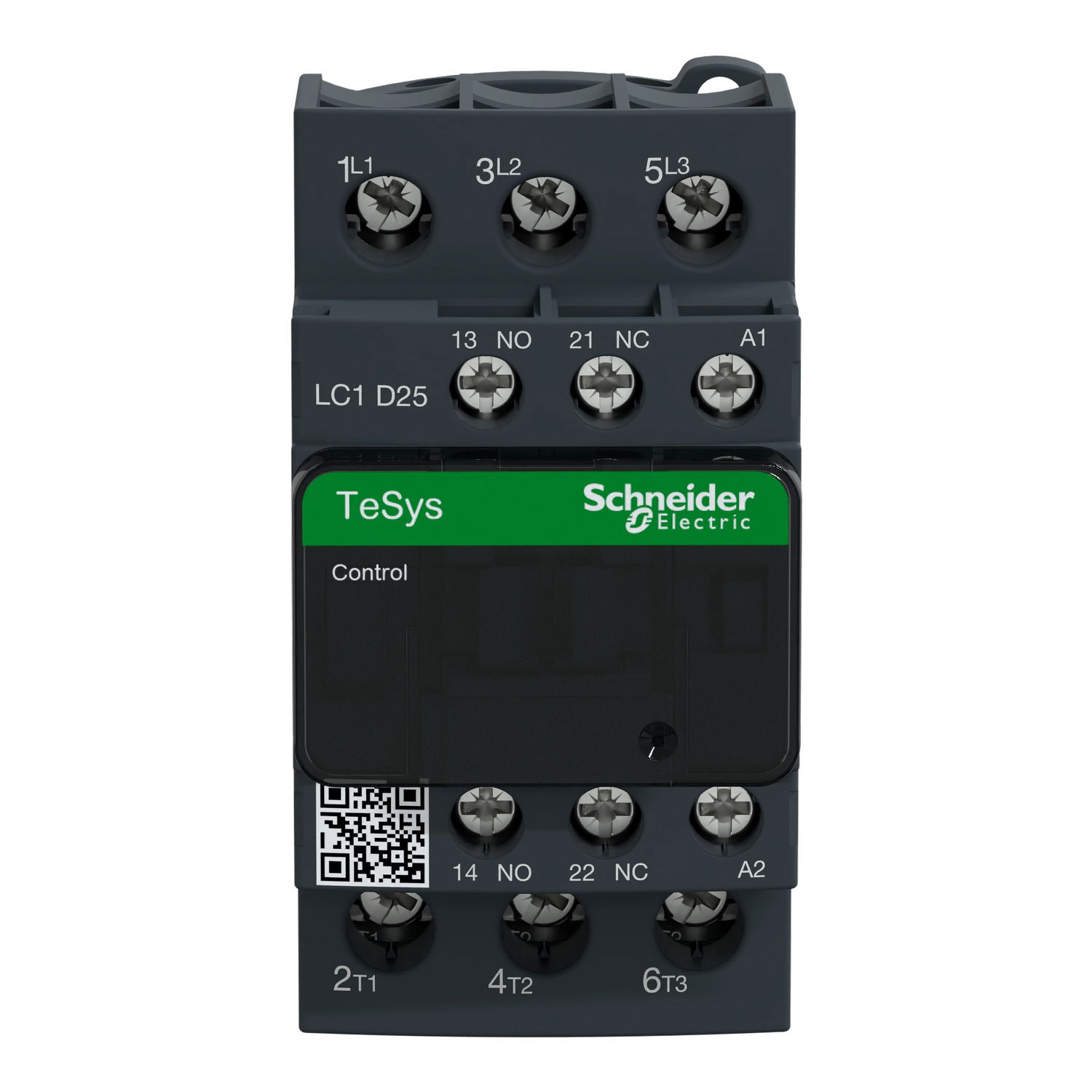

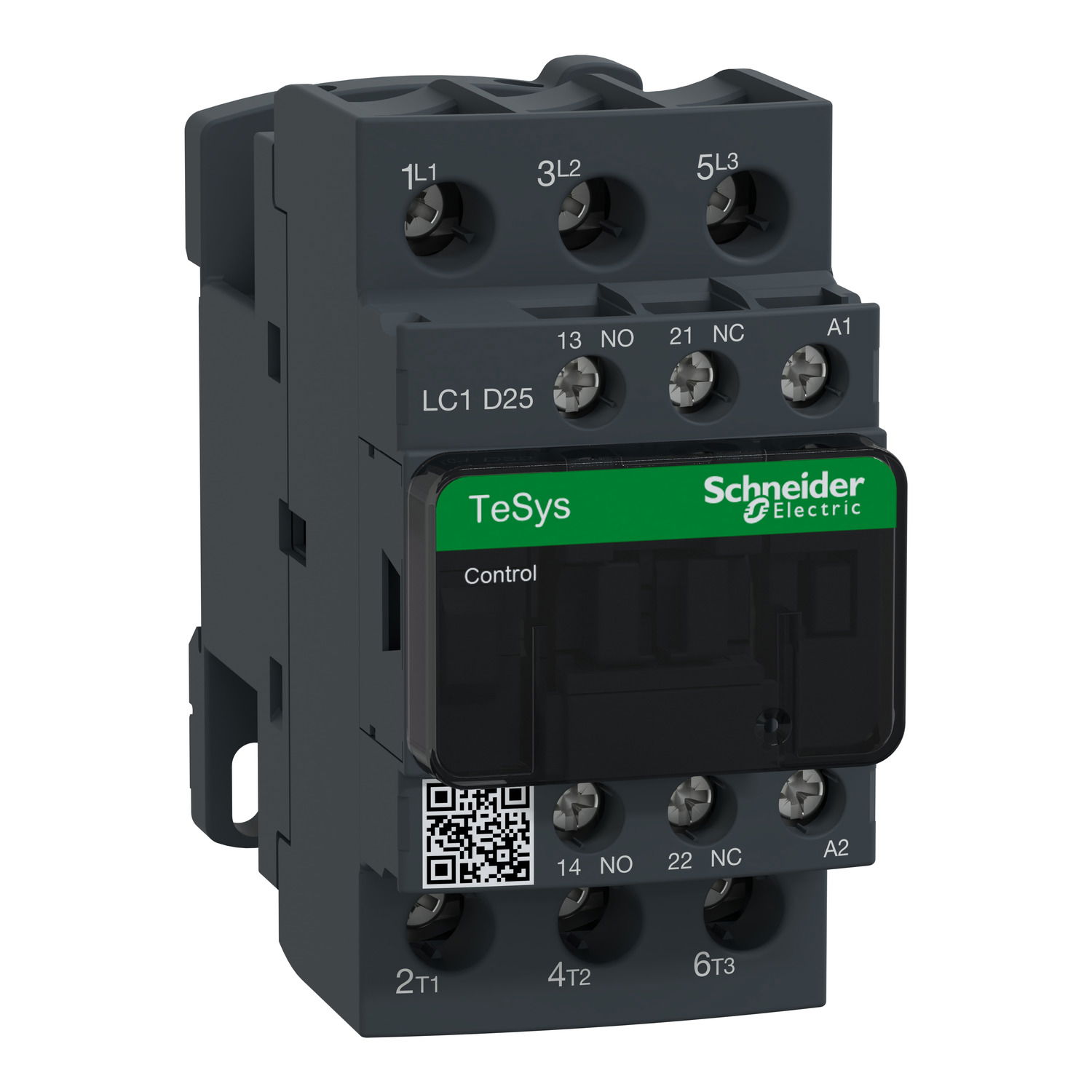

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 415 V AC coil
1 / 6
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 415 V AC coil
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 415 V AC coil by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 1 more. It is currently in stock at 3 of them. Trade prices range from £58.77 to £95.71 excl. VAT. Voltimum+ members earn 12 points per unit.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). It provides a 415V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1D25N7
EAN: 3389110349931
GTIN: 3389110349931
MPN: LC1D25N7
Loyalty points:
12
Price range: £ 58.77 - £ 95.71 Excl. VAT
ETIM group
Specifications
| Depth | 92 mm |
| Width | 45 mm |
| Height | 85 mm |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | AC |
