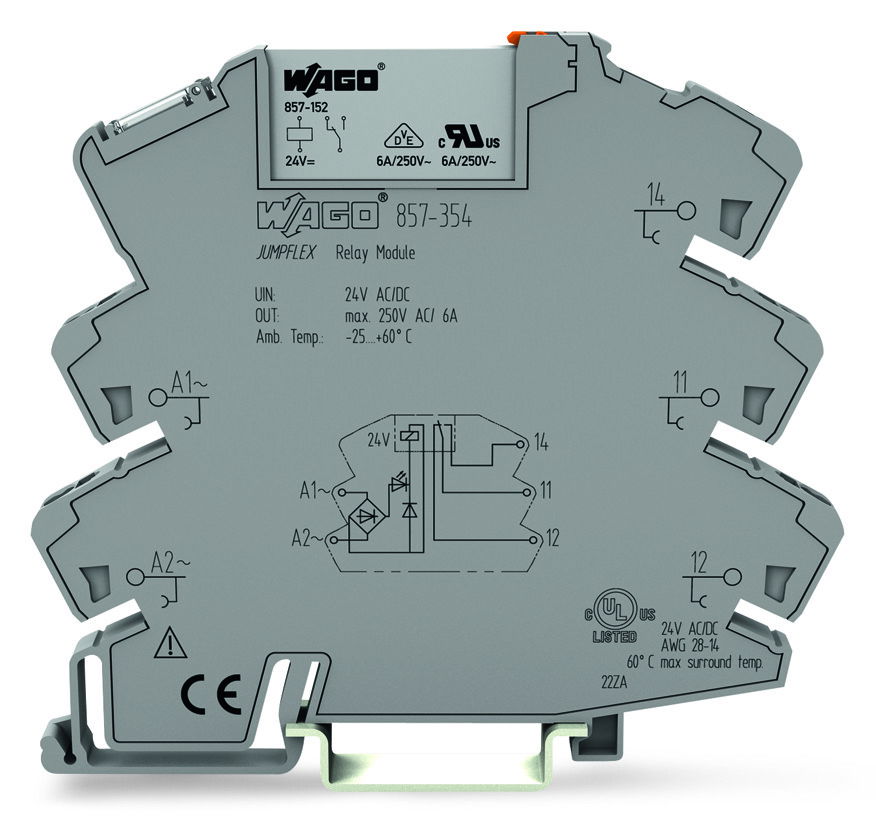

Relay module Nominal input voltage: 24 V AC/DC 1 changeover contact

Name: Relay module Nominal input voltage: 24 V AC/DC 1 changeover contact
Brand: Wago
SKU: 857-354
Availability: InStock

Relay module; Nominal input voltage: 24 V AC/DC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm

Product identifiers

SKU: 857-354

EAN: 4055143122061

GTIN: 4055143122061

MPN: 857-354

Price: £ 20.47 Excl. VAT

Relays

Specifications

Depth	94
Width	6
Height	94
Nominal current	6
Material contact	-
Drive, polarization	Polarity free
With LED indication	yes
Complete with socket	yes
Operating voltage DC
Max. starting current	-
Type of switch contact	Single contact
With detachable clamps	no
Degree of protection (IP)	IP20
Drive, switching attitude	Mono stable
Material of contact insert	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Voltage type for actuating	AC/DC
Material of contact surface	-
Type of electric connection	Spring clamp connection
With forced-guided contacts	no
Rated control supply voltage DC	24 - 24
Voltage type (operating voltage)	-
Rated control supply voltage AC 50 Hz	24 - 24
Rated control supply voltage AC 60 Hz	24 - 24
Number of contacts as change-over contact	1
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Relay technology category according to IEC 61810-7	-
