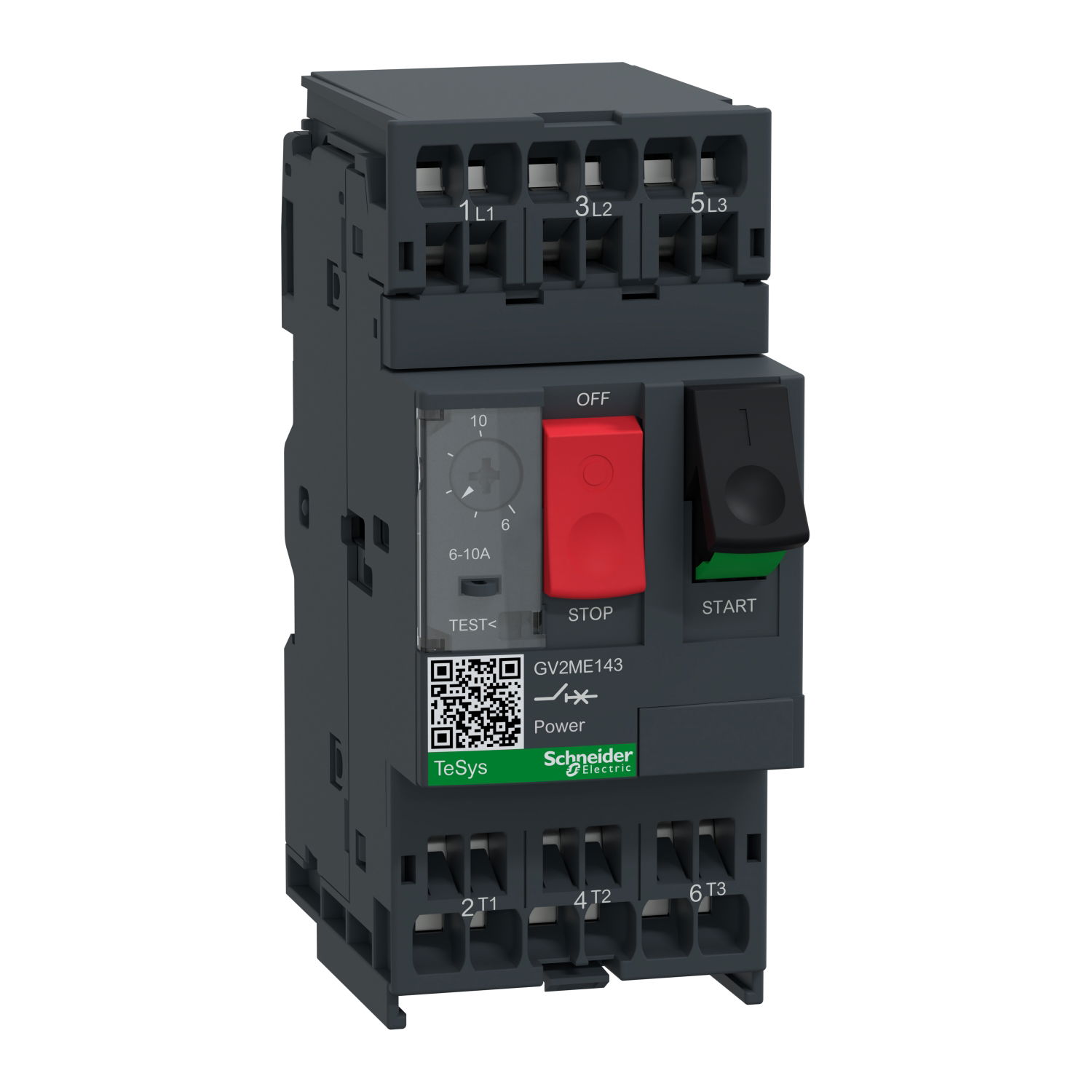

Motor circuit breaker, TeSys GV2, 3P, 6-10 A, thermal magnetic, spring terminals
TeSys GV motor circuit breaker, 3 poles (3P), 10A/690V, for 3-phase motor applications 3-4kW@400V. It provides a thermal-magnetic protection with a thermal setting range 6-10A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),
Product identifiers
SKU: GV2ME143
EAN: 3389110346459
GTIN: 3389110346459
MPN: GV2ME143
Loyalty points:
36
Price range: £ 59.89 - £ 93.78 Excl. VAT
Categories
Features
|
Depth
|
78.2 mm
|
|
Width
|
44.5 mm
|
|
Height
|
101 mm
|
|
Power loss
|
2.5 W
|
|
Number of poles
|
3
|
|
Device construction
|
Complete device in housing
|
|
Switch off technique
|
Thermomagnetic
|
|
Phase failure sensitive
|
TRUE
|
|
Rated operating voltage
|
|
|
Type of control element
|
Push button
|
|
Degree of protection (IP)
|
IP20
|
|
Rated permanent current Iu
|
10 A
|
|
Overload release current setting
|
|
|
With integrated auxiliary switch
|
FALSE
|
|
With thermal overload protection
|
TRUE
|
|
Rated operation power at AC-3, 230 V
|
2.2 kW
|
|
Rated operation power at AC-3, 400 V
|
4 kW
|
|
With integrated under voltage release
|
FALSE
|
|
Type of electrical connection of main circuit
|
Spring clamp connection
|
|
Adjustment range undelayed short-circuit release
|
|
|
Rated short-circuit breaking capacity Icu at 400 V, AC
|
100 kA
|
