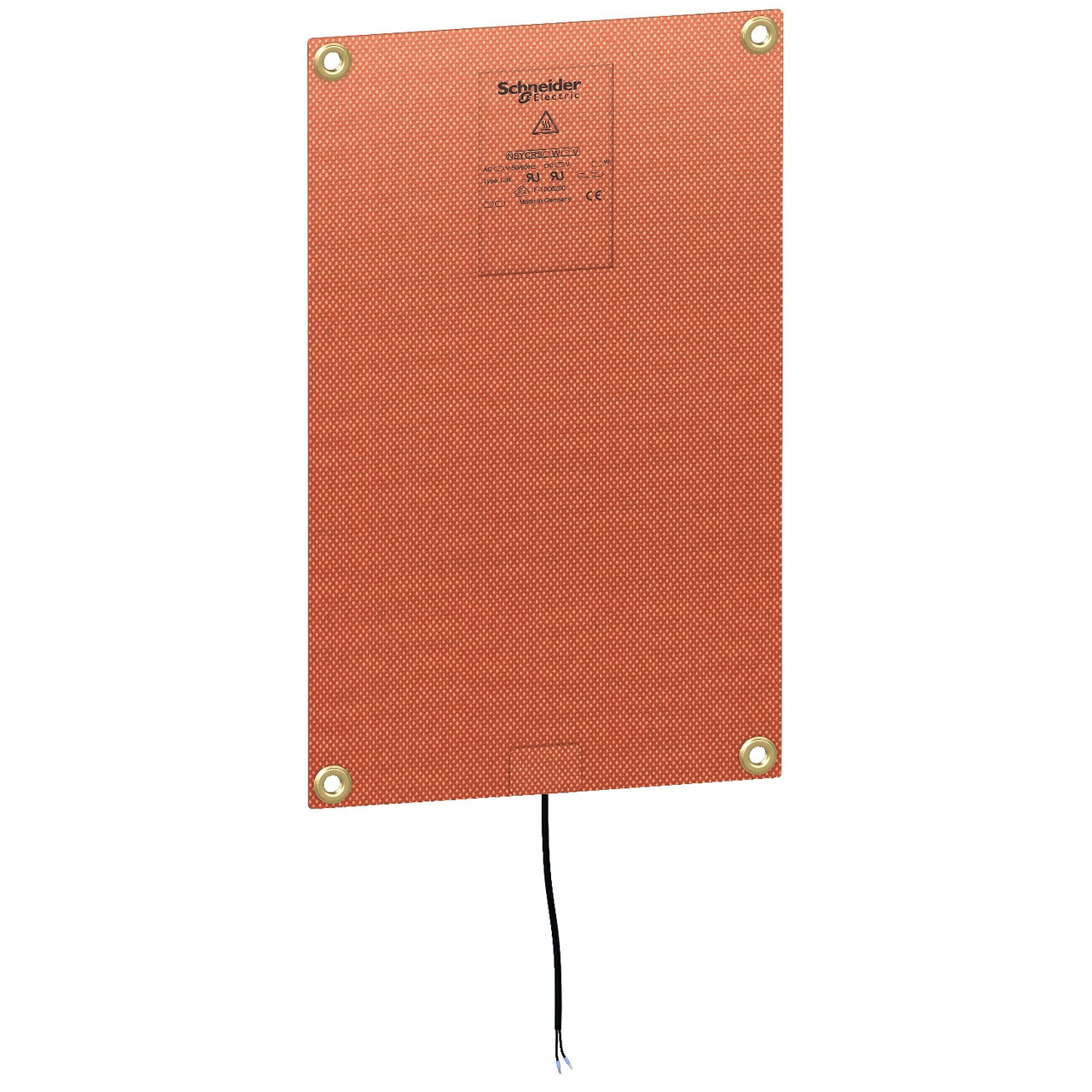

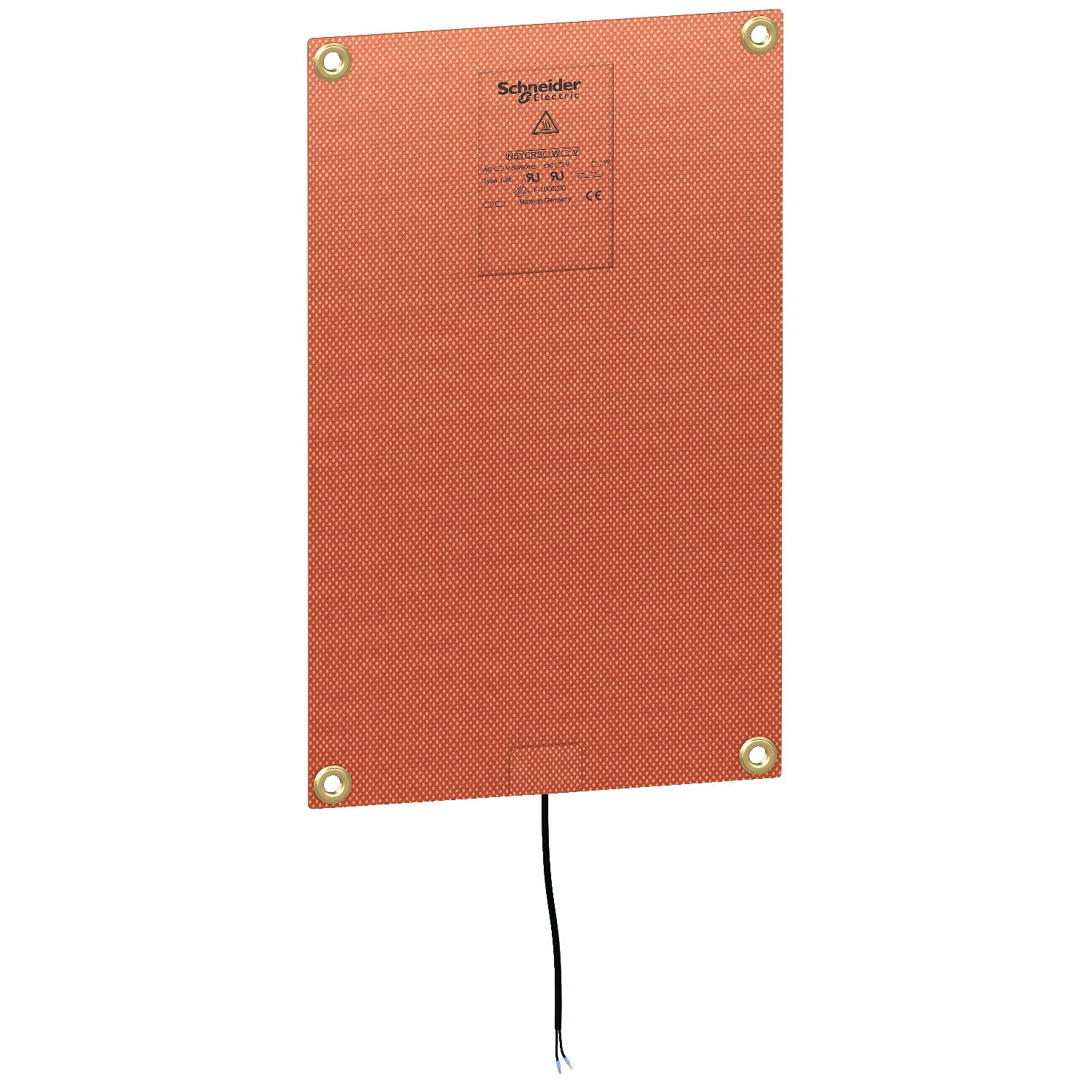

Climasys Ultra thin resistance heater low starting current 50W 240V 200x320mm

Link copied
SKU
EAN
GTIN
MPN

Climasys Ultra thin resistance heater low starting current 50W 240V 200x320mm by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £257.48 to £260.05 excl. VAT. Voltimum+ members earn 26 points per unit.

"Ultra thin resistance heater 50W, 240 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product is made from silicone rubber" "Fixing by 4 screws in vertical and horizontal operating position" The product width is 320mm, height is 200mm and depth is 1,6mm The temperature setting range is -40-70 °C The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit The cable 2 m length is used for electrical connection Ambient air temperature for operation -60-70 °C "This product is qualified as a green premium, with minimal use of hazardous substances"

Voltimum+ Loyalty Programme Loyalty points: 26

Price range: £ 257.48 - £ 260.05 Excl. VAT

Specifications

Depth 1.6 mm
Width 320 mm
Height 200 mm
With fan no
Rated power 50 W
Voltage type AC
Operating voltage DC
Degree of protection (IP) IP20
Operating voltage AC 60 Hz
With room temperature controller no
