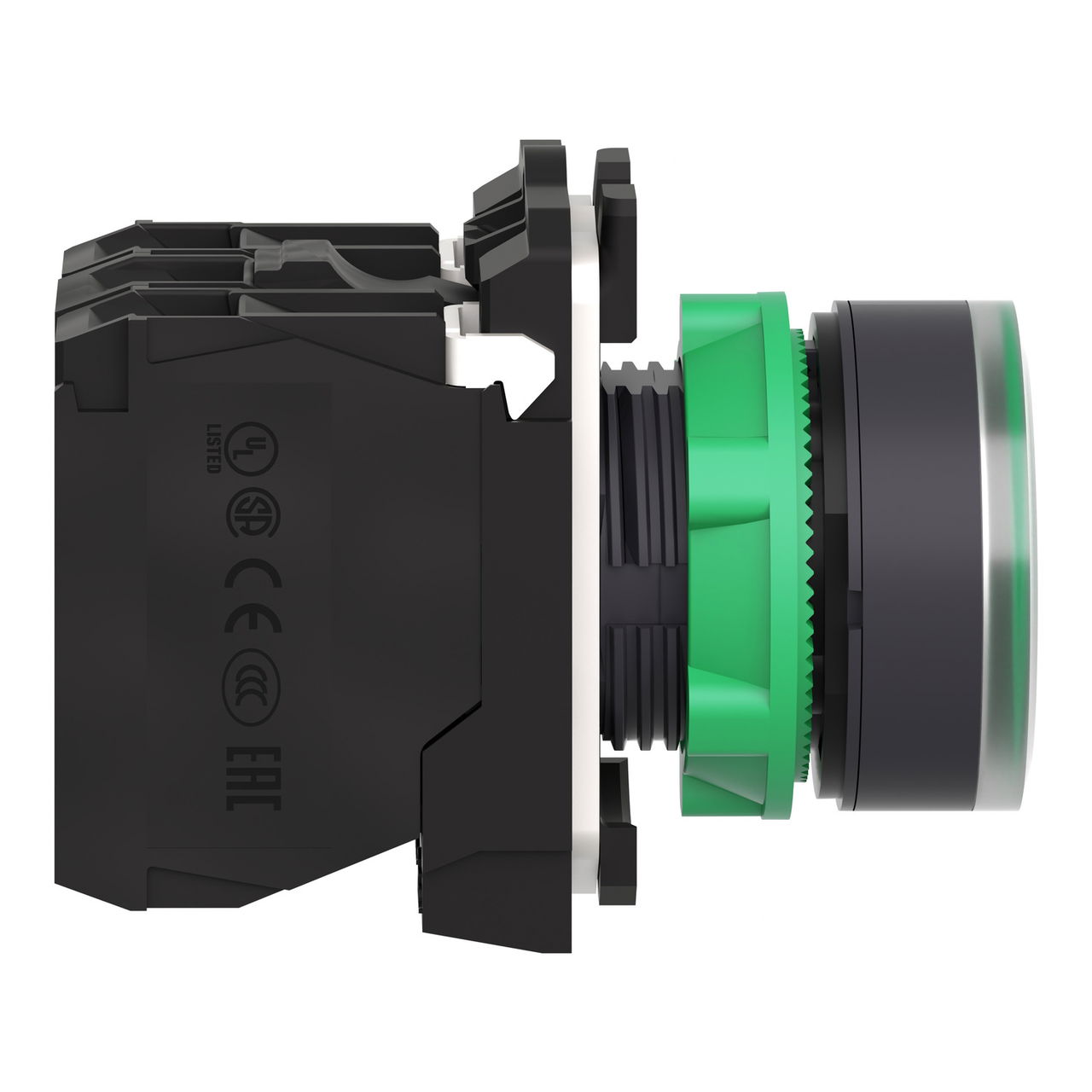

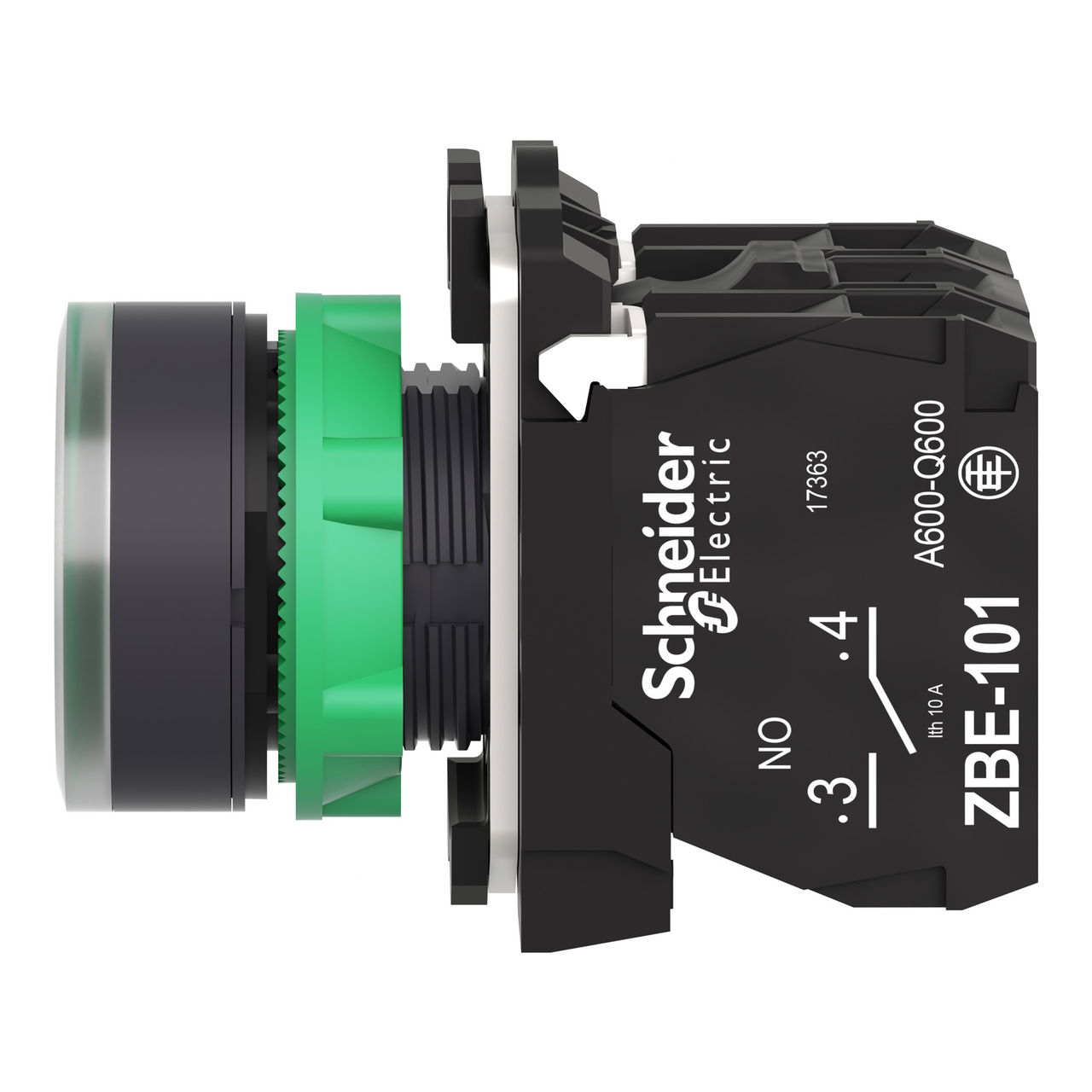

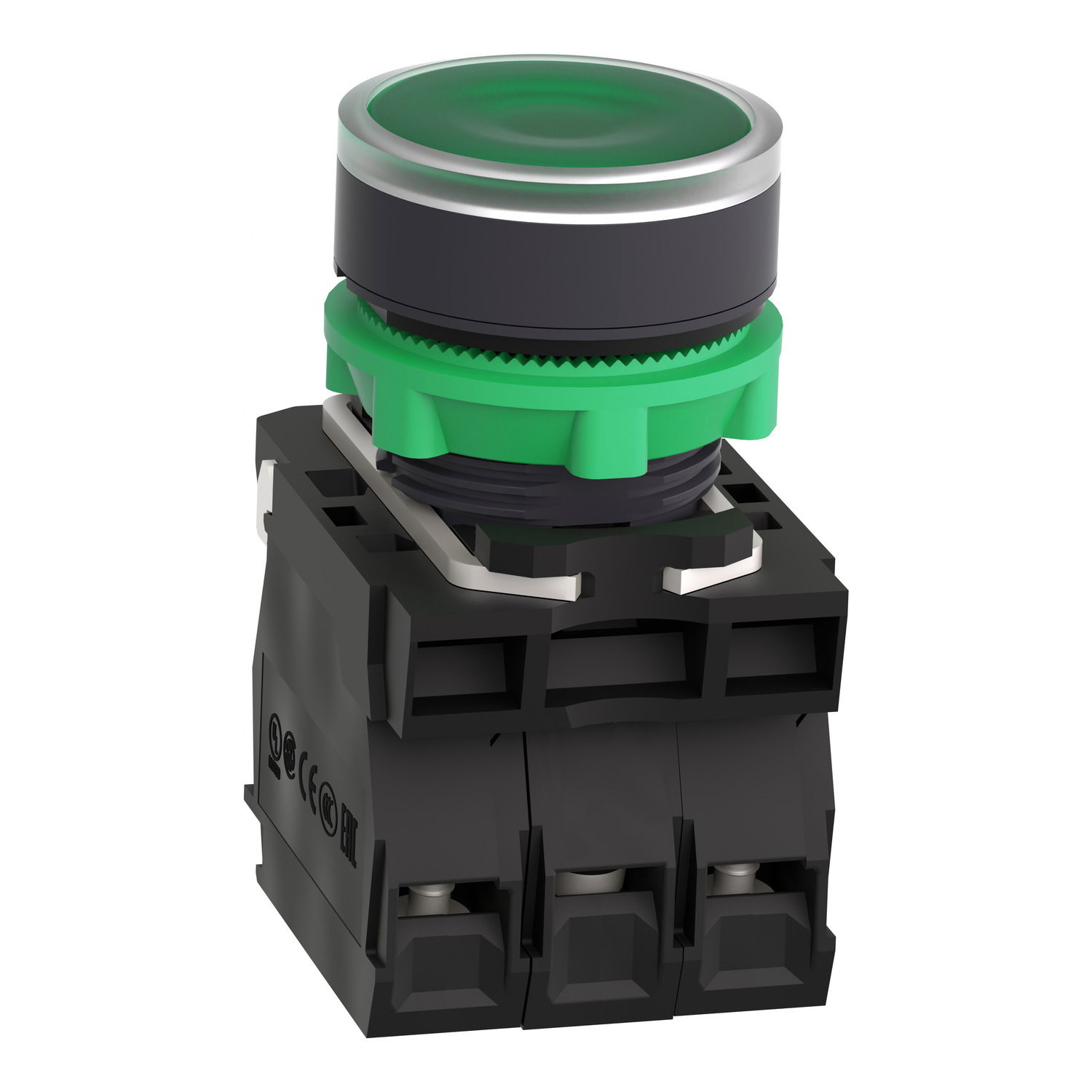

Illuminated push button, Harmony XB5, plastic, green flush, 22mm, universal LED, plain lens, 2NO, 24V AC DC

Link copied
SKU
EAN
GTIN
MPN

Illuminated push button, Harmony XB5, plastic, green flush, 22mm, universal LED, plain lens, 2NO, 24V AC DC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £33.24 excl. VAT. Voltimum+ members earn 4 points per unit.

This Harmony XB5 modular illuminated push button operates with a spring return / impulse mechanism and It has a plastic bezel, a green flush cap, unmarked, and is supplied with an integral LED. It features 2 NO slow break contacts and screw-clamp terminals connection type. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 56g. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Voltimum+ Loyalty Programme Loyalty points: 4

Price: £ 33.24 Excl. VAT

Specifications

Transparent yes
Colour button Green
Hole diameter 22.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button Flat
With front ring yes
Material front ring Plastic
Suitable for lighting yes
Degree of protection (IP) IP66
Number of command positions 1
Type of electric connection Screw connection
Number of contacts as normally open contact 2
