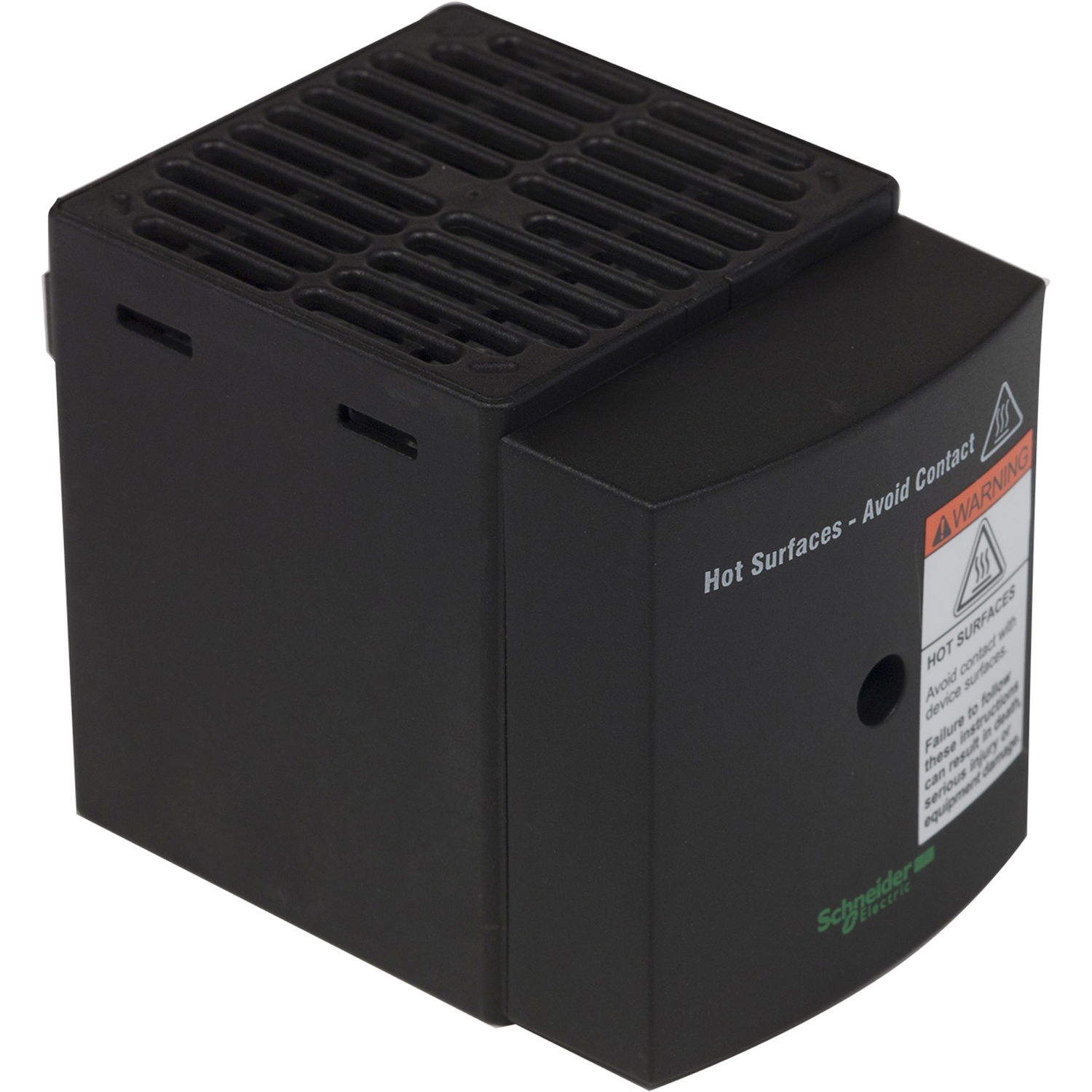

ClimaSys PTC heating resistance 177W 230V with ventilator insulate

Link copied
SKU
EAN
GTIN
MPN

ClimaSys PTC heating resistance 177W 230V with ventilator insulate by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £171.74 to £173.46 excl. VAT. Voltimum+ members earn 21 points per unit.

"Resistance heater with fan 177W, 230 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product has extruded aluminium body and plastic cover" "Fixing by clips in vertical operating position" The product width is 65mm, height is 75mm and depth is 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit The 2 screw terminals 2,5 mm² are used for electrical connection Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with VDE and UL certification Conforms class II electrical insulation class "This product is qualified as a green premium, with minimal use of hazardous substances"

Voltimum+ Loyalty Programme Loyalty points: 21

Price range: £ 171.74 - £ 173.46 Excl. VAT

Specifications

Depth 90 mm
Width 65 mm
Height 75 mm
With fan yes
Rated power 177 W
Voltage type AC
Operating voltage DC
Degree of protection (IP) IP20
Operating voltage AC 60 Hz
With room temperature controller no

Documents

Declaration of Conformity (Sustainability)

NSYCR170W230VVC REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Instruction sheet

INSULATED HEATERS INSTRUCTIONS

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYCR170W230VVC EU RoHS Directive

Open

Declaration of conformity

DoC_UE_Climasys_Heaters

Open

Environmental Disclosure

ClimaSys Resistance heater

Open
