Linect® T-connector 4-pole Cod. A white

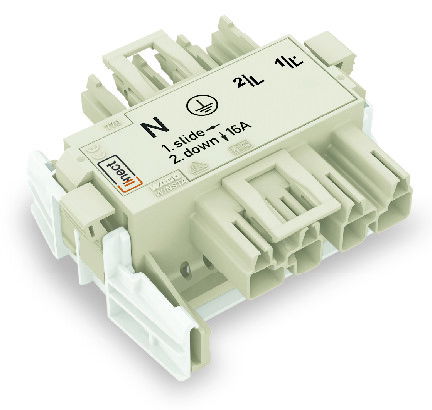

Name: Linect® T-connector 4-pole Cod. A white
Brand: Wago
SKU: 770-6224
Price: 179.25 GBP
Availability: OutOfStock

Linect® T-connector; 4-pole; Cod. A; 1 input; 2 outputs; white

Product identifiers

SKU: 770-6224

EAN: 4050821102960

GTIN: 4050821102960

MPN: 770-6224

Loyalty points: 4 (x25)

Price: £ 179.25 Excl. VAT

Specifications

Model	-

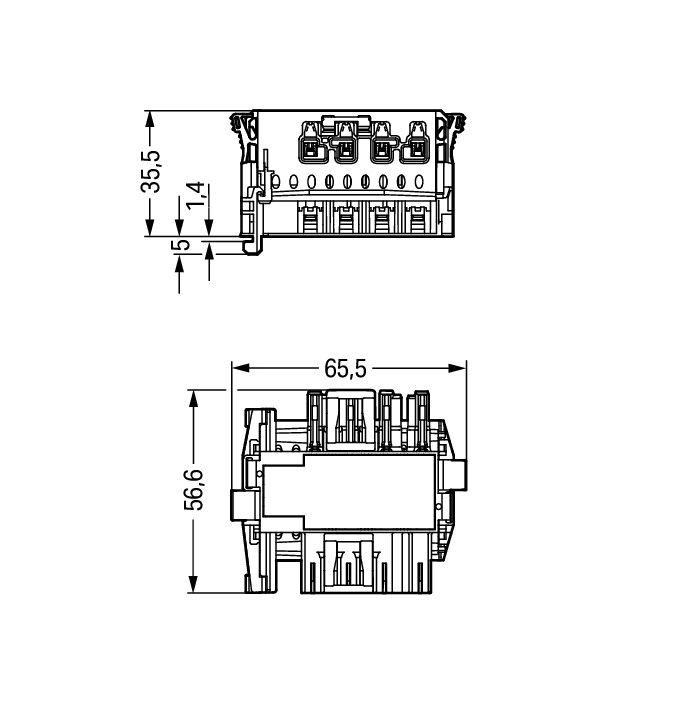

Width	65.5
Height	40.5
Length	56.6
Fire load	0.22583
Halogen free	yes
Rated current	25
Rated voltage	400
Housing colour	White
Connection type	-
Number of poles	4
Type of locking	Integrated in plug-in connector
Built-in version	Built-in part/plug-in connection
Contact material	CuSn
Housing material	Polyamide (PA)
Insert direction	Straight
Pollution degree	3
Mechanical coding	yes
Pole codification	Other
Rated surge voltage	6
Angle of inclination
Length soldering pin	-
Continuity resistance	1
Connection size thread	No thread connection
Wall thickness housing	-
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Number of connections per pole	2
RAL-number coding/contact insert	-
Colour of the separate adapter piece	-
Connection cross section (solid-core)
Connection cross section (fine-strand)
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
