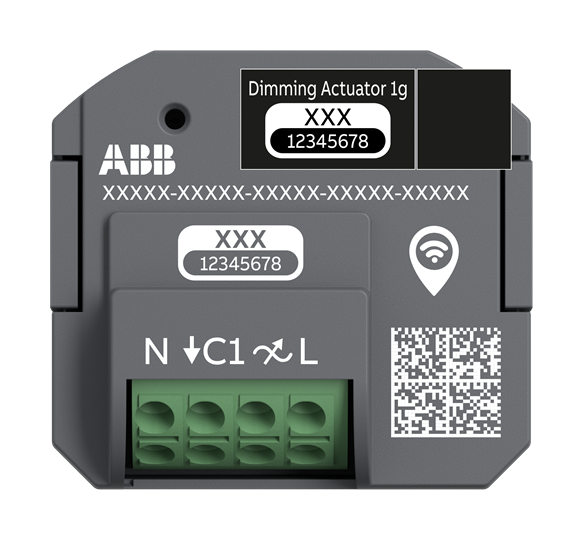

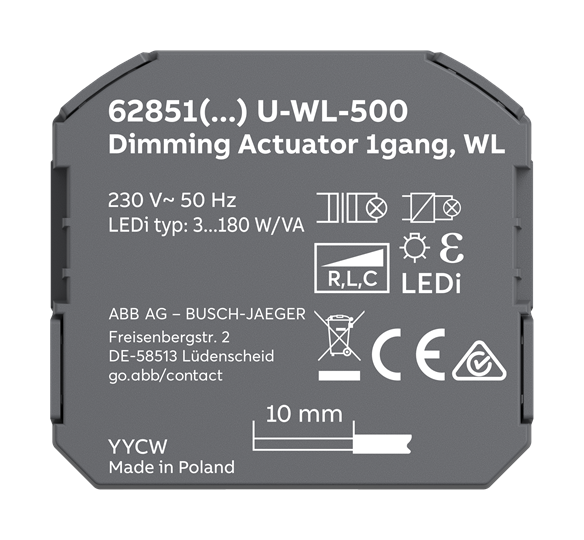

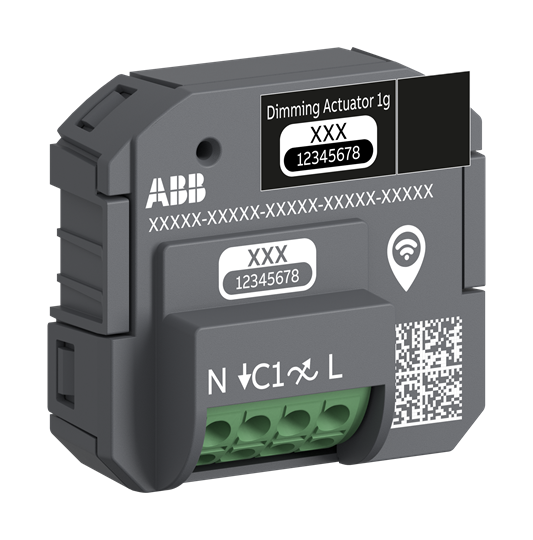

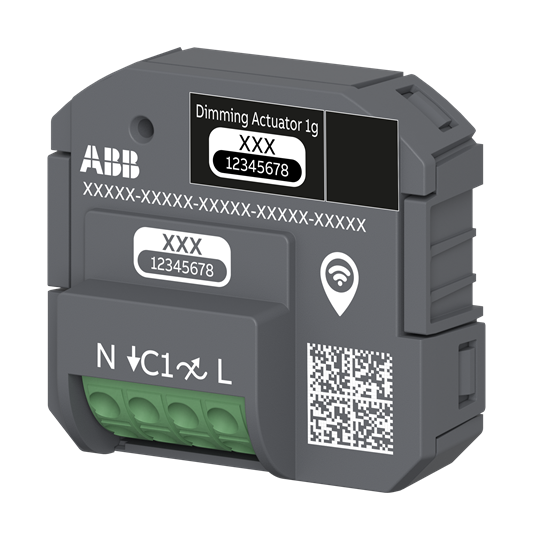

Dimming Actuator 230 V AC free@home wireless

Link copied
SKU
EAN
GTIN
MPN
Flush mounted actuator wireless for switching and dimming of lighting systems. Operation in ABB-flexTronics® wireless (device control) or networking of up to 32 devices (room con-trol). Integration in ABB-free@home® wireless with System Access Point up to 150 devices. 2-wire connection (neutral conductor not required). Neutral conductor optionally connectable (recommended for the connection of low loads < 3 W/VA). With plug clamps. With extension input. Operation also possible via conventional push buttons. Remote operation via Bluetooth and smartphone/tablet app. Programming via Bluetooth with the ABB-free@home® Next App or the web interface of the System Access Point. Optimised for dimming of retrofit LED lamps (LEDi). For dimmable Retrofit-LEDs (LEDi). For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers. For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps. Mix operaton of LEDi with conventional loads possible. With manually adjustable operating mode: trailing / leading edge control. With adjustable minimum brightness. Low-noise level by MOSFET transistors. With electronic short-circuit protection. With electronic overload protection.

Voltimum+ Loyalty Programme Loyalty points: 9

Price: £ 90.14 Excl. VAT

Specifications

Model -
Voltage
Frequency
Output power
Type of load Universal and LED Retrofit
Bus system KNX no
Bus system LON no
Mounting method Flush-mounted
Number of outputs 1
Bus system Powernet no
With bus connection yes
Power boost suitable -
Compatible with Casambi -
Degree of protection (IP) IP20
Bus system radio frequency no
Local operation/hand operation -
Width in number of modular spacings -

Documents

Deeplink product page

Open

Deeplink REACH

All Articles_REACH_EN_25-2_2CKA309999E9999.pdf

Open

Instructions for use

62851_U-WL-xxx_MBA-Collection_XX_V1-0_2CKA009973B5646_REV_A.pdf

Open

Product data sheet

Open

Declaration RoHS

62851 U-WL-500_ROHS_XX_V01_2CKA200000E9683.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

62851 U-WL-500_CE_XX_V01_2CKA100000E5444.pdf

Open

Declaration EPD (Environmental Product Declaration)

EPD_ABBG-00493-V01.01-EN.pdf

Open
