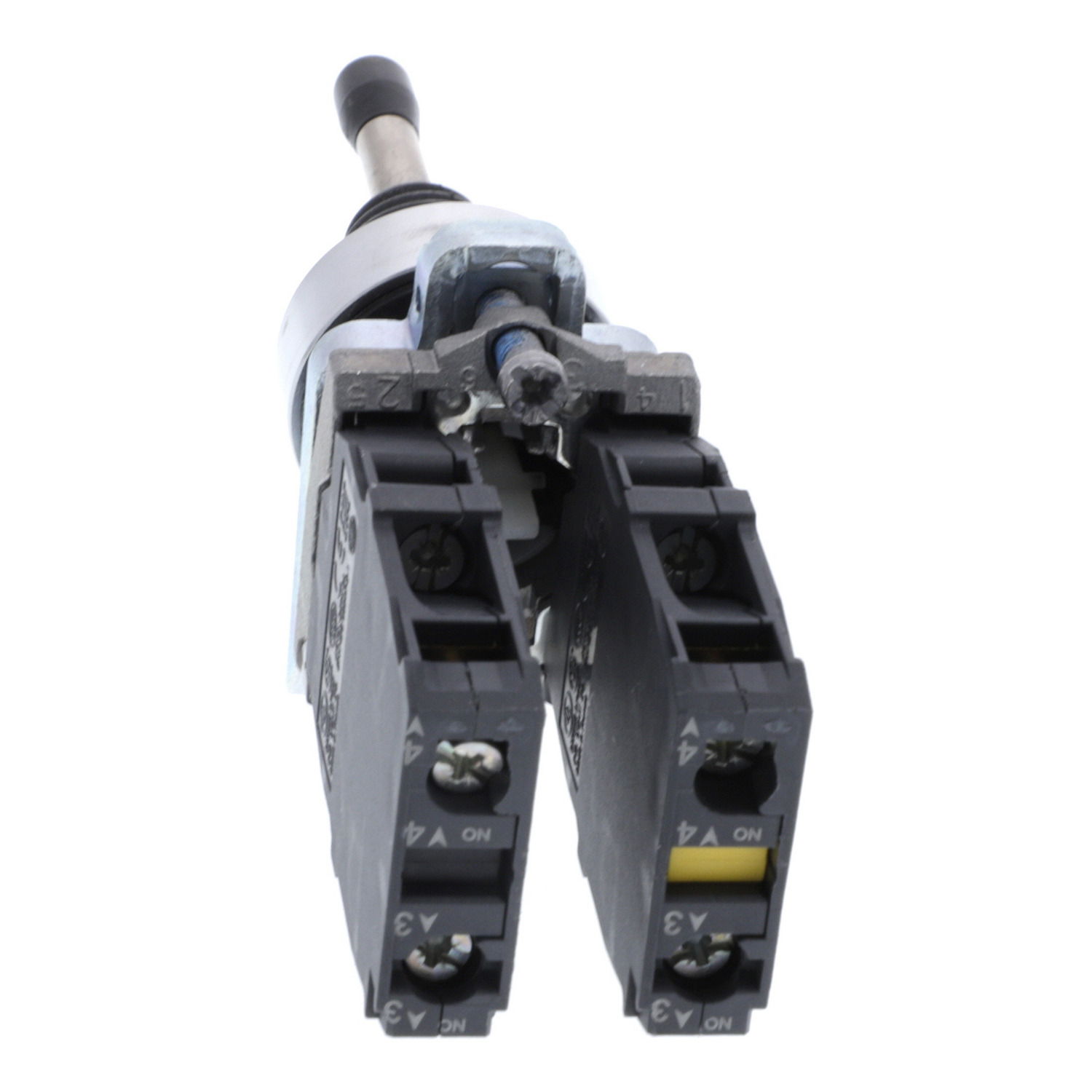

Joystick controller plastic, Ø22, 4 directions, stay put, 1 NO

Link copied
SKU
EAN
GTIN
MPN

Joystick controller plastic, Ø22, 4 directions, stay put, 1 NO by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £108.22 to £109.30 excl. VAT. Voltimum+ members earn 15 points per unit.

This Harmony XB4, joystick controller operates with 2-direction stay-put mechanism. It has 2 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.

Voltimum+ Loyalty Programme Loyalty points: 15

Price range: £ 108.22 - £ 109.30 Excl. VAT

Specifications

Coder no
With front ring yes
Joy stick length 54 mm
Colour front ring Chrome
Material front ring Metal
Locking in 0-position no
Degree of protection (IP) IP66
Number of switch positions 4
With retraction in 0-position no
Number of actuation directions 4
Rated operation current Ie at AC-21, 400 V 10 A
Number of normally open contacts per actuation direction 1

Documents

Declaration of Conformity (Sustainability)

XD4PA14 REACh Regulation

Open

Product data sheet

Open

Catalog

Discover the Harmony XB4 metal Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

XD4PA14 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

XD4 JOYSTICK CONTROLLER

Open

Circularity Profile

XD4 JOYSTICK CONTROLLER

Open
