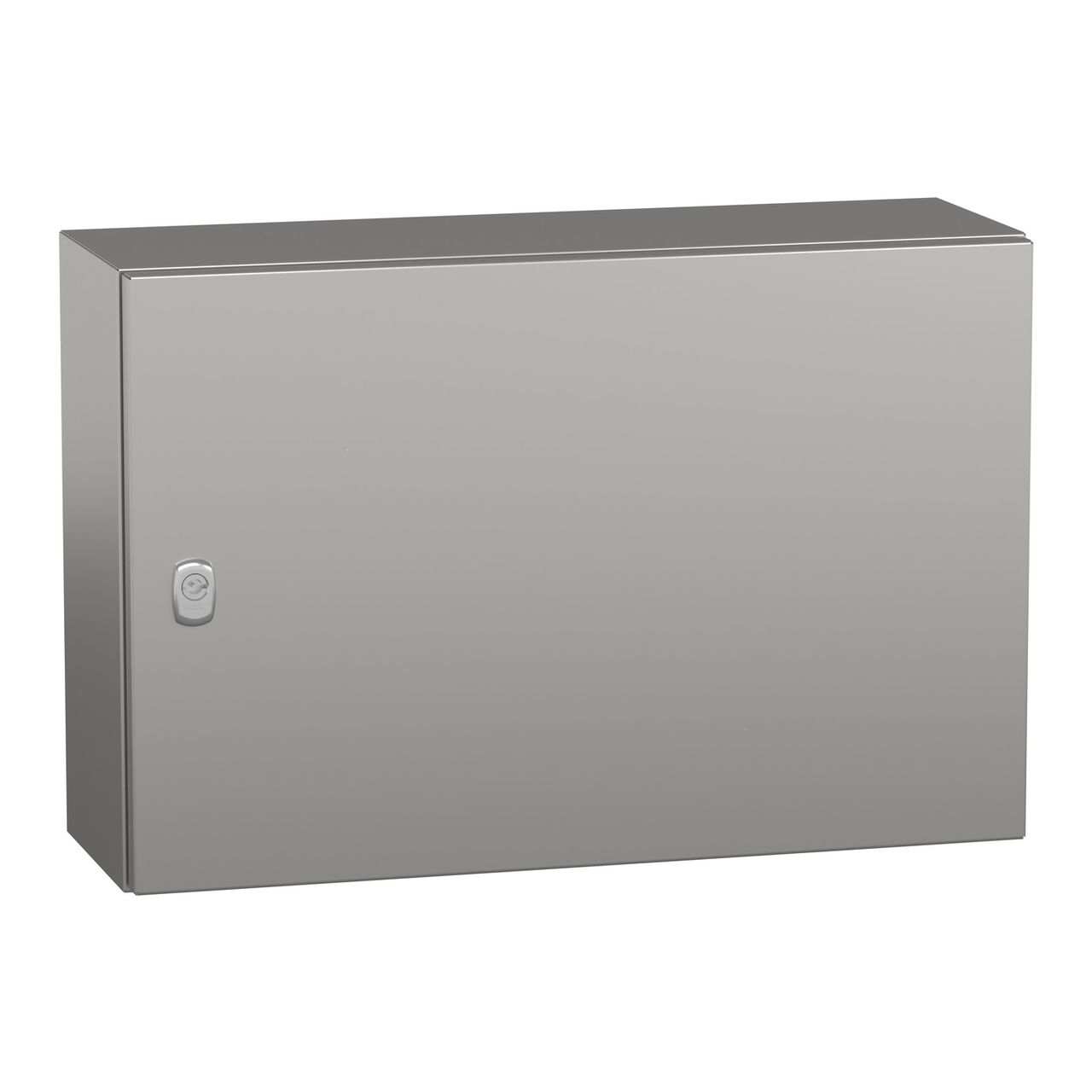

"PanelSet S3X stainless 304L, Scotch Brite® finish, H400xW600xD200 mm."

"PanelSet S3X stainless 304L, Scotch Brite® finish, H400xW600xD200 mm."

"PanelSet S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and resistance to corrosion" "It is certified CAN/CSA 22 and UL 508 type A, and has a nominal height, width and depth of 400mm, 600mm and 200mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish, and features a single piece body, cross-shaped structure and gutter shaped front rail" "The door has a reversible (120°) opening side and is secured with a 3mm double-bar lock" "The door can be removed for maintenance purposes" "The enclosure has an IK10 (IEC62262) rating for high impact and an IP66 (IEC60529) rating for high resistance to dust and water" "The net weight of the enclosure is 9,124kg"

Product identifiers

SKU: NSYS3X4620
EAN: 3606480155161
GTIN: 3606480155161
MPN: NSYS3X4620

Voltimum+ Loyalty Programme Loyalty points: 55

Price range: £ 380.79 - £ 410.20 Excl. VAT

Videos

How to video

Specifications

Depth 200 mm
Width 600 mm
Colour Stainless steel
Height 400 mm
Material Stainless steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Stainless steel 304 (V2A)
Surface finishing Other
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 12
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
