PM5100 Meter, without communication, up to 15th H, 1DO 33 alarms

Popularity Top 10%

Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales and basket transfers. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

PM5100 Meter, without communication, up to 15th H, 1DO 33 alarms

Link copied

SKU
EAN
GTIN
MPN

PM5100 Meter, without communication, up to 15th H, 1DO 33 alarms by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £199.18 to £298.72 excl. VAT. Voltimum+ members earn 35 points per unit.

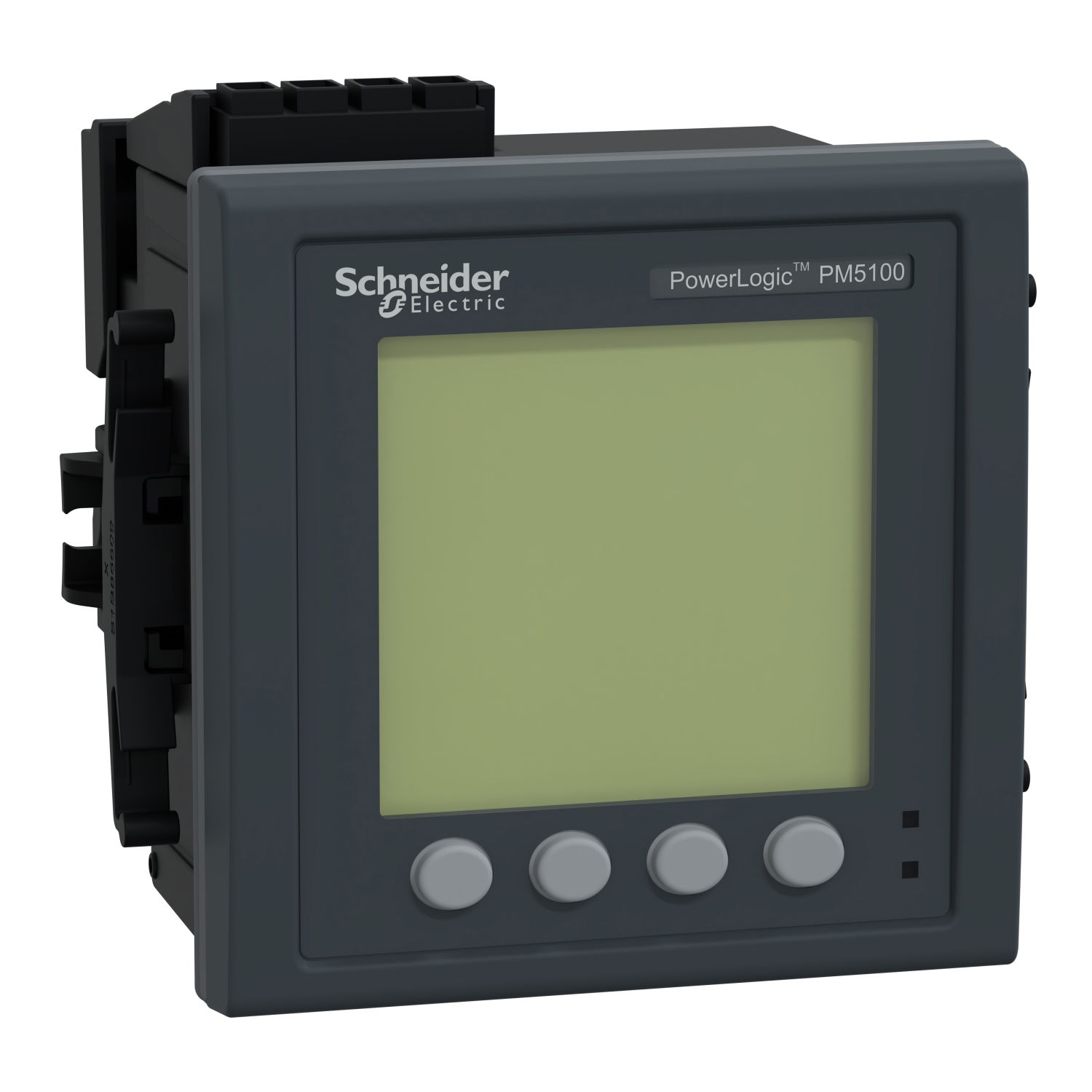

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication is pulse output only. The meter also has 33 configurable alarms. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 13.4 onces (380 g).

Loyalty points: 35

Price range: £ 199.18 - £ 298.72 Excl. VAT

ETIM group

Devices for distribution board-/surface mounting

Specifications

Depth	89 mm
Model	Measurement transformer
Width	112 mm
Height	101.2 mm
Display	LCD
Pole type	Three conductor/four conductor
Voltmeter	yes
Calibrated	no
Ampere meter	yes
Power factor	yes
Pulse output	Optical
Pulse counter	no
Apparent power	yes
Remote display	no
Frequency meter	yes
Mounting method	Front mounting
Supply voltage DC
Sampling frequency	6400 Hz
Max. current (Imax)	20 A
Nominal current (In)	5 A
Reactive power meter	yes
Step angle (cos phi)	yes
Suitable for RJ plug	no
Harmonics measurement	yes
Measured value memory	no
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
With firmware signature	no
Number of digital inputs	0
Number of analogue inputs	0
Number of digital outputs	1
Number of analogue outputs	0
With rotational speed meter	no
Display resolution (vertical)	128 px
Measurement type load profile	yes
Measuring range for frequency
Voltage type (supply voltage)	AC/DC
Number of Ethernet connections	0
Supporting protocol for Modbus	yes
With audit logging (audit log)	no
Display resolution (horizontal)	128 px
Supporting protocol for PROFIBUS	no
With communication interface KNX	no
Wth communication interface M-Bus	no
Effective power measurement device	yes
Supporting protocol for PROFINET IO	no
With communication interface RS-485	no
Number of current measurement inputs	6
Number of voltage measurement inputs	4
Degree of protection (IP), front side	Other
Supporting protocol for OPC UA PubSub	no
With Role Based Access Control (RBAC)	no
Web server with HTTPS transfer protocol	no
Supporting protocol for other bus systems	yes
Supporting protocol for IEC 61850 Ethernet	no
Connectable conductor cross section solid-core
With logging of security events (security event log)	yes
Accuracy class active energy according to IEC 62053-22	0.5S
Accuracy class reactive energy according to IEC 62053-23	Other
