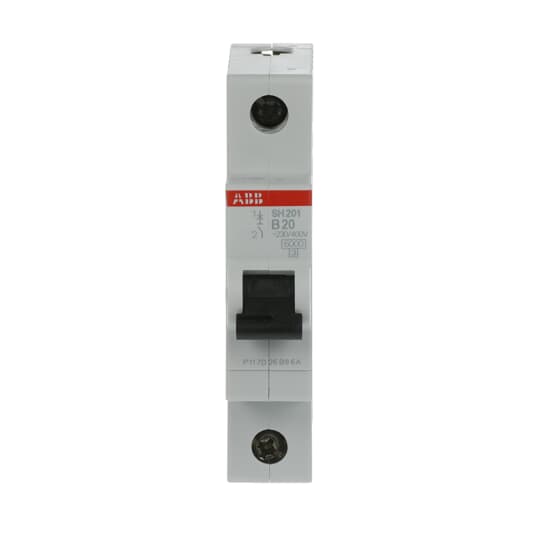

Miniature Circuit Breaker - SH200 - 1P - 20 A - B - (AC) 6 kA

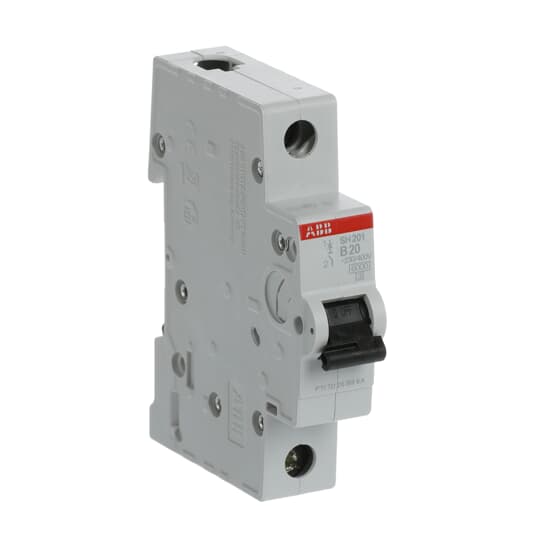

Miniature Circuit Breaker - SH200 - 1P - 20 A - B - (AC) 6 kA – Image 2 of 3

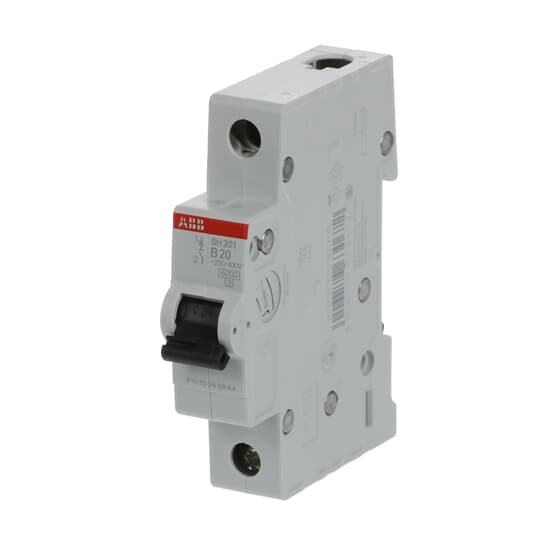

Miniature Circuit Breaker - SH200 - 1P - 20 A - B - (AC) 6 kA – Image 3 of 3

1 / 3

Miniature Circuit Breaker - SH200 - 1P - 20 A - B - (AC) 6 kA

Name: Miniature Circuit Breaker - SH200 - 1P - 20 A - B - (AC) 6 kA
Brand: ABB
SKU: 2CDS211001R0205
Availability: InStock

Miniature Circuit Breaker - SH200 - 1P - 20 A - B - (AC) 6 kA by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and RS Components. It is currently in stock at 1 of them. Trade prices range from £16.60 to £18.44 excl. VAT. Voltimum+ members earn 8 points per unit.

Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.

Product identifiers

SKU: 2CDS211001R0205

EAN: 4016779630672

GTIN: 4016779630672

MPN: SH201-B20

Loyalty points: 8

Price range: £ 16.60 - £ 18.44 Excl. VAT

Specifications

Frequency
Power loss	2.5
Voltage type	AC
Rated current	20
Rated voltage	230
Built-in depth	69
Explosion-proof	no
Pollution degree	2
Over voltage category	3
Current limiting class	3
Release characteristic	B
Number of poles (total)	1
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	no
Width in number of modular spacings	1
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
