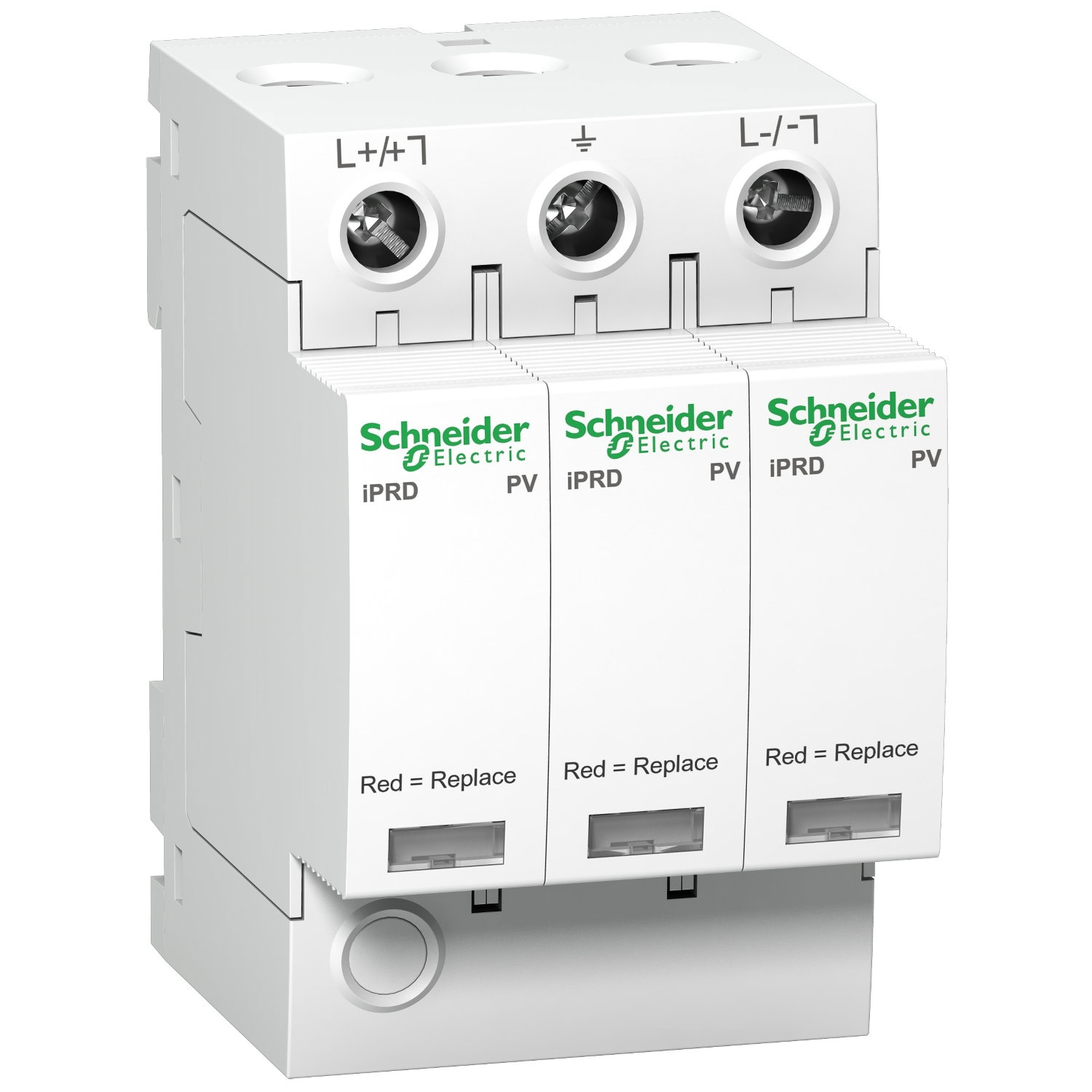

IPRD-DC 40r 1000PV modular surge arrester - 2P - 1000VDC - with remote transfert

This Acti9 iPRD-DC 40r direct current surge arresters protects 2P photovoltaic installations. It allows quick replacement of damaged cartridges. The Iscpv short circuit breaking capacity is 200A. The Itotal discharge current is 40kA. The In nominal discharge current is 15kA. This Type 2 device is recommended to protect against indirect lightning strikes. The surge arresters with r indication have remote transfer of the information Cartridge to be replaced. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The Uc maximum continuous operating voltage is 1000VDC. The Up protection level is 3.9kV in differential mode and in common mode. The dimensions are (W) 54mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 4. The weight is 400g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with UTE C 61470-51 and EN 50539-11:2013 standards.

Product identifiers

SKU: A9L40281
EAN: 3606480506673
GTIN: 3606480506673
MPN: A9L40281

Voltimum+ Loyalty Programme Loyalty points: 71

Price: £ 425.00 Excl. VAT

Categories

Switchgear & Circuit Protection Switchgear Low Voltage Switchgear

ETIM group

Earthing, lightning and surge protection

Specifications

Category type 2 yes
Max. PV-voltage 1000 V
Mounting method DIN rail (top hat rail) 35 mm
Construction size 3 modular spacing
Nominal voltage AC -
Nominal voltage DC 1000 V
Leakage-current free no
Integrated backup fuse no
System configuration IT no
System configuration TT no
Voltage protection level 3.9 kV
System configuration TN-C no
Max. continuous voltage AC -
System configuration other no
Voltage protection level L-N 3.9 kV
With remote signalling contact yes
Max. discharge surge current (8/20) 40 kA
Number of conductors (without earthing) 2
Max. conductor cross section flexible (fine-strand) 35 mm²
Integrated short-circuit protection selective to fuse gG -
Max. overcurrent protection device, parallel connection (fuse) -
