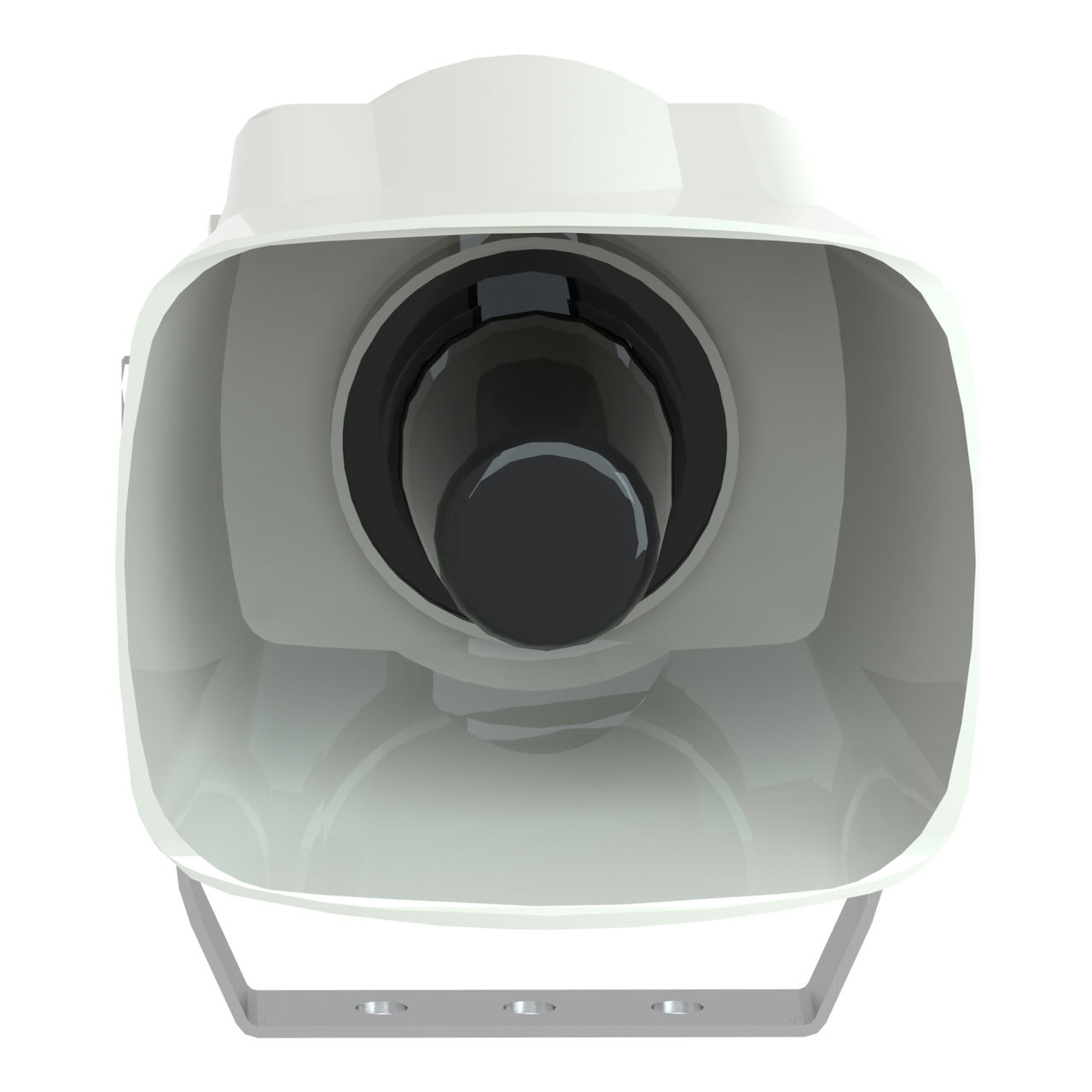

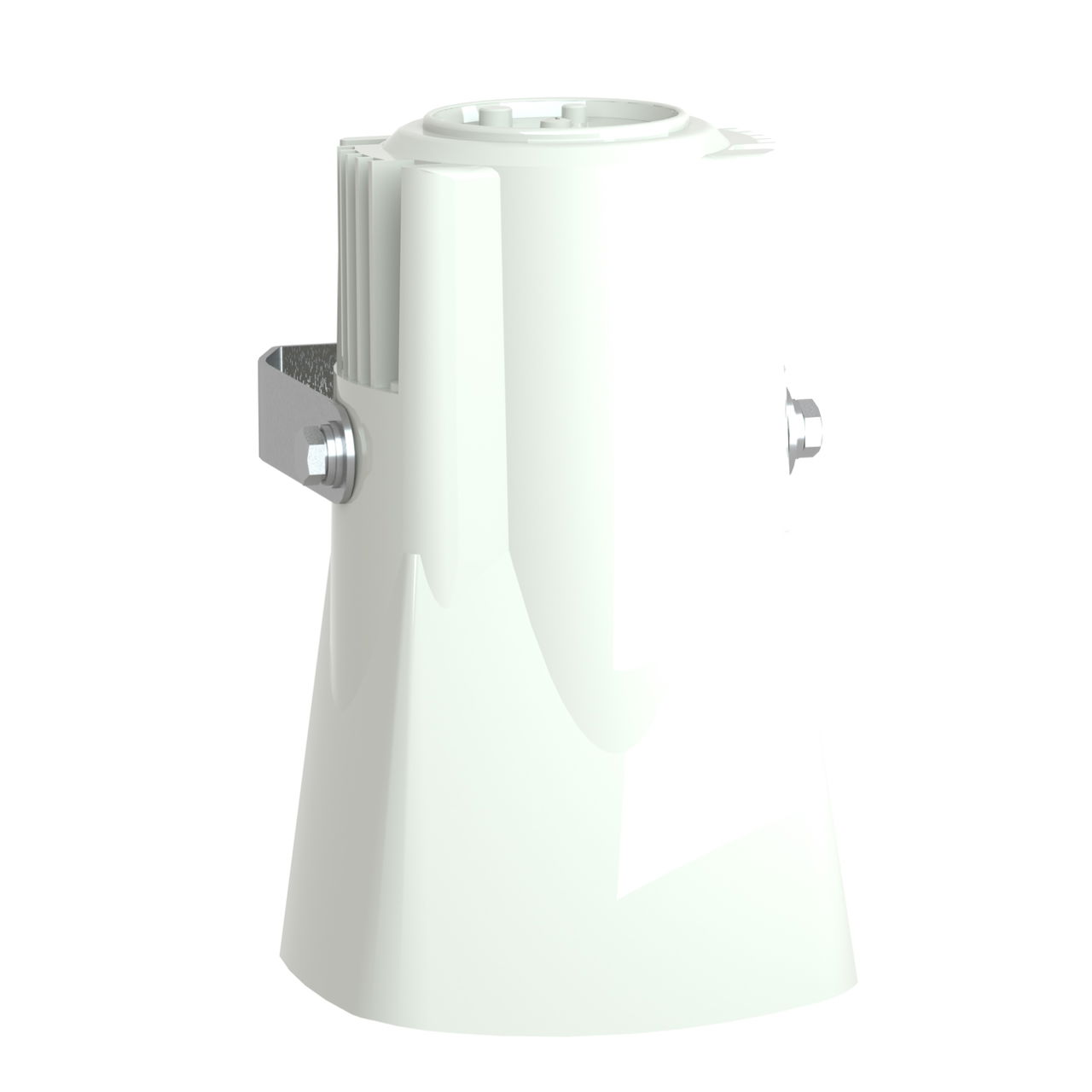

Multisound siren XVS - 43 tones - 0..105 dB - white - IP53

Link copied
SKU
EAN
GTIN
MPN

Multisound siren XVS - 43 tones - 0..105 dB - white - IP53 by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £330.86 to £344.23 excl. VAT. Voltimum+ members earn 46 points per unit.

This white multi-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 240V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone that can be adjusted from 0 to 105dB at 1m and 43 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels.

Voltimum+ Loyalty Programme Loyalty points: 46

Price range: £ 330.86 - £ 344.23 Excl. VAT

Specifications

Power -
Loudness 105 dB
Lamp type -
With contact yes
Housing colour White
Coverage volume -
For Ex-zone gas None
Mounting method Surface mounting
Type of current AC/DC
Colour of lamp hood -
Frequency sound signal
Electricity consumption 0.05 A
Type of acoustic signal Programmable
Suitable for wall mounting no
Compatible with Amazon Alexa no
Suitable for ceiling mounting no
Compatible with Google Assistant no

Documents

Declaration of Conformity (Sustainability)

XVS14MMW REACh Regulation

Open

Instruction sheet

XVS14... Multisound siren, Instruction Sheet

Open

Product data sheet

Open

Catalog

Harmony XVS Sirens and Electronic Alarms Catalog

Open

Declaration of Conformity (Sustainability)

XVS14MMW EU RoHS Directive

Open

Declaration of conformity

Manufacturer UK DOC XVSA XVSV XVS10 XVS14 XVS72 XVS96

Open

Declaration of conformity

Manufacturer UK DOC XVSA XVSV XVS10 XVS14 XVS72 XVS96

Open

Declaration of conformity

Manufacturer UK DOC XVSA XVSV XVS10 XVS14 XVS72 XVS96

Open
