Schneider Electric

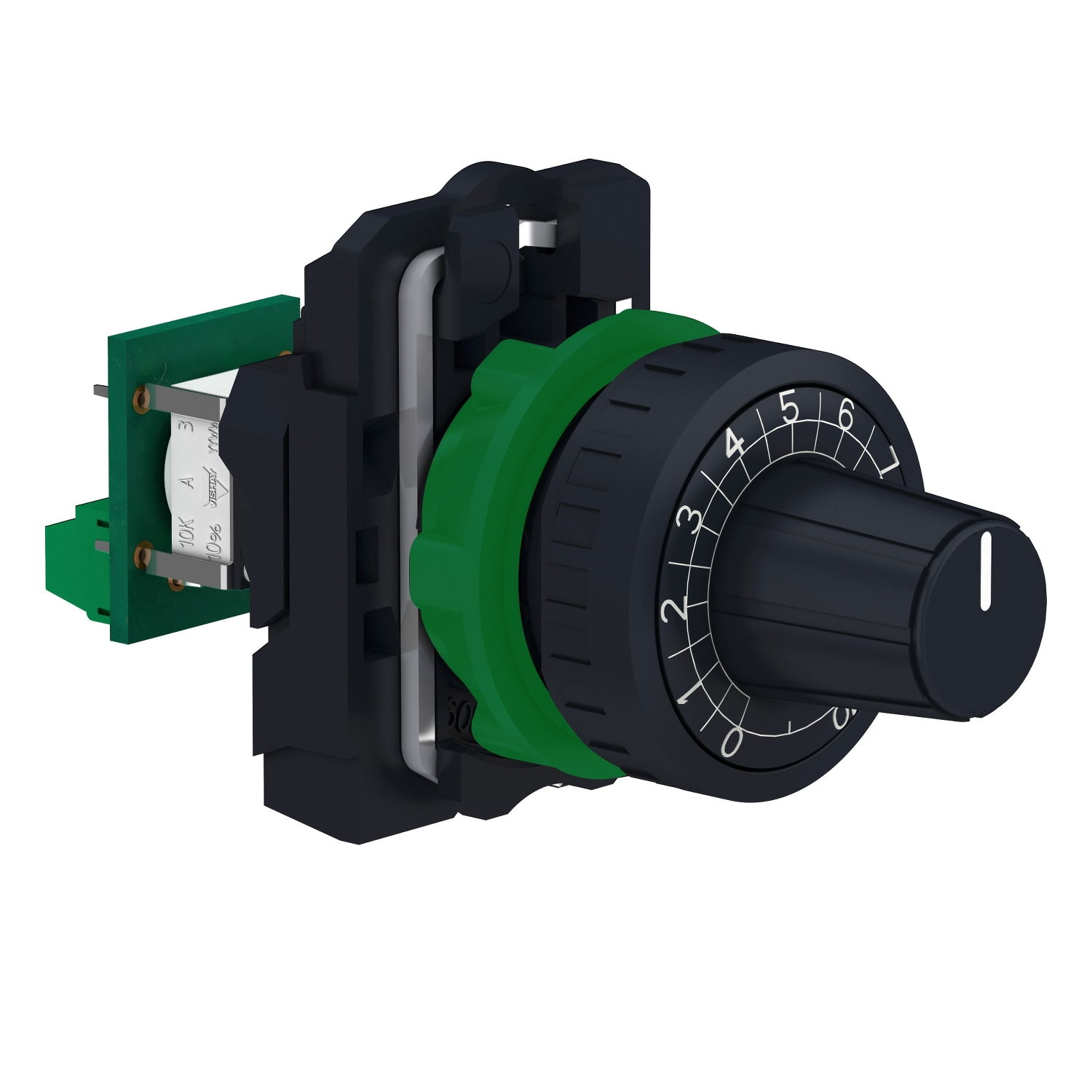

Complete potentiometer, plastic, Ø22, 100K

Complete potentiometer, plastic, Ø22, 100K by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and RS Components. It is currently in stock at 1 of them. Trade prices range from £98.91 to £99.90 excl. VAT. Voltimum+ members earn 12 points per unit.

This Harmony XB5, 22mm diameter potentiometer has a resistance of 100kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

Product identifiers

SKU: XB5AD912R100K
EAN: 3606480985096
GTIN: 3606480985096
MPN: XB5AD912R100K

Voltimum+ Loyalty Programme Loyalty points: 12

Price range: £ 98.91 - £ 99.90 Excl. VAT

Categories

Electronic Components Resistors

ETIM group

Low-voltage industrial components

Specifications

Resistance 100000 Ohm
Hole diameter 22.5 mm
Power consumption 1 W
Number of revolutions
Degree of protection (IP) IP66
Degree of protection (NEMA) 4X
Type of electric connection Other
