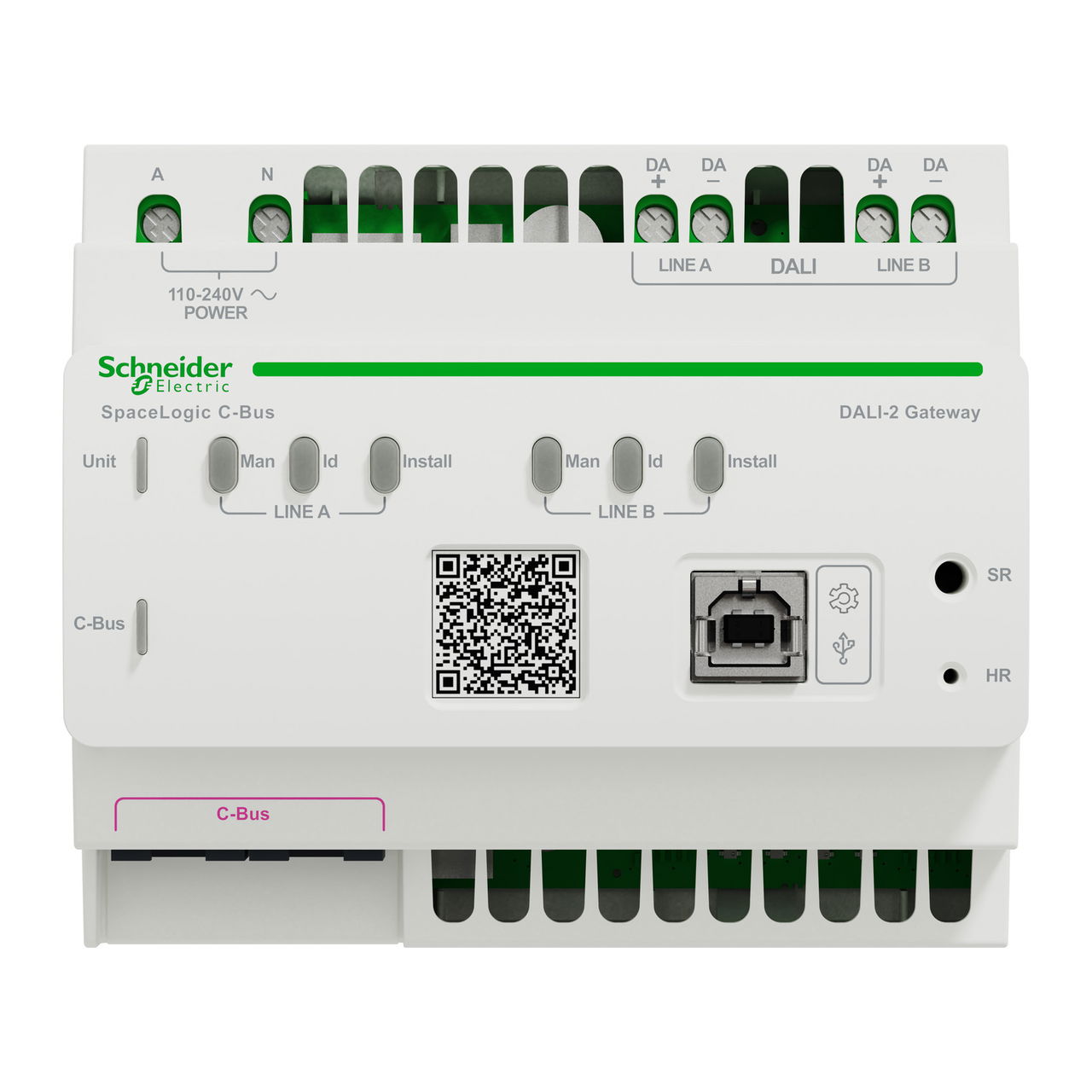

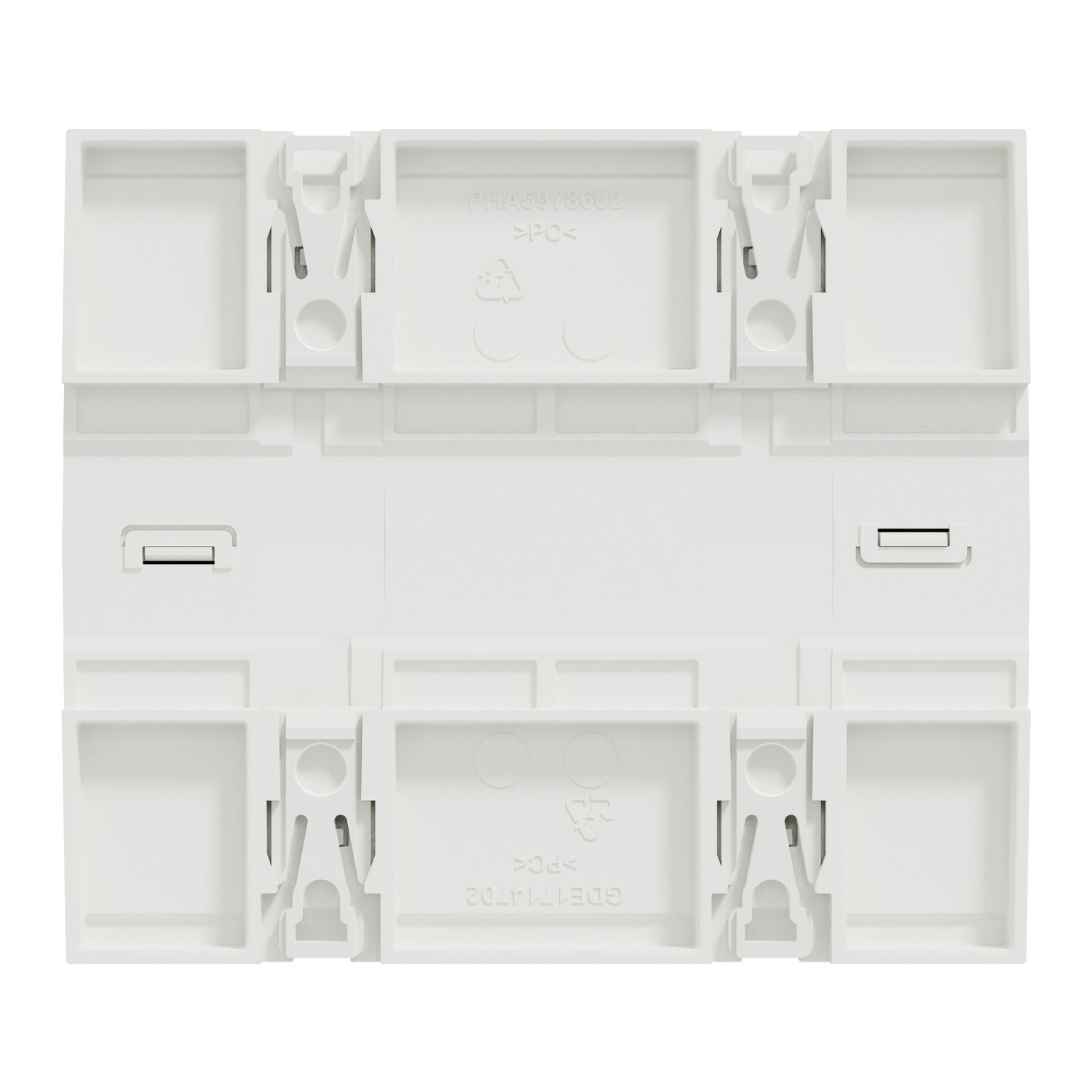

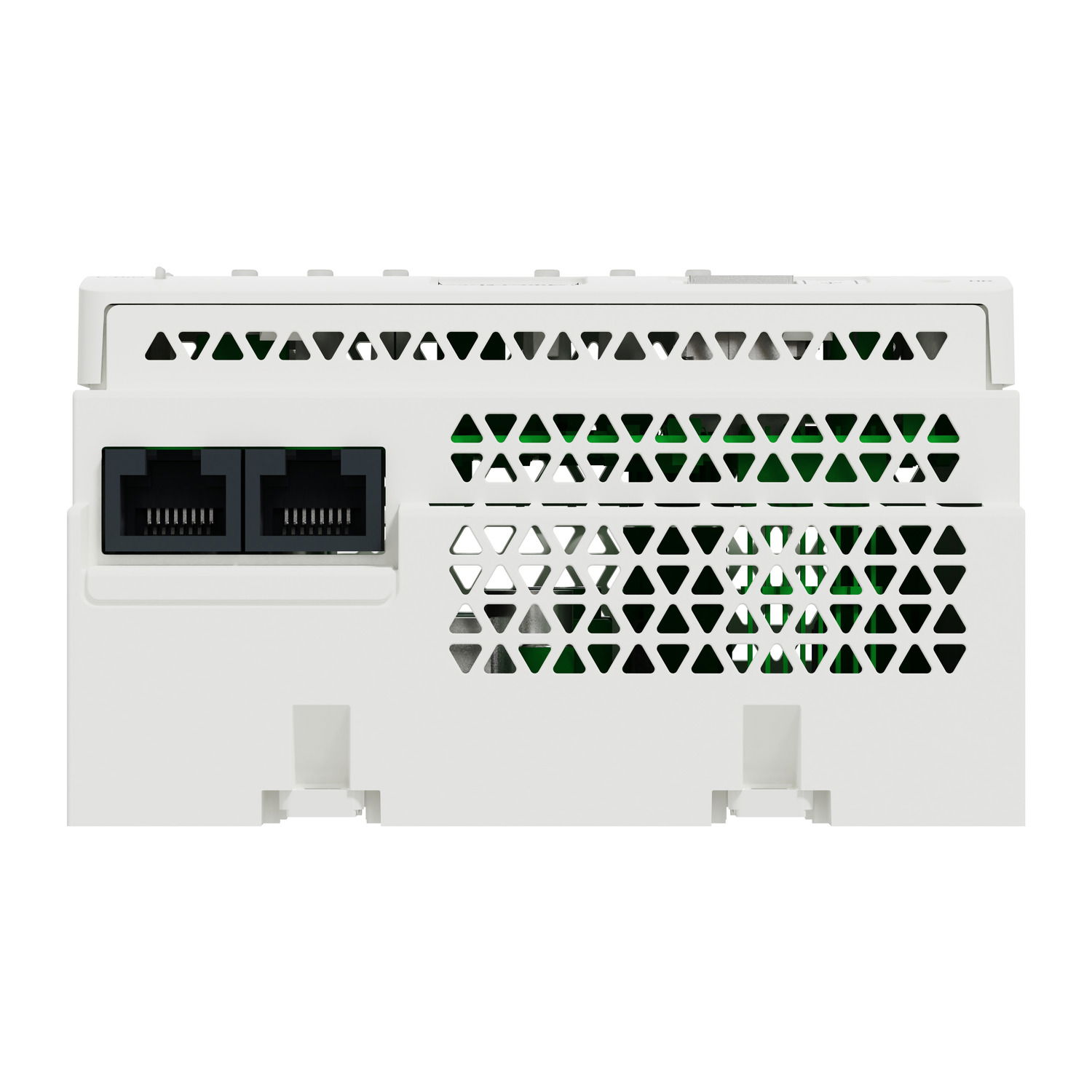

DALI-2 Gateway, SpaceLogic C-Bus, 2 DALI lines, dual independent advanced DALI bus power supplies

Link copied
SKU
EAN
GTIN
MPN
The SpaceLogic C-Bus DALI-2 Gateway is an interface that allows controlling, managing and monitoring of DALI Lighting and Emergency Lighting devices. It allows to configure and commission DALI Lighting and Emergency Lighting devices in conjunction with C-Bus units It is a DALI-2 certified multi-master application controller. Has dual isolated DALI lines with independent “integrated advanced bus power supplies”, that allows full DALI line supply current for 64 x 2 = 128 ECGs. Supports full functionality of DALI device types DT0, DT1, DT6. Enables comprehensive reporting on DALI devices and lines status and failures over C-Bus reporting feature. Has compact size 6M width on DIN rail. Allows seamless push-button dimming of DALI lighting from C-Bus (single button dimmer). C-Bus and DALI line status and fault indications with the buttons and indicators positioned in front of the gateway. Remote maintenance of DALI anytime from anywhere via accessing C-Bus system remotely. Warn before off functionality indicates the lights are about to turn off by visual warning. Allows daylight harvesting. Allows switching, dimming for individual devices, groups, and broadcast addressing modes and flexible scene triggering via DALI group and broadcast addressing. 16 scenes by DALI broadcast and 16 scenes by 16 groups via C-Bus. 16 Virtual groups along with the 16 native DALI groups. The 2-way mapping between DALI and C-Bus. Has guaranteed supply current 230 mA per line and maximum supply current 250 mA per line, no other power supplies allowed. Allows emergency lighting testing, scheduling of testing, reporting and automated emailing of the reports. Configurable C-Bus Remote Override operation.

Voltimum+ Loyalty Programme Loyalty points: 1

Specifications

Model Light system interface/DALI
Protocol Other
Updateable yes
Web-Server no
IR interface no
Voltage type -
Visualization no
Bus system KNX no
Mounting method DRA (DIN-rail adapter)
Operating voltage
Power consumption -
Provider dependent yes
With LED indication yes
Degree of protection (IP) -
Radio frequency bidirectional no
Bus system KNX-RF (Radio Frequency) no

Documents

Declaration of Conformity (Sustainability)

5502CDGP230 REACh Regulation

Open

Quick start guide

SpaceLogic C-Bus Commission Create Application Items Quick Start Guide V2.0

Open

User guide

C-Bus Home Gate Release Notes V4.15.5

Open

Instruction sheet

SpaceLogic C-Bus Dali Gateway Quick Start Guide

Open

Product data sheet

Open

Brochure

998-20872742_SpaceLogic C-Bus Commercial Brochure

Open

Declaration of Conformity (Sustainability)

5502CDGP230 EU RoHS Directive

Open

Declaration of conformity

Cyber Security Law Statement of Compliance - C-Bus Devices

Open
