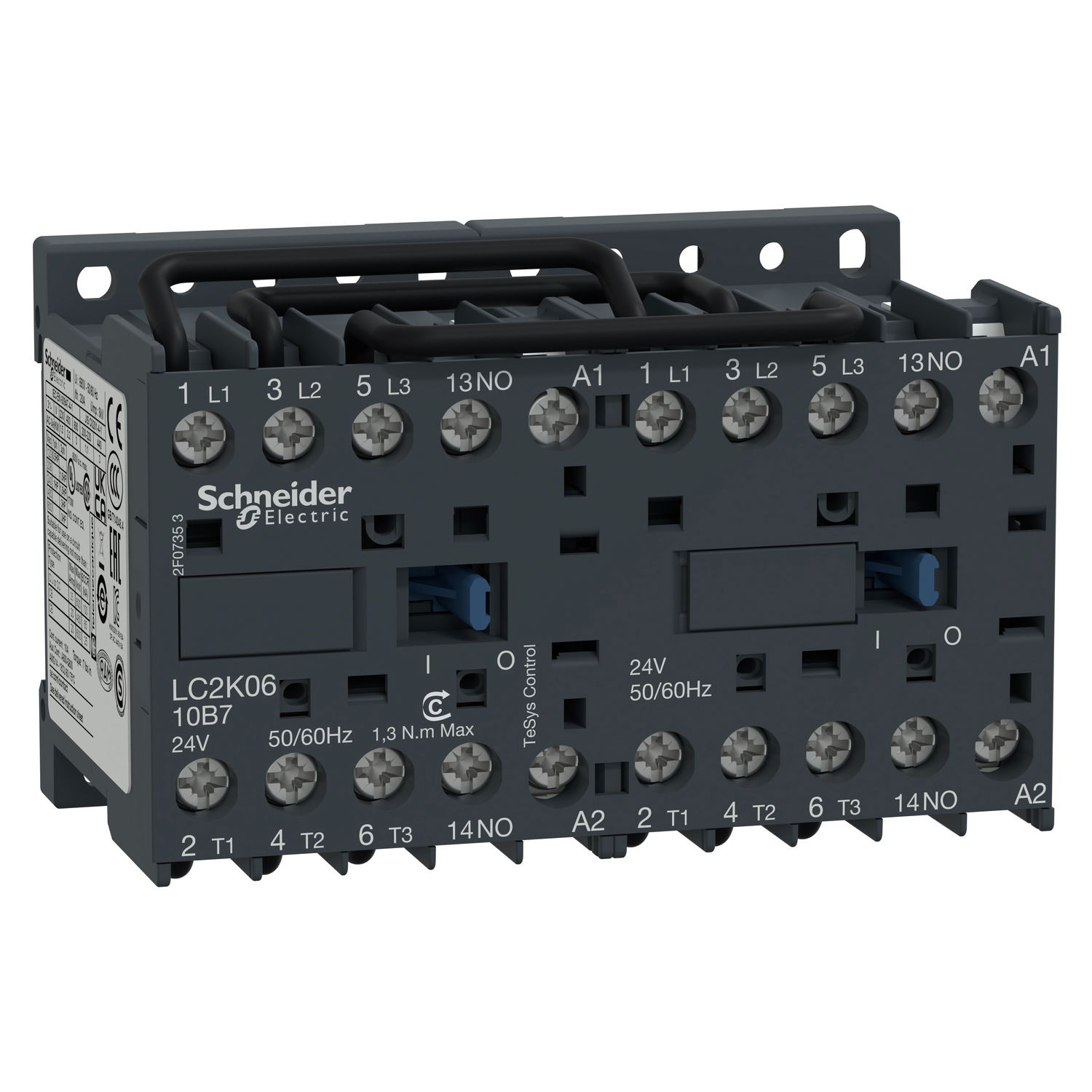

TeSys K reversing contactor - 3P - AC-3 <= 440 V 9 A - 1 NO - 24 V AC coil
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V 50/60Hz AC coils, 2NO built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC)
Product identifiers
SKU: LC2K0910B7
EAN: 3389110492286
GTIN: 3389110492286
MPN: LC2K0910B7
Loyalty points: 35
Price range: £ 57.71 - £ 90.36 Excl. VAT
Categories
Features
|
Depth
|
57 mm
|
|
Width
|
90 mm
|
|
Height
|
58 mm
|
|
Function
|
Reversing contactor
|
|
Operating voltage DC
|
|
|
Degree of protection (IP)
|
IP20
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Rated operation power NEMA
|
3.73 kW
|
|
Suitable for rail mounting
|
FALSE
|
|
Voltage type for actuating
|
AC
|
|
Degree of protection (NEMA)
|
Other
|
|
Rated control supply voltage DC
|
|
|
Voltage type (operating voltage)
|
AC
|
|
Rated operation power at AC-3, 400 V
|
4 kW
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Rated operation current Ie at AC-1, 400 V
|
-
|
|
Rated operation current Ie at AC-3, 400 V
|
9 A
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Number of normally open contacts as main contact
|
3
|
|
Number of normally closed contacts as main contact
|
0
|
|
Number of auxiliary contacts as change-over contact
|
-
|
|
Number of auxiliary contacts as normally open contact
|
1
|
|
Number of auxiliary contacts as normally closed contact
|
0
|
|
Type of electrical connection for auxiliary- and control current circuit
|
Screw connection
|
