Energy meter 'Steel', 3-phase, 1 A
1 / 3
Energy meter 'Steel', 3-phase, 1 A
Energy meter 'Steel', 3-phase, 1 A by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £142.65 to £178.33 excl. VAT. Voltimum+ members earn 98 points per unit.

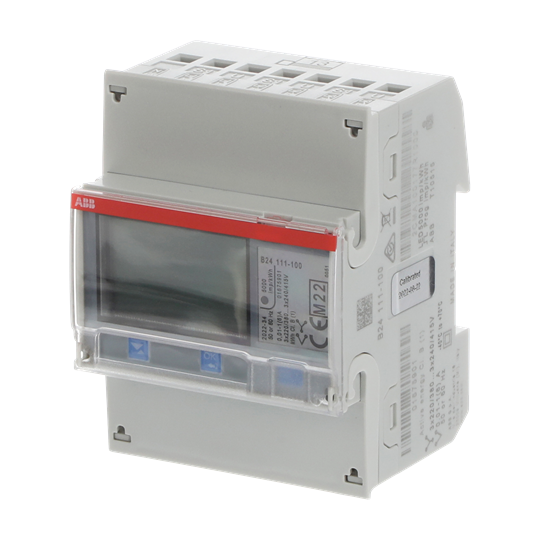

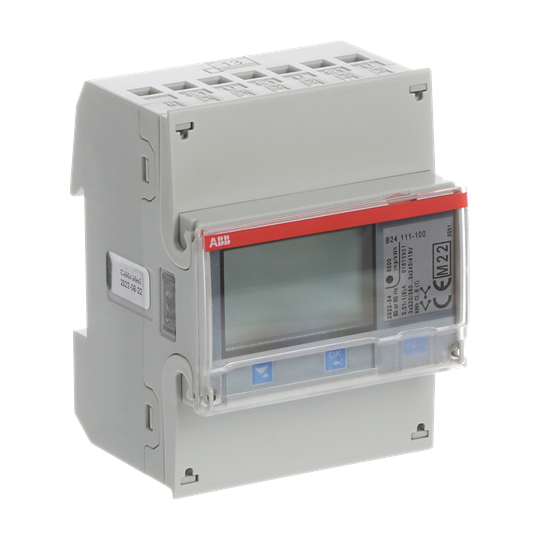

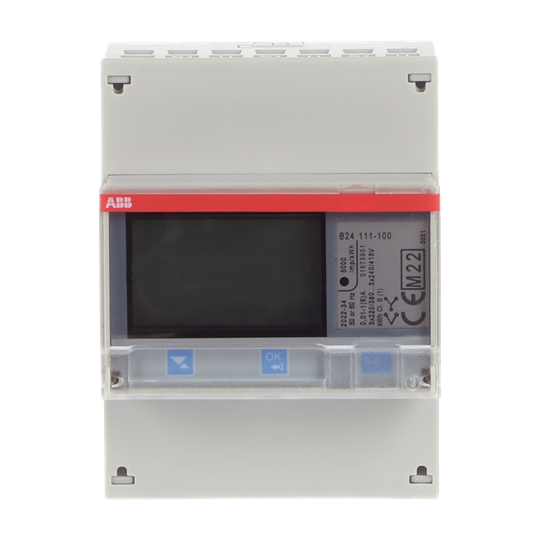

Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase transformer connectedfor active energy. One output for pulses or alarm etc. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.
Product identifiers
SKU: 2CMA100177R1000
EAN: 7392696001779
GTIN: 7392696001779
MPN: B24 111-100
Loyalty points:
98
Price range: £ 142.65 - £ 178.33 Excl. VAT
Specifications
| Depth | 65 |
| Model | Measurement transformer |
| Width | 70 |
| Height | 26.5 |
| Approval | Measuring Instruments Directive |
| Frequency | |
| Pole type | Four conductor |
| Calibrated | yes |
