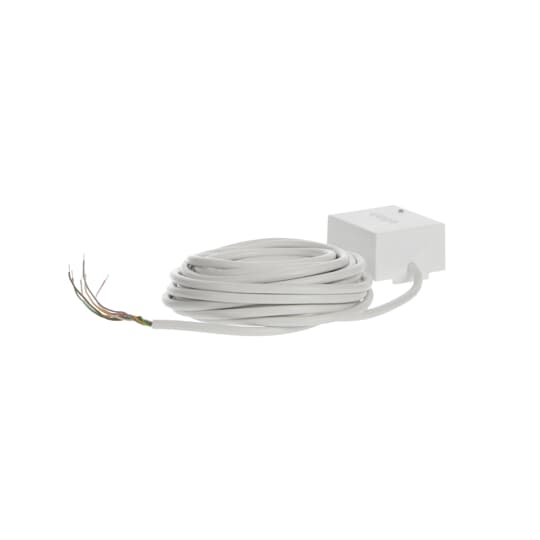

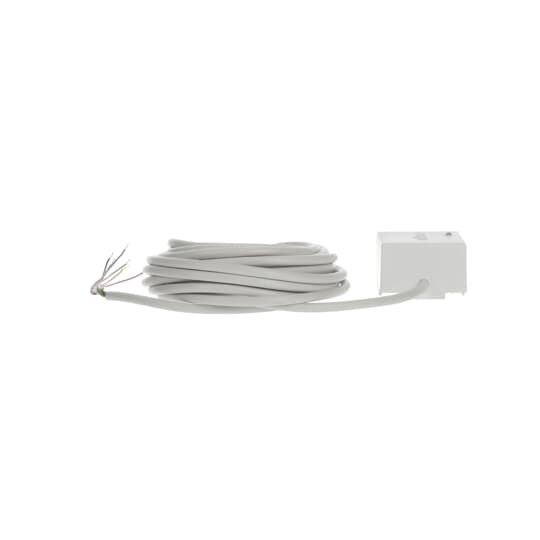

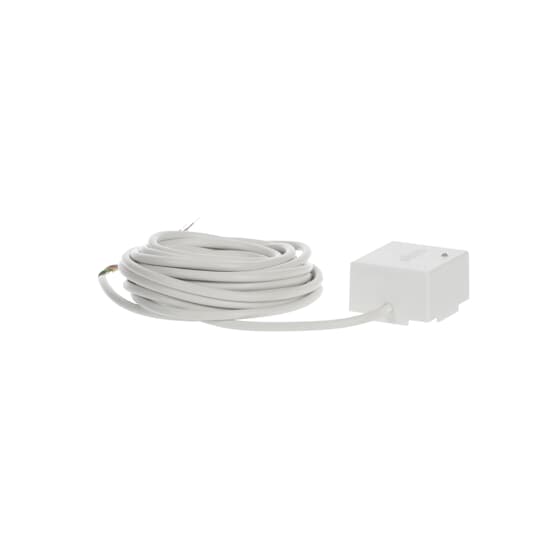

SWM4RN Water Detector with Relay, 12 V

Link copied
SKU
EAN
GTIN
MPN
A resin-encapsulated water detector with gold-plated Termipoint pins, detects water ingress, e.g., pipe fractures, ingress of groundwater and sewage, water damage caused by washing machines and dishwashers etc. before the damage becomes too expensive. With a potential free changeover contact output, an LED parallel output and a LED display. The detector resets itself automatically when the affected area dries out. The device draws its power from an external 10 ... 23 V DC voltage source.

Voltimum+ Loyalty Programme Loyalty points: 77

Price: £ 165.43 Excl. VAT

Specifications

Depth 23
Width 44
Colour White
Height 40
Diameter -
Indication -
Mounting method Surface mounting
Operating current -
Type of messaging -
Compatible with Amazon Alexa no
Compatible with Google Assistant no

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

SWM4_XX_MB_XX_V1-0_9AKK108464A0824_Rev_A.svg

Open

Instructions for use

SWM4_MBA_XX_V1-0_2CDG941131P0001_Rev_B.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

SWM4_CE-ROHS_xx_V1-2_2CDK540175D2701.pdf

Open
