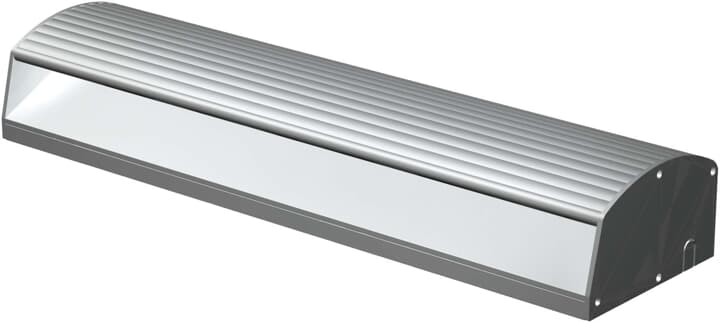

JSM D28 Mounting kit

Link copied
SKU
EAN
GTIN
MPN

JSM D28 Mounting kit by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £130.73 excl. VAT. Voltimum+ members earn 68 points per unit.

JSM D28 is an aluminum profile used as door handle and mounting kit for a complete Magne electromagnetic lock on a hinged door with a minimum opening radius of 200 mm. Magne is mounted directed on the door post, while the anchor plate and the Eva actuator, if applicable, are mounted on the JSM D28. JSMD28 covers the Magne unit completely when the door is closed.

Voltimum+ Loyalty Programme Loyalty points: 68

Price: £ 130.73 Excl. VAT

Specifications

Accessory yes
Spare part no
Type of accessory/spare part Support bracket

Documents

Deeplink product page

Open

Deeplink REACH

2CMT2022-006480_en_D_REACh - Safety Products.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

JSM_D28_Installation_Guide_revB_2TLC010040M0201.pdf

Open

Product data sheet

Open

Declaration RoHS

2CMT2022-006499_Safety Products_revC_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

Declaration_of_conformity_Magne4_(EN)_2024_revD_2TLC172262D0201.pdf

Open
