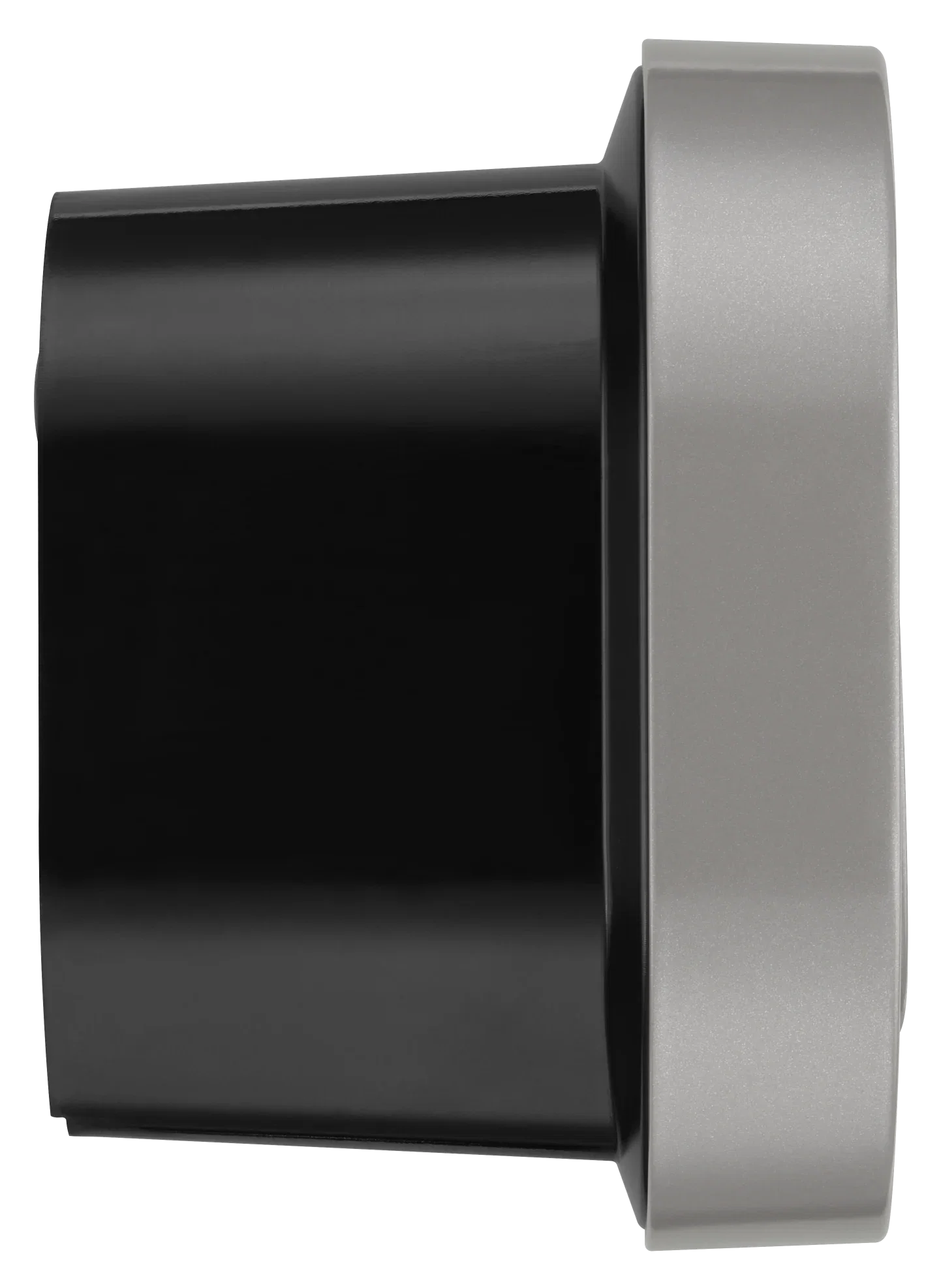

Link Charger

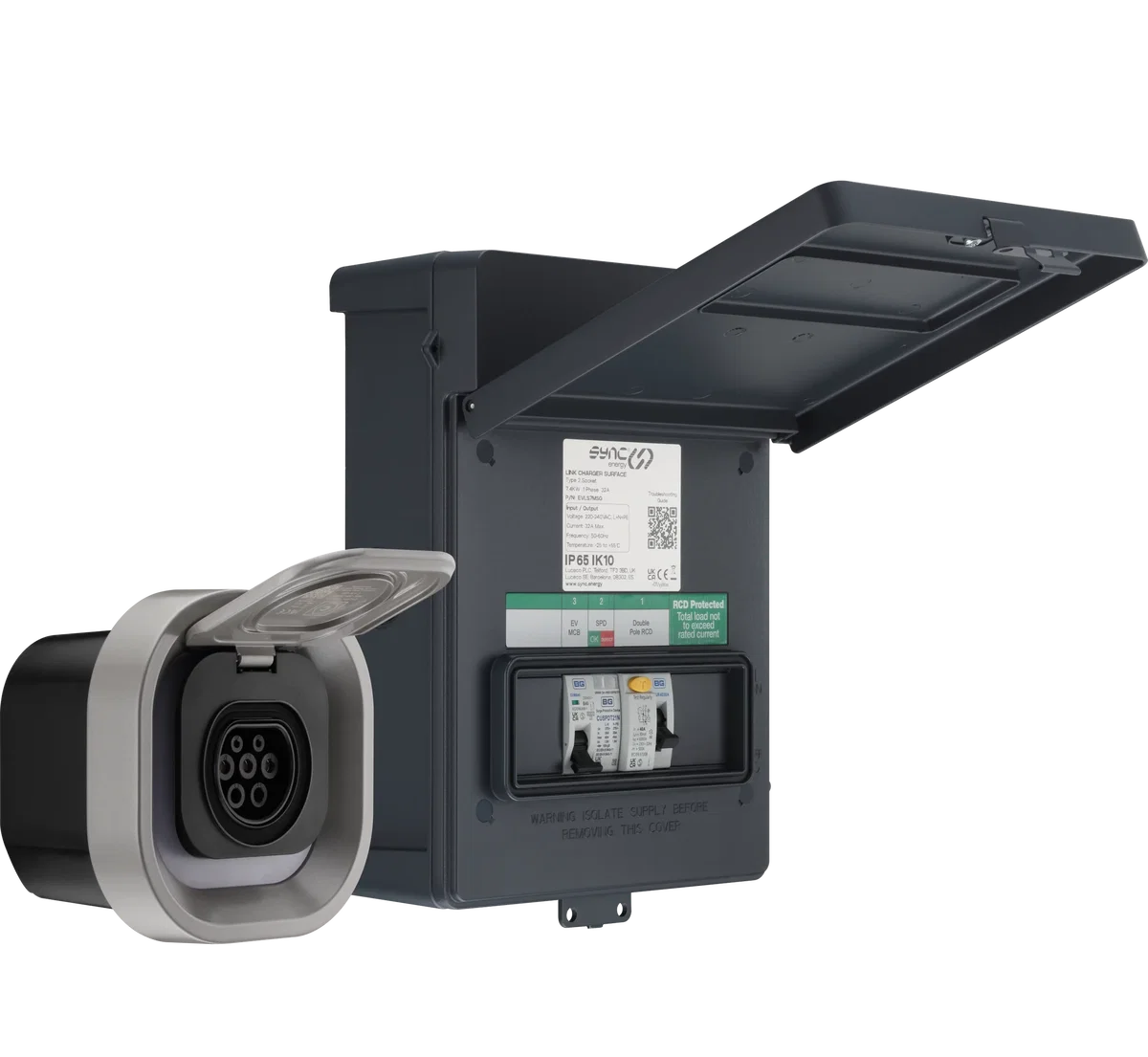

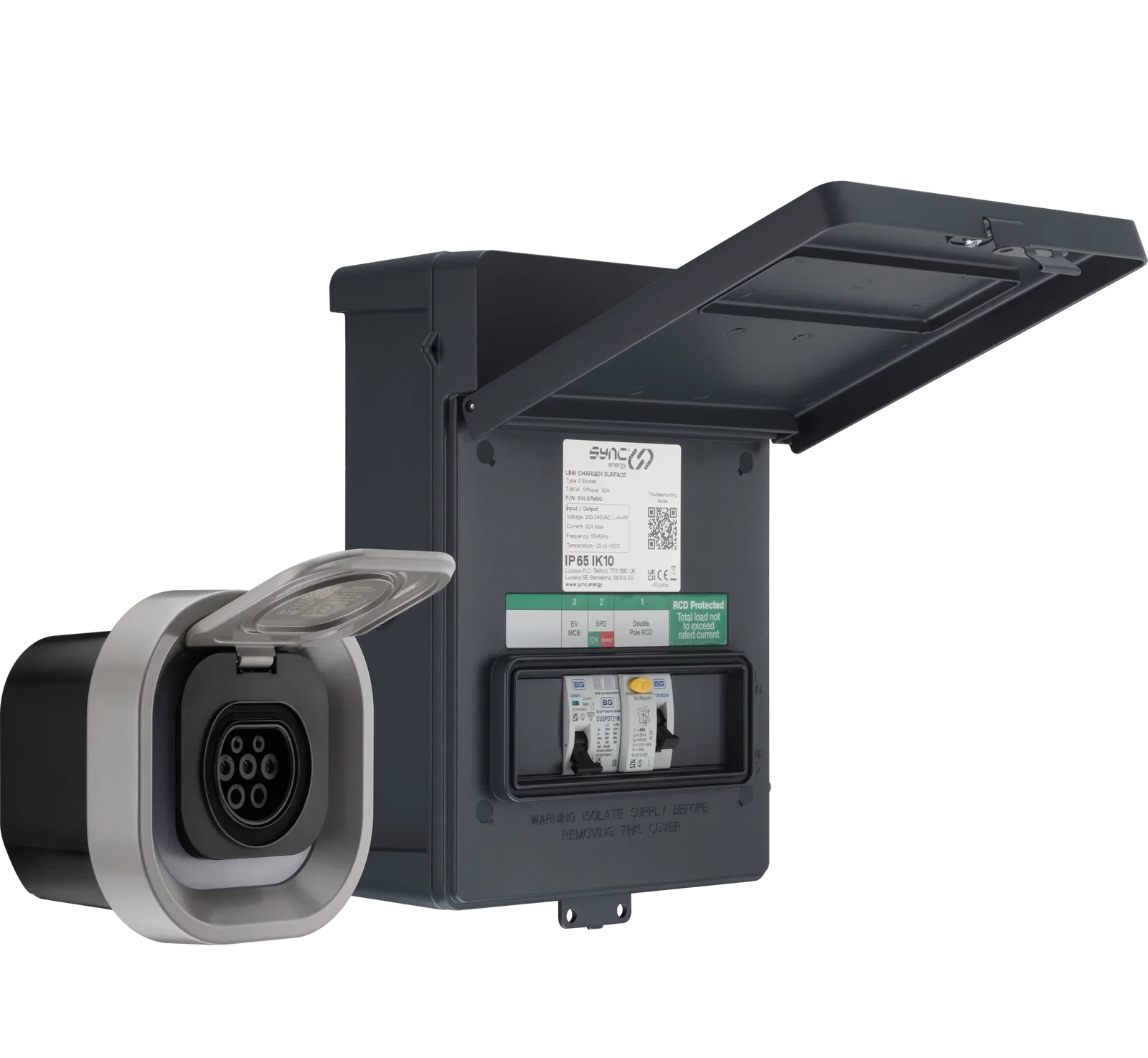

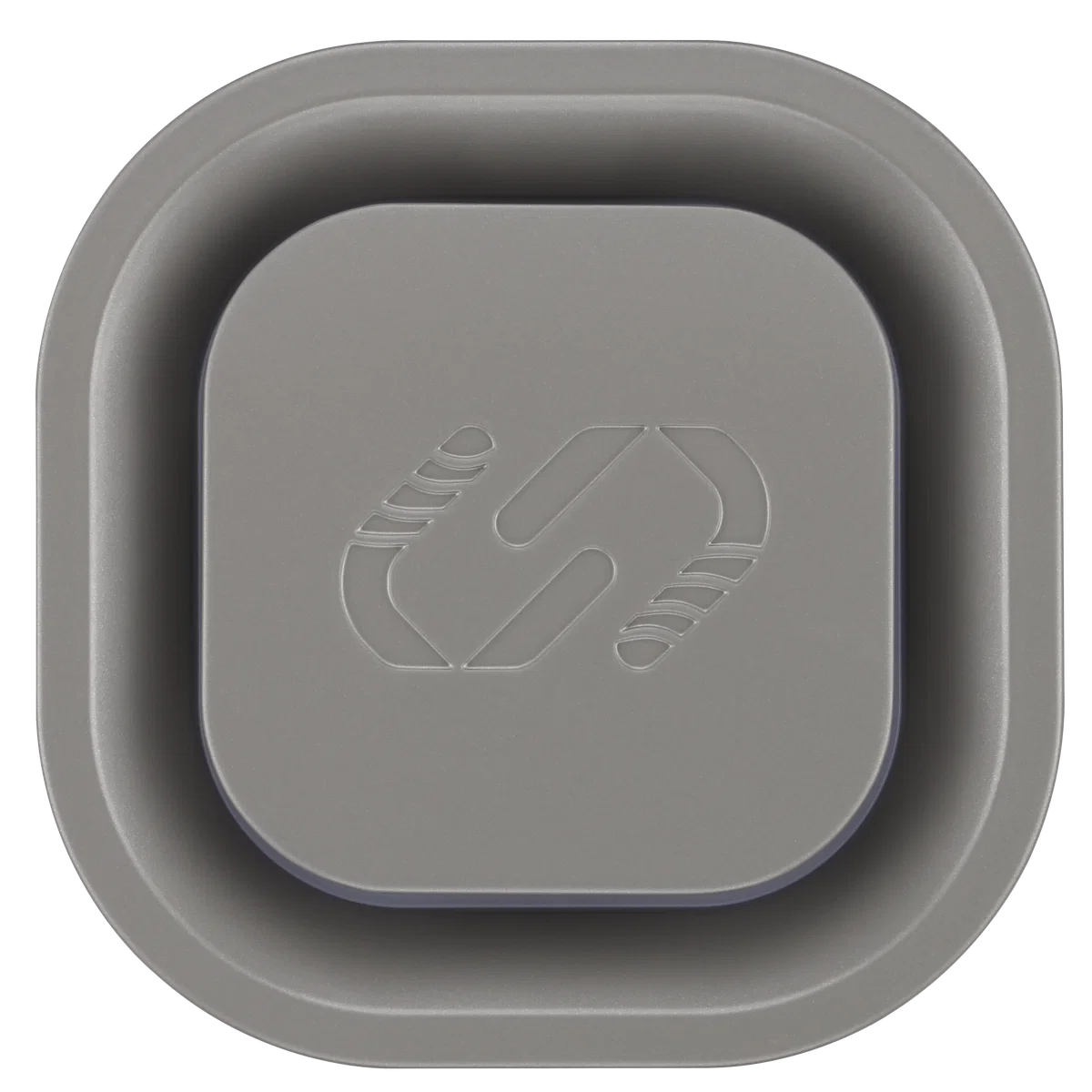

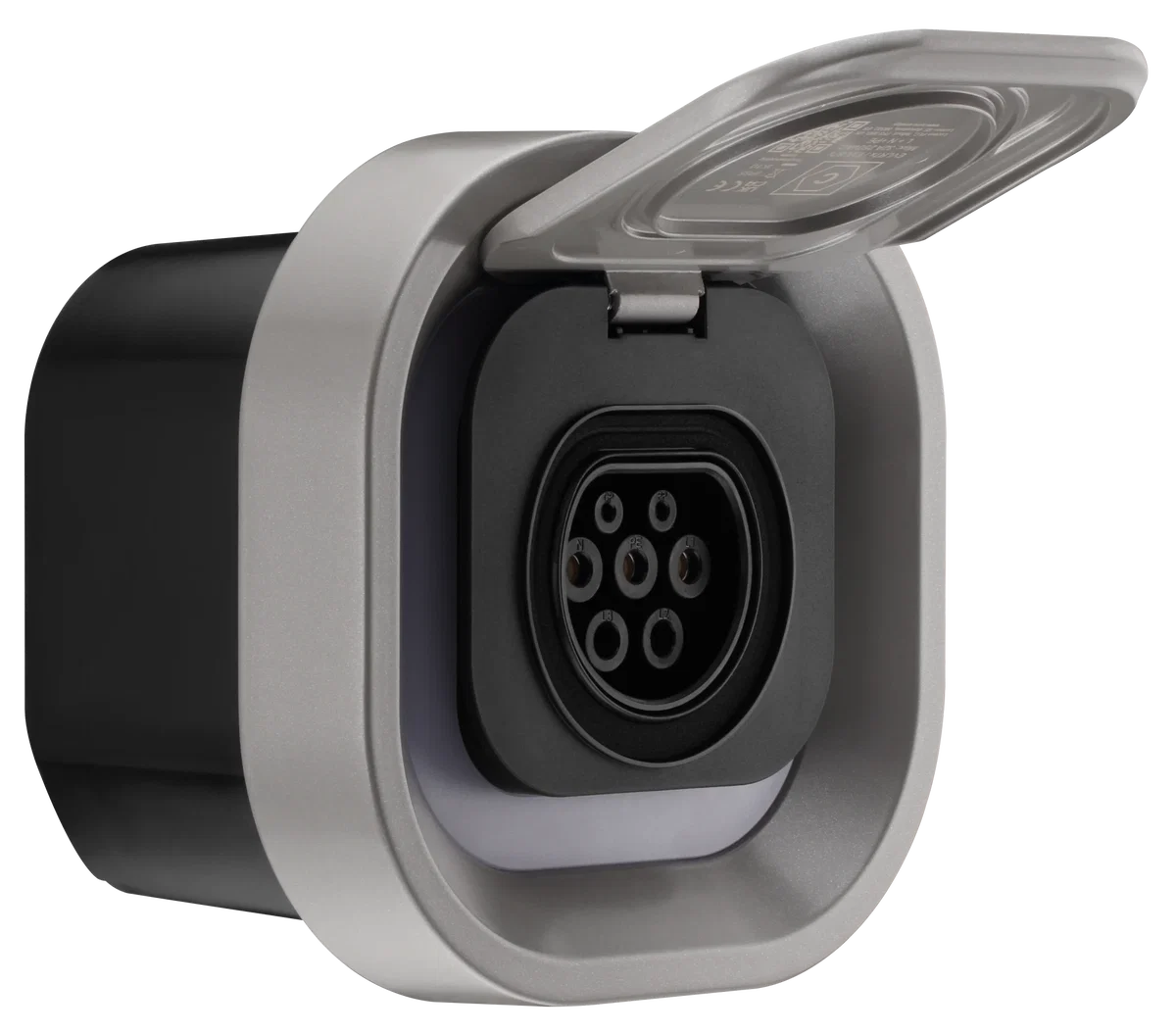

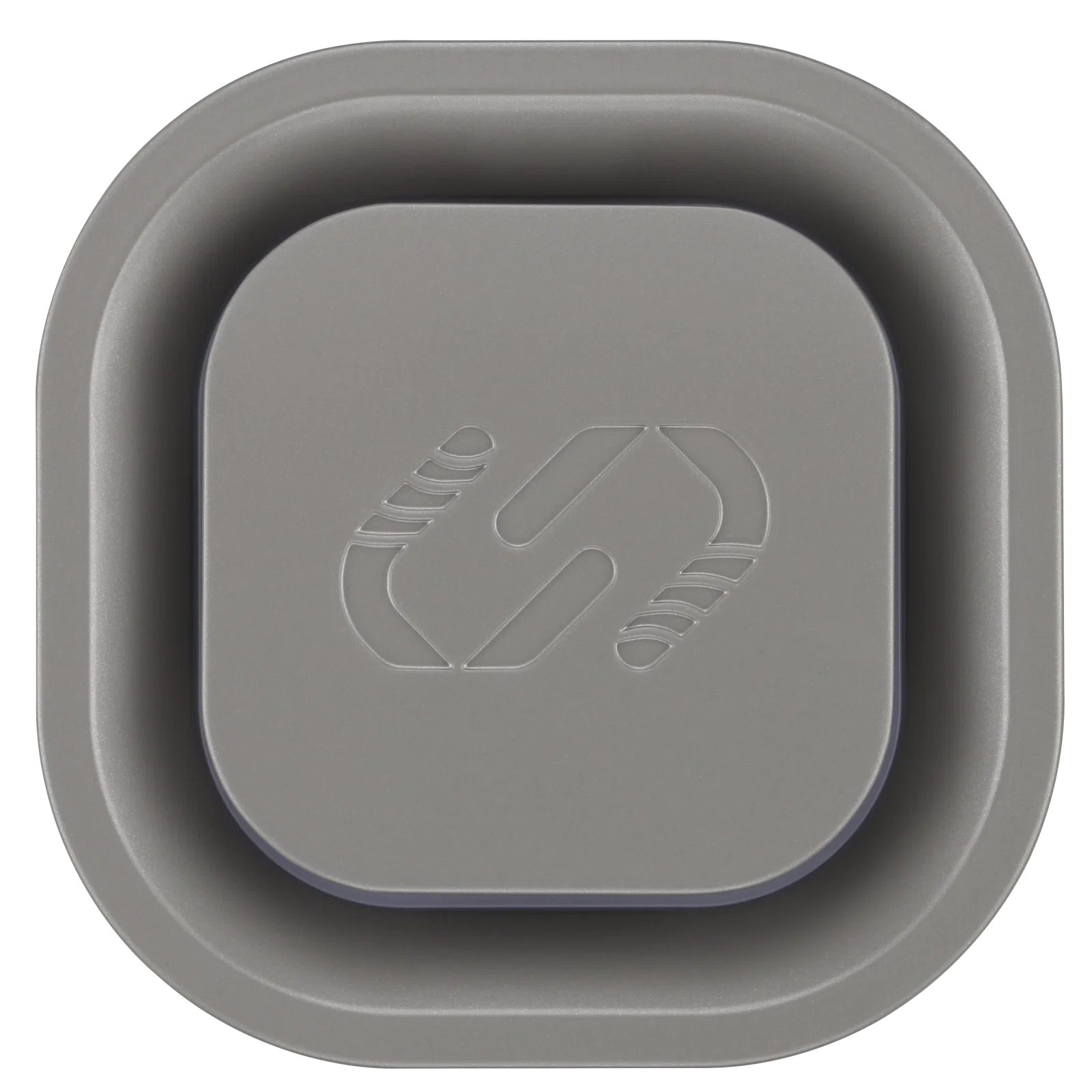

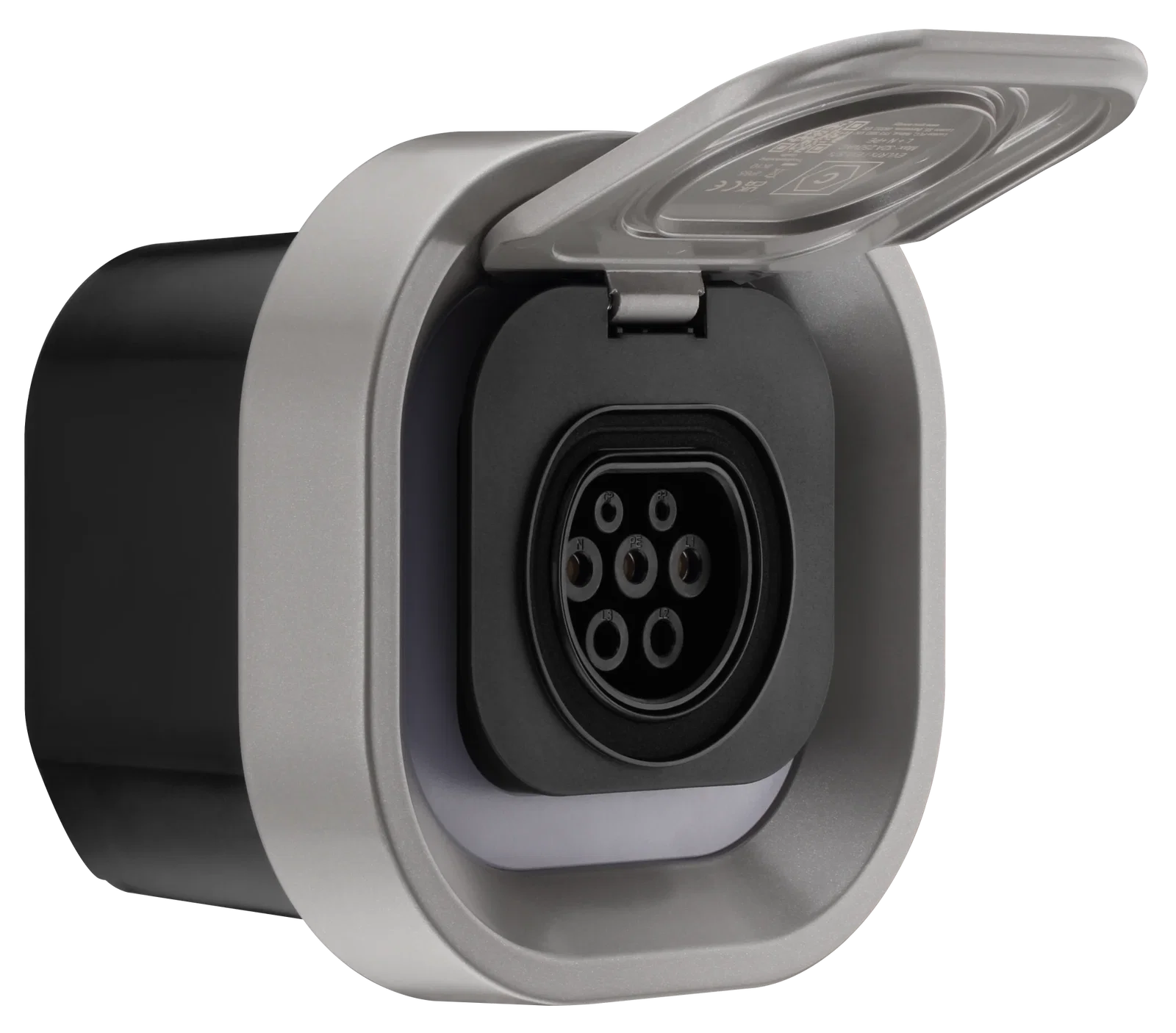

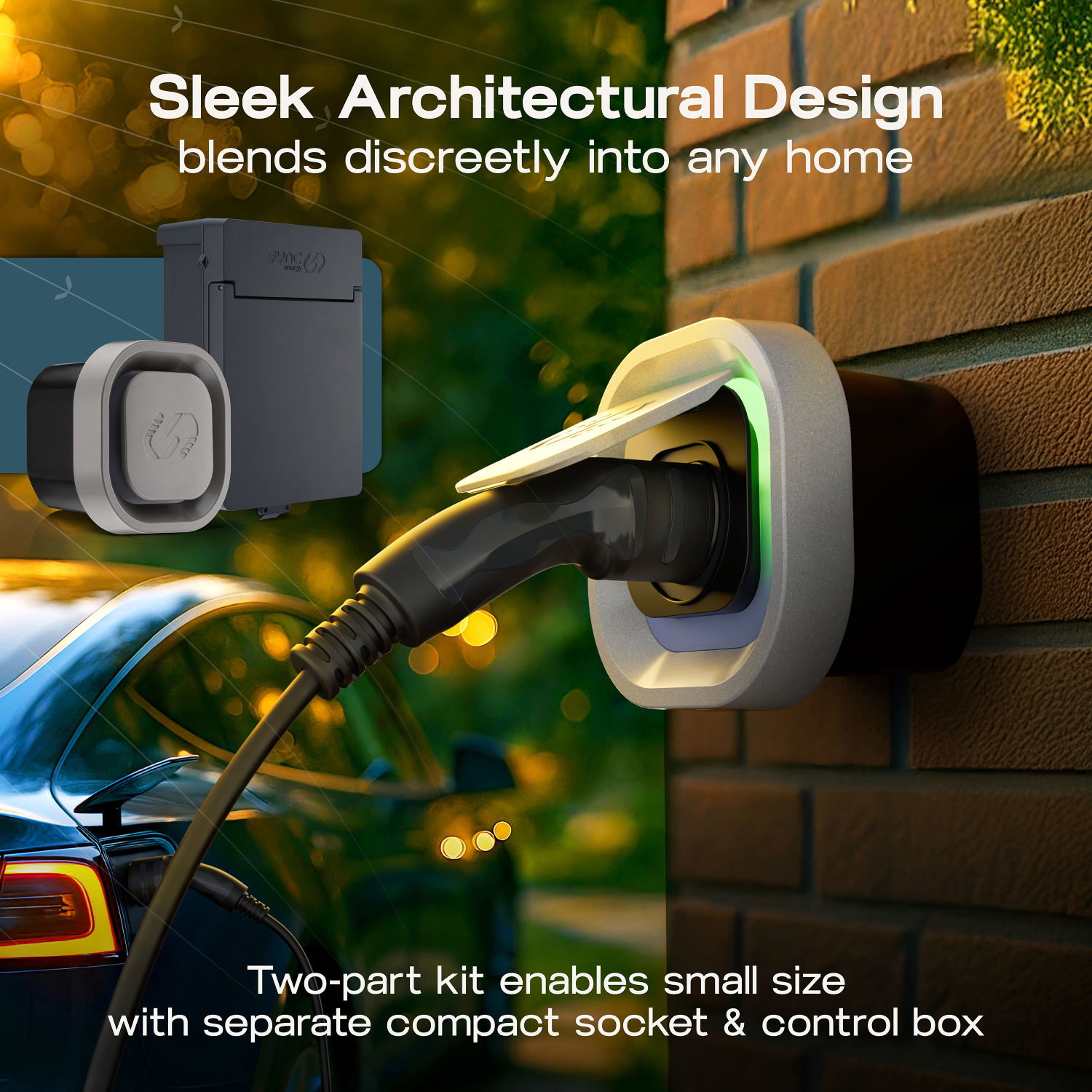

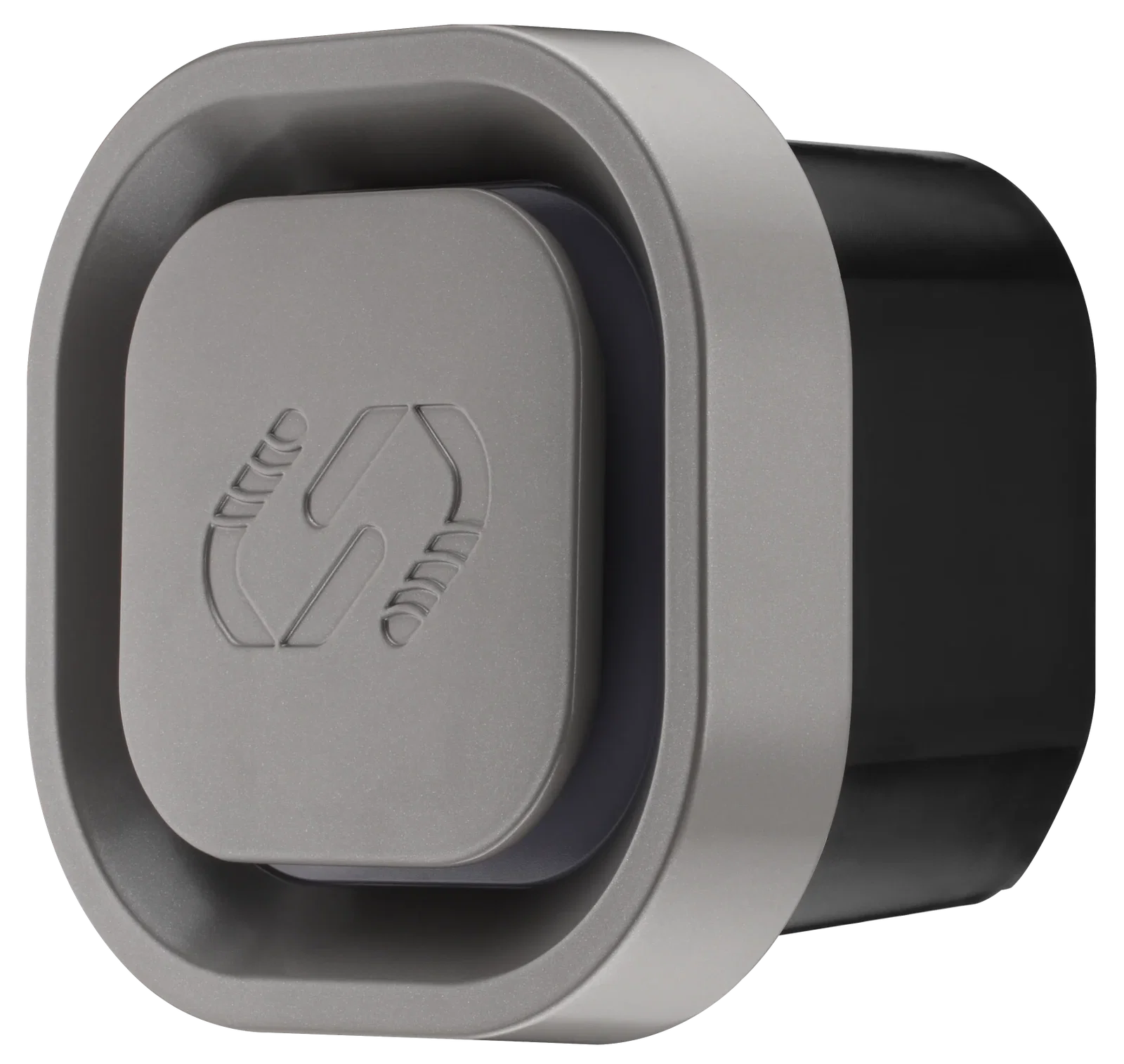

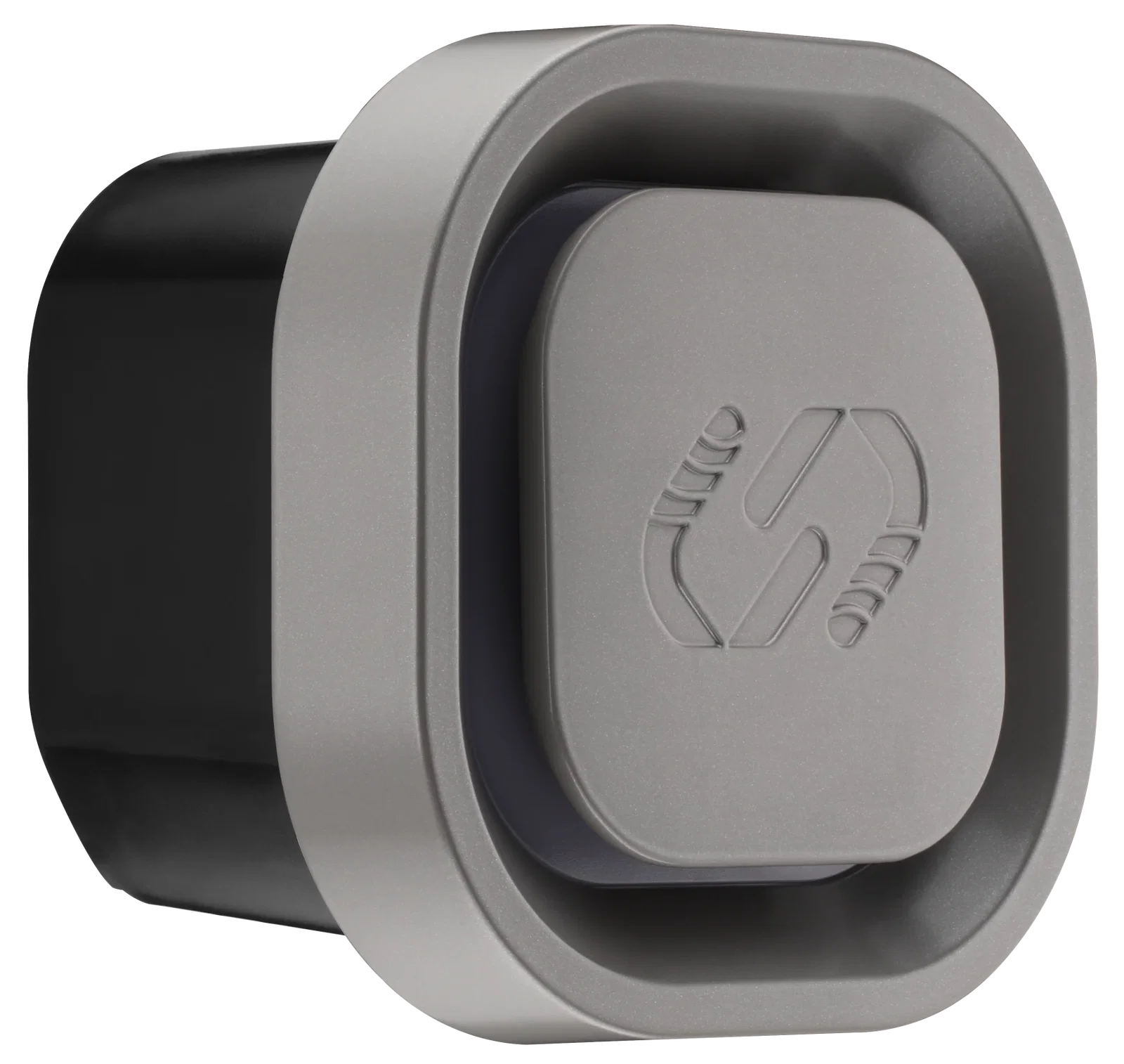

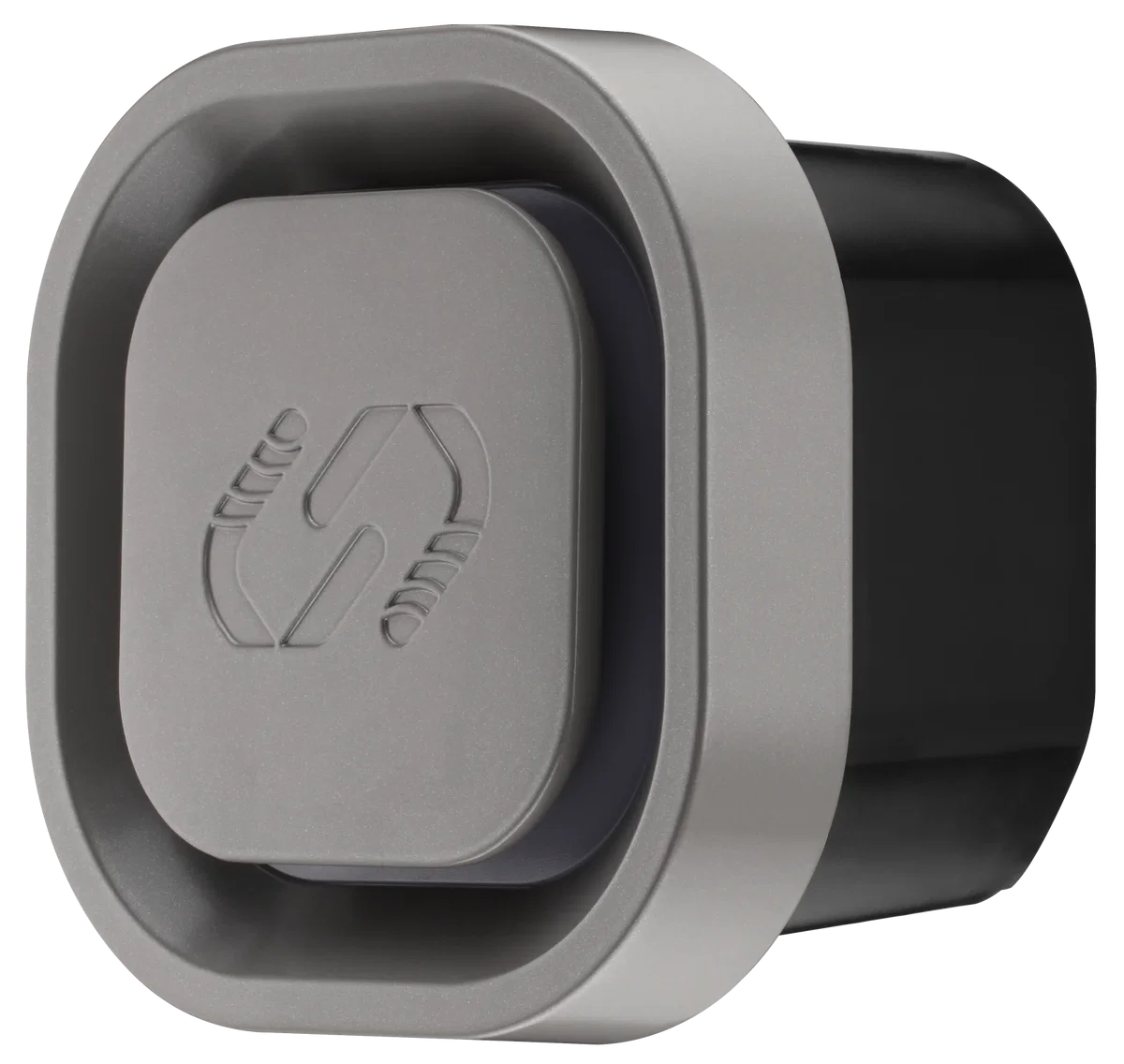

Link Surface EV Charger with Metal Control Box, 7.4kW - Wi-Fi, LAN
- Dynamic charging: up to 7.4kW (32A)
- Retrofittable & Easy to install with no specialist tools

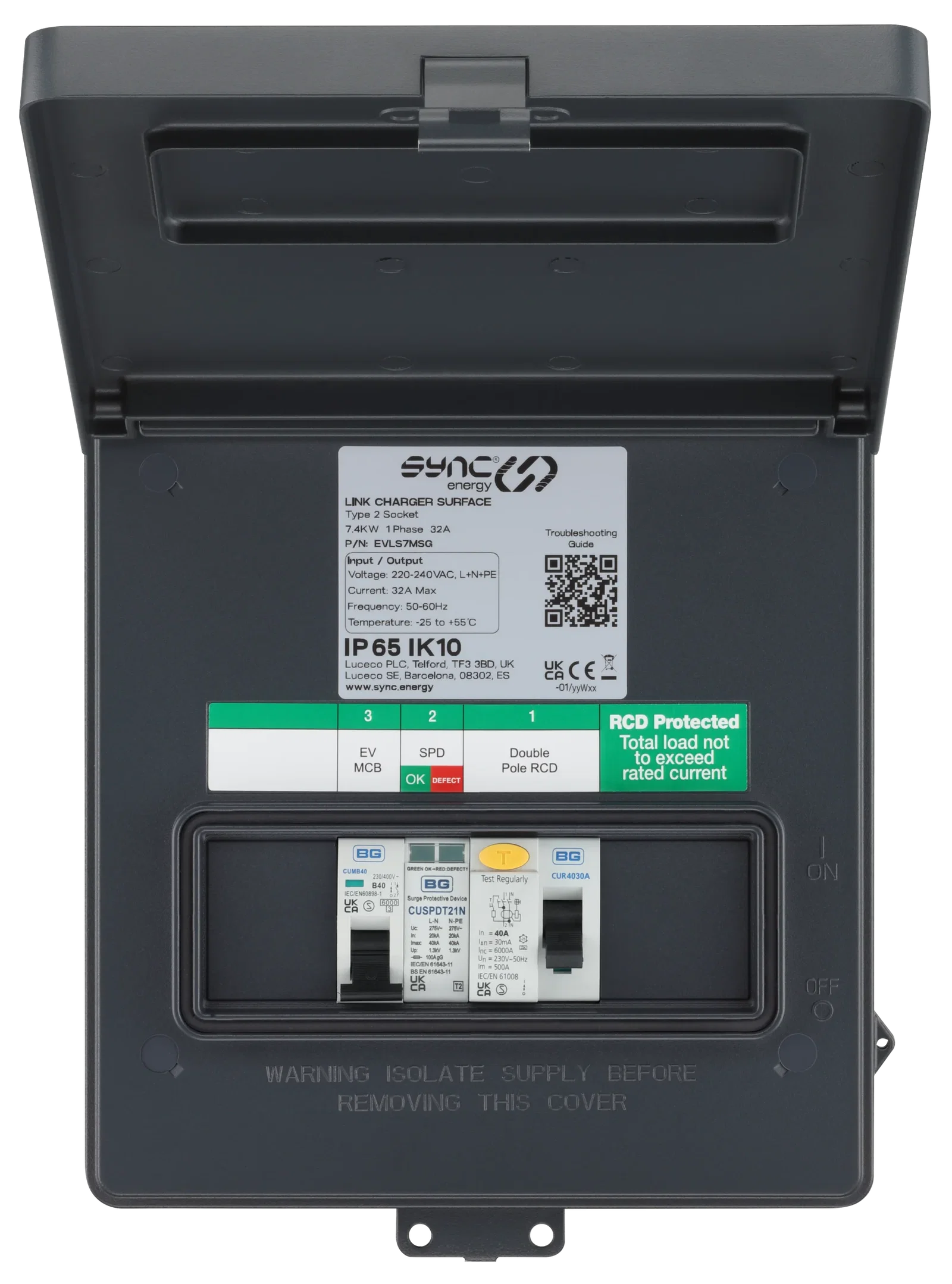

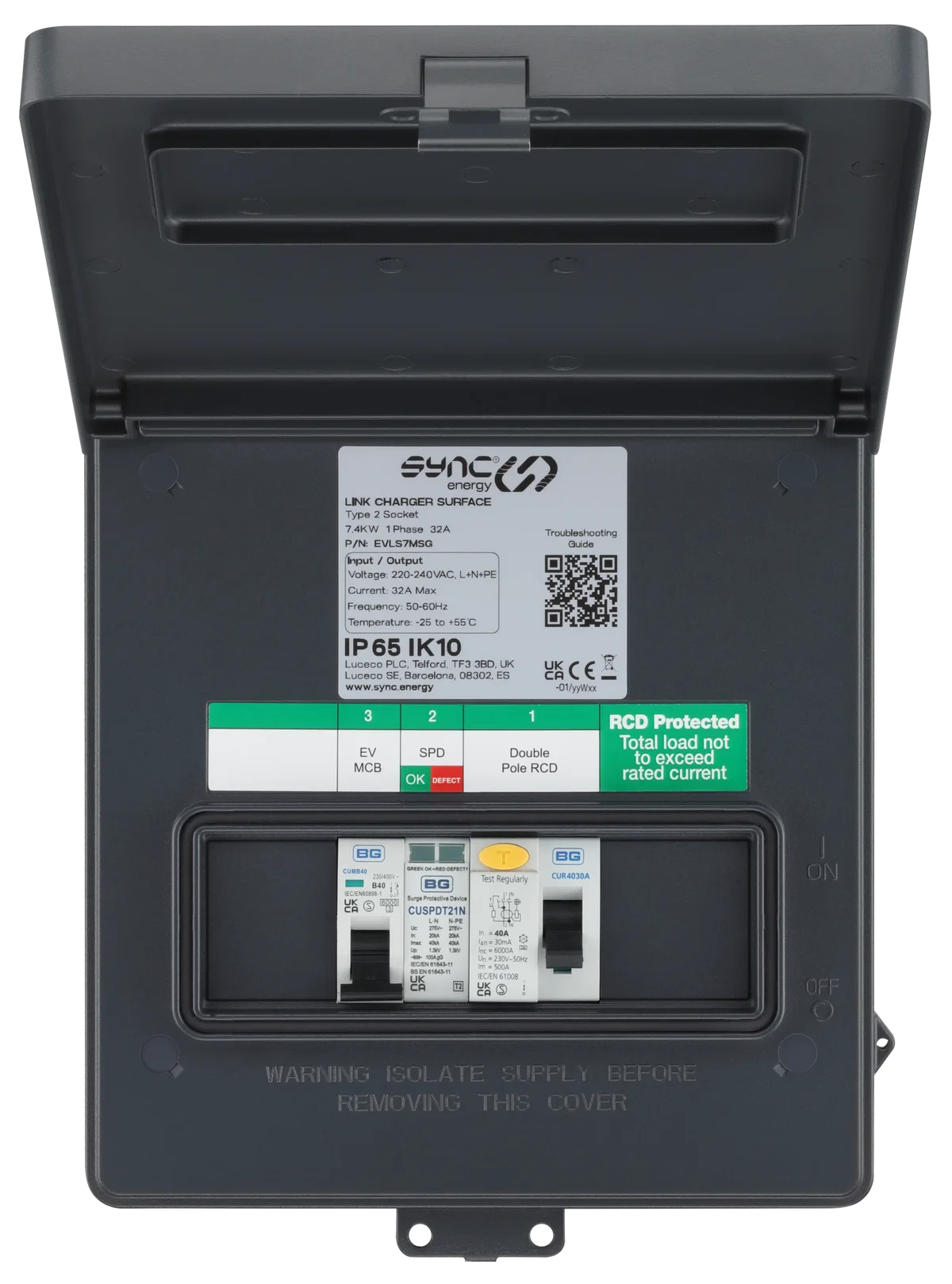

- Integrated Safety with built-in SPD, 40A MCB and Type A
- Smart Control easily manage charging via the Sync Energy App
- Auto Solar Charging allowing you to utilise excess solar power to charge your EV
Product identifiers
SKU: EVLS7MS-01
MPN: EVLS7MS-01
Price: £ 0.00 Excl. VAT
Categories
Specifications
Technical
| IP Rating | IP65 |
| IK Rating | IK10 |
| Network Standards | 802.11 b/g/n |
| Operating Temperature (C) | -25°C to +55°C |
| Rated Trip Current (mA) | 30mA AC + 6mA DC |
| OCPP Protocol | OCPP 1.6J |
| Connectivity | Wi-Fi 2.4Ghz, LAN |
Compliance
| Standard(s) | BS EN 18031-1:2024;BS EN 60898-1:2019;BS EN 60947-3:2009+A2:2015;BS EN 61008-1:2012+A12:2017;BS EN 61008-2-1:1995;BS EN 61439-1:2011;BS EN 62208:2011;BS EN IEC 61851-1:2019;BS EN IEC 61851-21-2:2021;BS EN IEC 62196-2:2022;EN 18031-1:2024;EN 60898-1:2019;EN 60947-3:2009+A2:2015;EN 61008-1:2012+A12:2017;EN 61008-2-1:1995;EN 61439-1:2011;EN 62196-2:2022;EN 62208:2011;EN IEC 61851-1:2019;EN IEC 61851-21-2:2021;ETSI EN 300 328 V2.2.1;ETSI EN 301 489-1 V2.2.3 ;ETSI EN 301 489-3 V2.1.1 |
