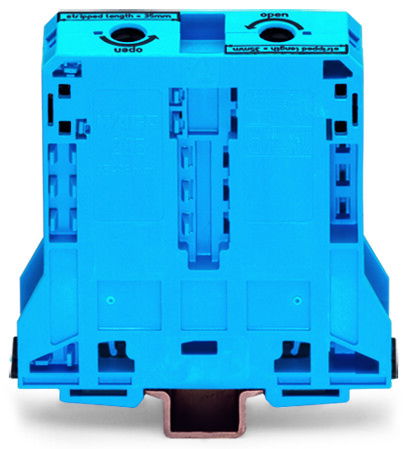

2-conductor through terminal block 95 mm² lateral marker slots blue

Name: 2-conductor through terminal block 95 mm² lateral marker slots blue
Brand: Wago
SKU: 285-194
Availability: InStock

2-conductor through terminal block; 95 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP; 95,00 mm²; blue

Product identifiers

SKU: 285-194

EAN: 4044918452533

GTIN: 4044918452533

MPN: 285-194

Loyalty points: 3 (x5)

Price range: £ 20.79 - £ 129.94 Excl. VAT

Terminal blocks

Specifications

Depth	101
Width	25
Colour	Blue
Height	107
EFNA0008	V0
Rated voltage	1000
Mounting method	DIN rail (top hat rail) 35 mm
Number of levels	1
Rated current In	232
Operating temperature	105 - 105
Closing plate required	no
Material insulation body	Thermoplastic
Internally connected stages	no
Explosion-tested version 'Ex e'	no
Suitable for conductor material	-
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	2
Connectable conductor cross section solid-core	25 - 95
Connectable conductor cross section multi-wired	25 - 95
Connectable conductor cross section fine-strand with cable end sleeve	25 - 95
Connectable conductor cross section fine-strand without cable end sleeve	25 - 95
