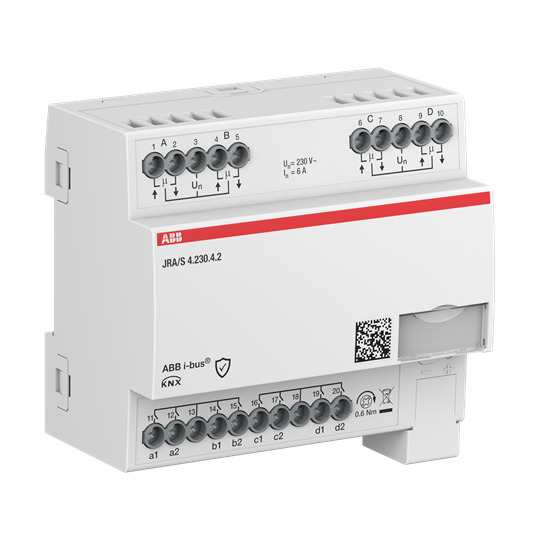

JRA/S4.230.4.2 Blind/Roller Shutter Act, Travel Det, Binary Inp, 4-f, 230 V AC, Man Op, MDRC

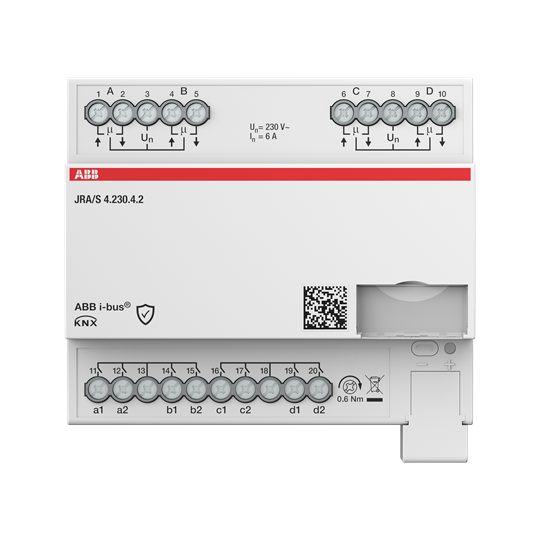

JRA/S4.230.4.2 Blind/Roller Shutter Act, Travel Det, Binary Inp, 4-f, 230 V AC, Man Op, MDRC – Image 2 of 3

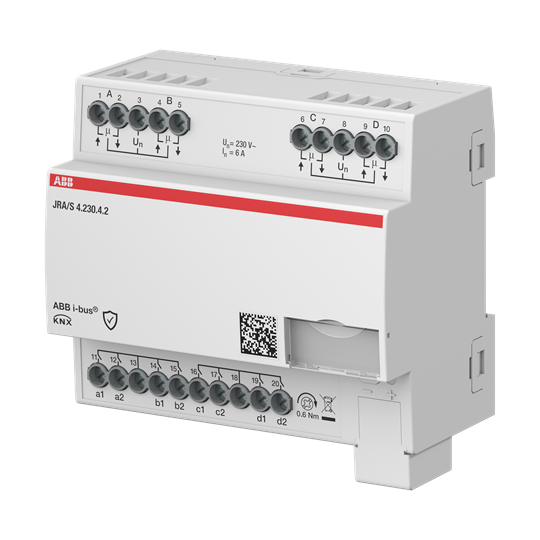

JRA/S4.230.4.2 Blind/Roller Shutter Act, Travel Det, Binary Inp, 4-f, 230 V AC, Man Op, MDRC – Image 3 of 3

1 / 3

JRA/S4.230.4.2 Blind/Roller Shutter Act, Travel Det, Binary Inp, 4-f, 230 V AC, Man Op, MDRC

Name: JRA/S4.230.4.2 Blind/Roller Shutter Act, Travel Det, Binary Inp, 4-f, 230 V AC, Man Op, MDRC
Brand: ABB
SKU: 2CDG110292R0011
Price: 499.52 GBP
Availability: OutOfStock

For the control of independent 230 V AC motors via ABB i-bus® KNX. The devices are designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. The travel times of the motor are detected automatically via current detection. Additionally the device has 2 binary inputs (contact scanning) per output, for the connection of conventional switches or push buttons to directly control the hanging. The device is pre-configured so that the respective inputs are directly assigned to the outputs. To protect the motor, the output contacts are electromechanically locked against each other.

Product identifiers

SKU: 2CDG110292R0011

EAN: 4053546110975

GTIN: 4053546110975

MPN: JRA/S4.230.4.2

Loyalty points: 50

Price: £ 499.52 Excl. VAT

Specifications

Bus system KNX	yes
Bus system LON	no
Mounting method	DRA (DIN-rail adapter)
Type of current	AC
Number of inputs	8
Other bus systems	None
Power consumption	-
Bus system Powernet	no
With LED indication	-
With bus connection	yes
Max. switching power	1380
With switch function	-
Bus module detachable	no
Degree of protection (IP)	IP20
Bus system radio frequency	no
Radio frequency bidirectional	-
Switching current (resistive)	-
Local operation/hand operation	-
Bus system KNX-RF (Radio Frequency)	no
Width in number of modular spacings	6
Max. number of venetian-blind outputs	-
Min. depth of built-in installation box	64.5
