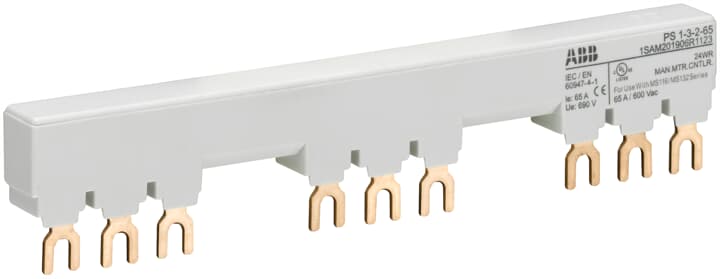

PS1-3-2-65 3-phase busbar for 3 MS116 / MS132 with 2 HK/SK, Ie=65A

Link copied
SKU
EAN
GTIN
MPN

PS1-3-2-65 3-phase busbar for 3 MS116 / MS132 with 2 HK/SK, Ie=65A by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £15.41 to £16.85 excl. VAT. Voltimum+ members earn 8 points per unit.

PS1-3-2-65 3-phase busbars ensure a quick and safe connection of 3 MS132 or MS116 manual motor starters with 2 lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 65 A.

Voltimum+ Loyalty Programme Loyalty points: 8

Price range: £ 15.41 - £ 16.85 Excl. VAT

Specifications

Colour Grey
Length 167.5
Insulated yes
Module width 14
Cross section 8
Number of poles 9
Number of phases 3
Can be cut to size no
Rated permanent current Iu 65
Suitable for number of devices 3
Width in number of modular spacings 9.57
Rated short-time withstand current lcw -
Suitable for devices with auxiliary switch yes

Documents

Deeplink product page

Open

Deeplink REACH

1SAA963005-4502_en_D_REACh Declaration for all Manual Motor Starters.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

Open

Product data sheet

Open

Declaration RoHS

1SAA963006-4501_ROHS_Manual_Motor_Starters_revB_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

1SAD101100-3411.pdf

Open
