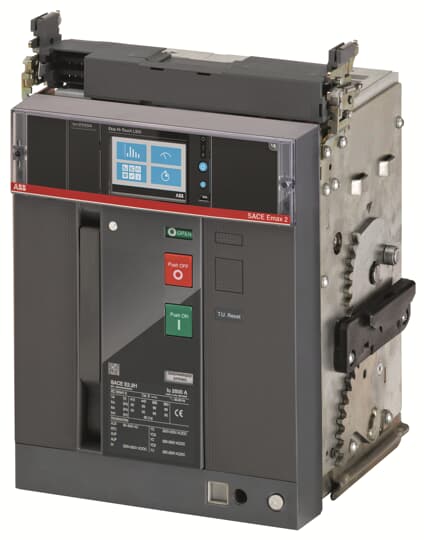

E2.2S 1000 Ekip Hi-Touch LSIG 3p WMP

Name: E2.2S 1000 Ekip Hi-Touch LSIG 3p WMP
Brand: ABB
SKU: 1SDA072289R1
Availability: InStock

E2.2S 1000 Ekip Hi-Touch LSIG 3p WMP by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £10,855.72 excl. VAT. Voltimum+ members earn 4745 points per unit.

MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S 1000 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

Product identifiers

SKU: 1SDA072289R1

EAN: 8015644761394

GTIN: 8015644761394

MPN: E2.2S 1000 Ekip Hi-Touch LSIG 3p WMP

Loyalty points: 4745

Price: £ 10,855.72 Excl. VAT

Specifications

Power loss	113
Rated voltage
Number of poles	3
Device construction	Built-in device slide-in technique (withdrawable)
Motor drive optional	yes
Motor drive integrated	no
Type of control element	Push button
Degree of protection (IP)	IP30
Rated permanent current Iu	1000
With switched-off indicator	yes
Overload release current setting
Integrated earth fault protection	yes
Complete device with protection unit	yes
With integrated under voltage release	no
DIN rail (top hat rail) mounting optional	no
Suitable for DIN rail (top hat rail) mounting	no
Type of electrical connection of main circuit	Connection at separate chassis part
Position of connection for main current circuit	Connection at separate chassis part
Adjustment range undelayed short-circuit release
Number of auxiliary contacts as change-over contact	4
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Adjustment range short-term delayed short-circuit release
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	85
