Schneider Electric

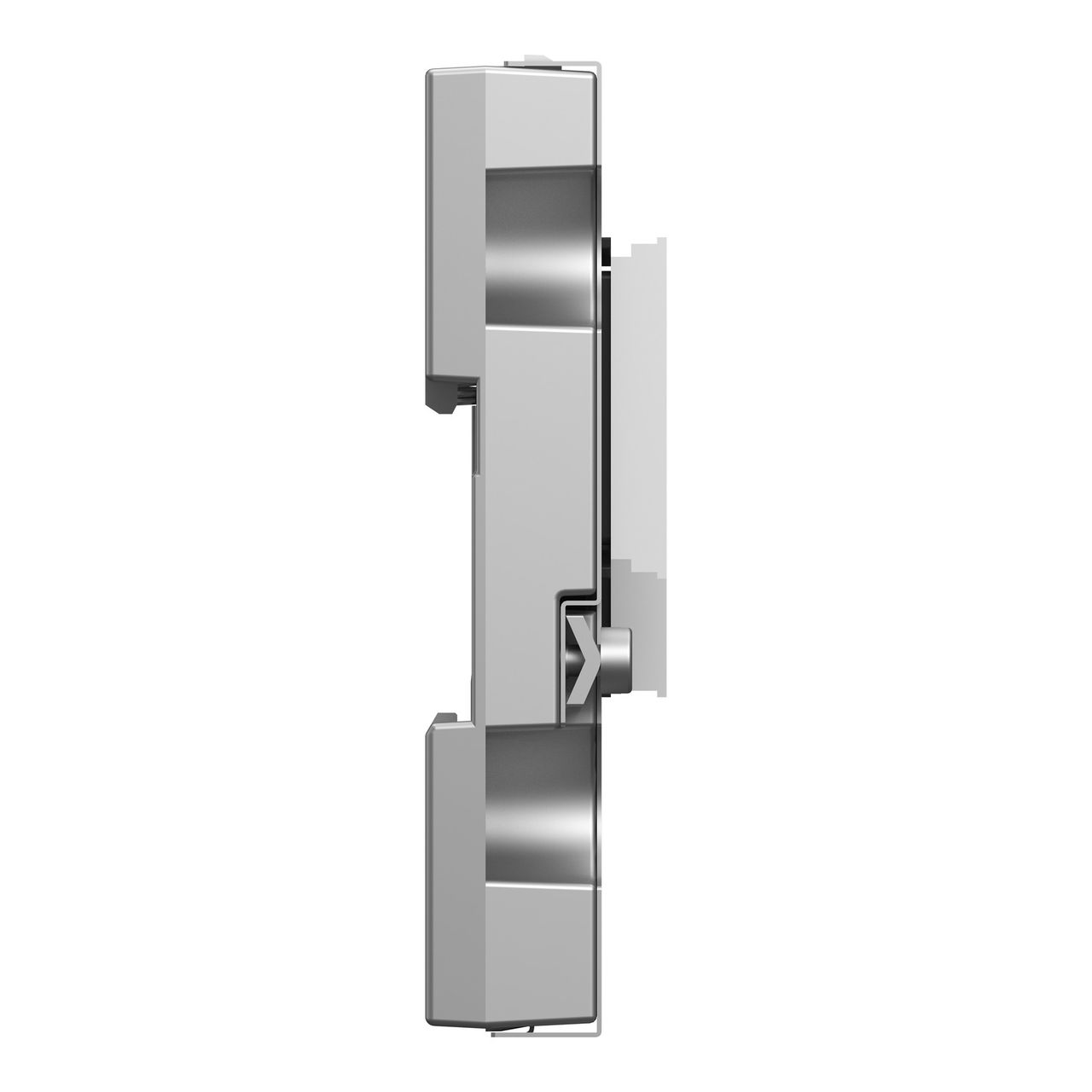

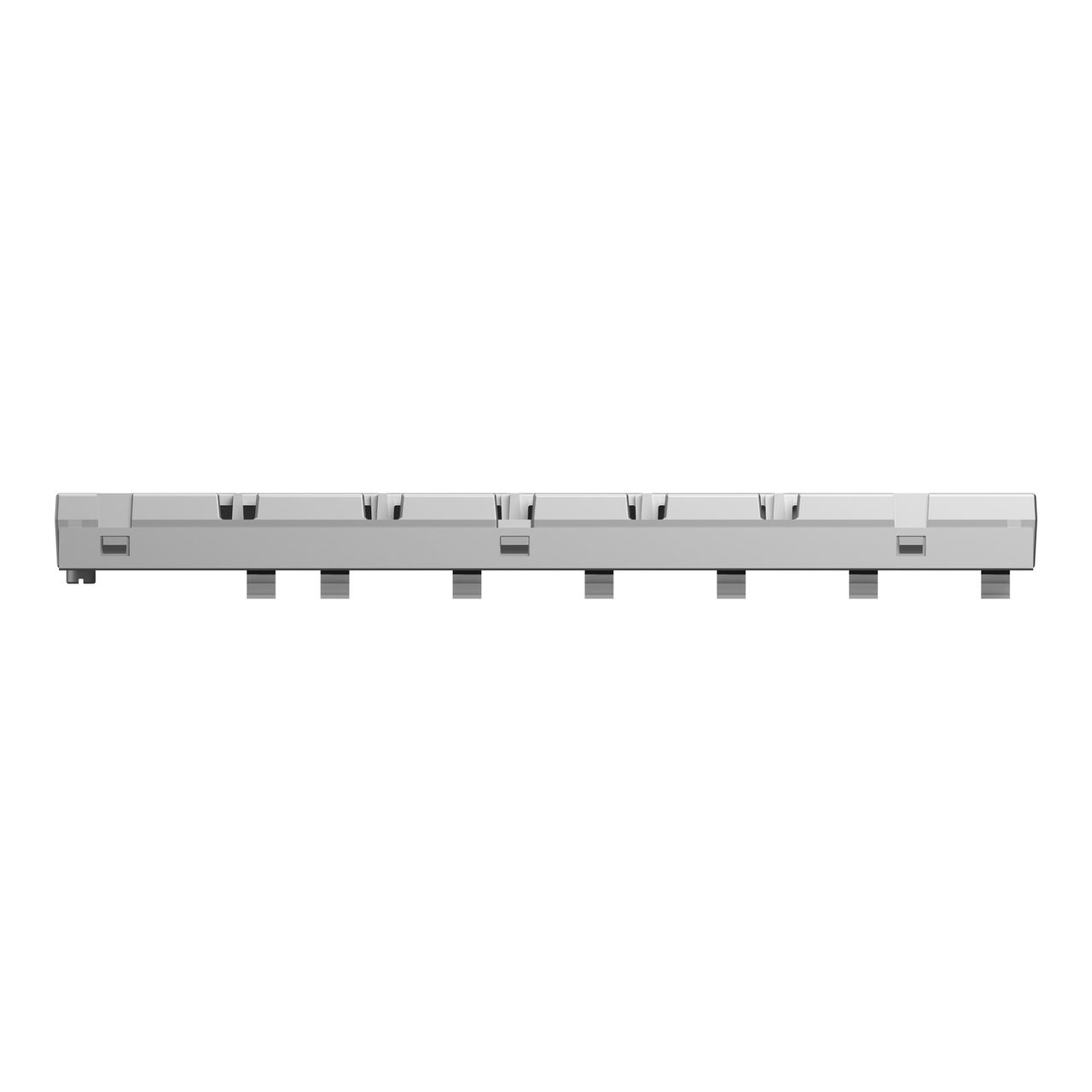

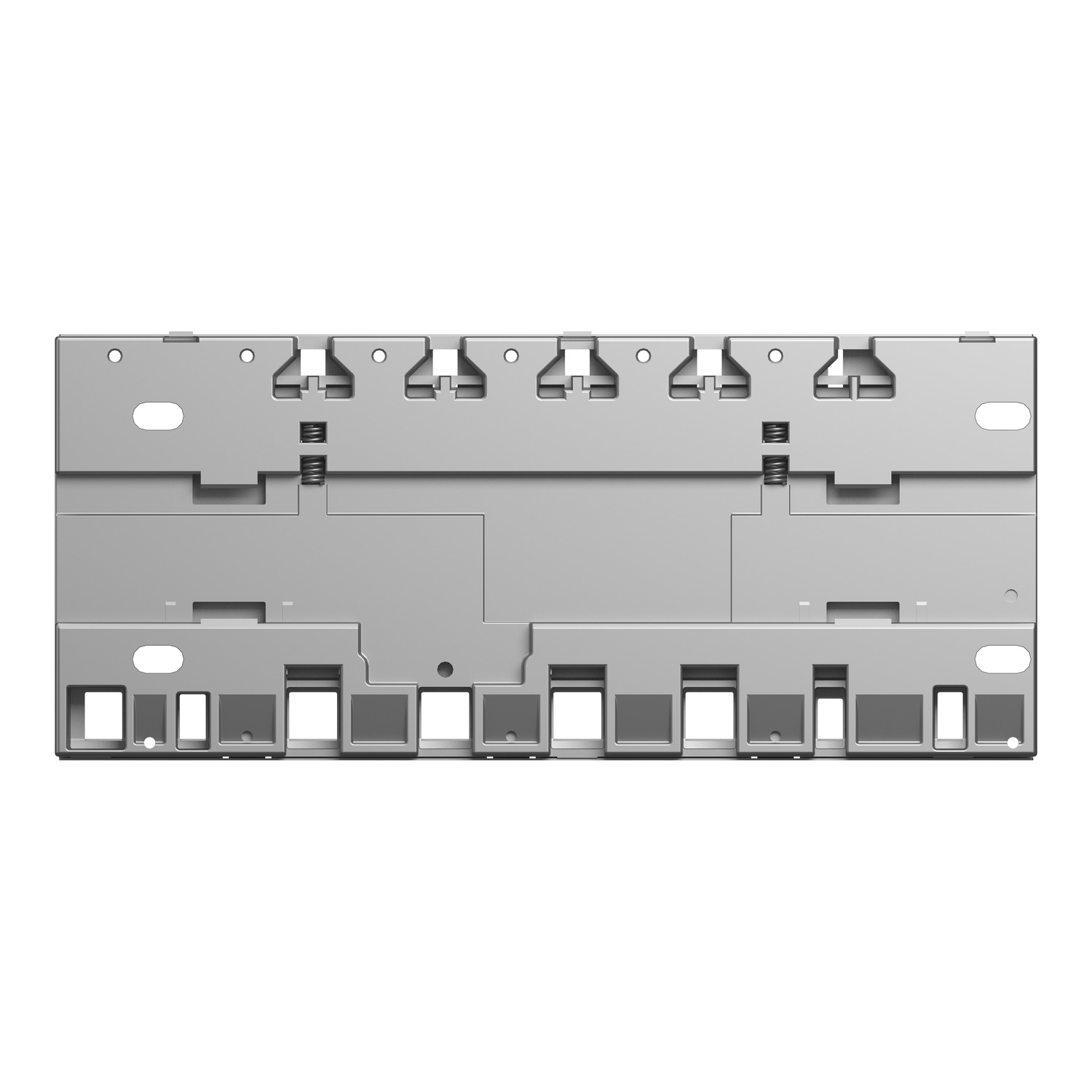

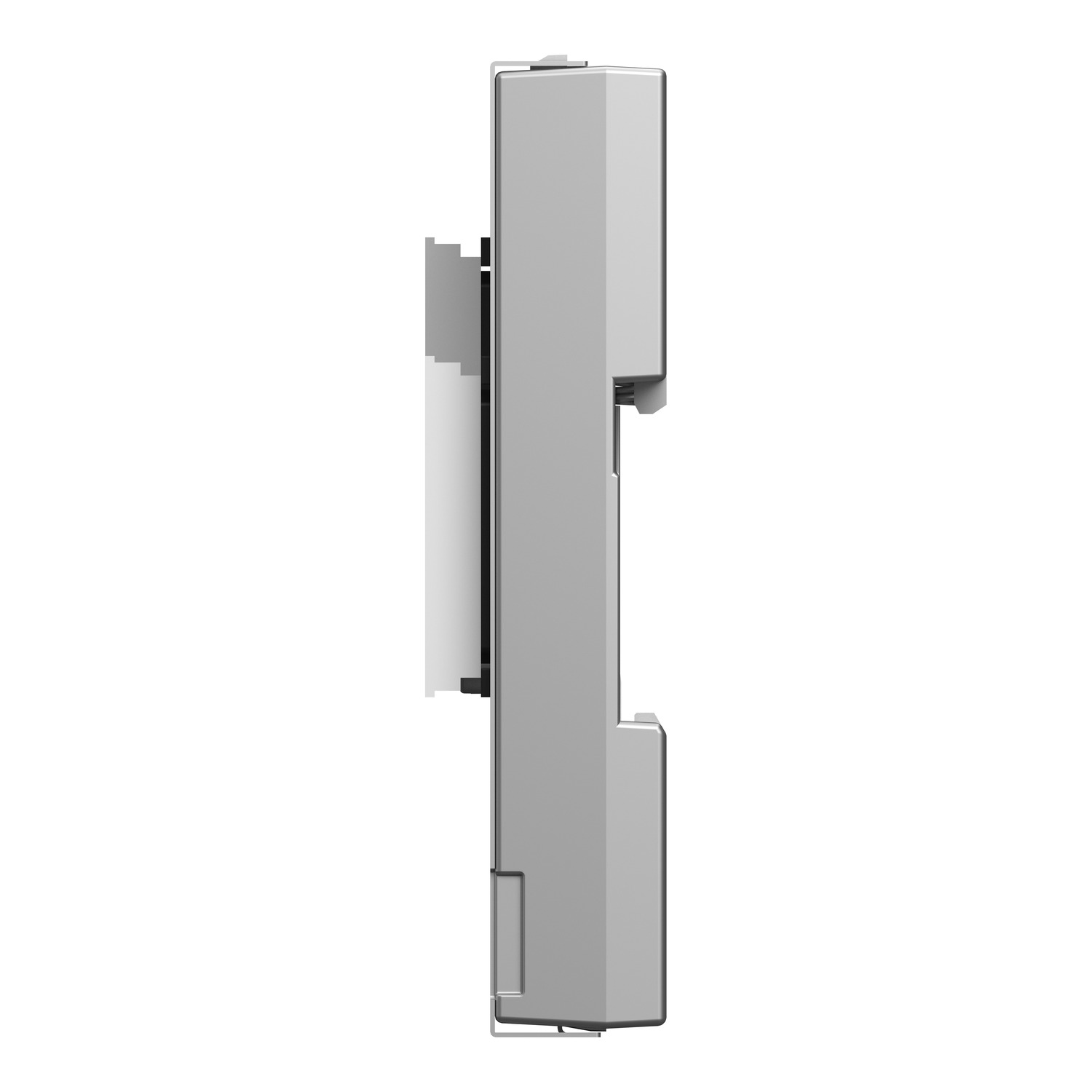

Rack X80 - 4 slots - Ethernet backplane

Rack X80 - 4 slots - Ethernet backplane by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell, RS Components and 1 more. It is currently in stock at 3 of them. Trade prices range from £150.99 to £197.38 excl. VAT. Voltimum+ members earn 24 points per unit.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 4-slot dual Ethernet and X-bus backplane provides 4 slots with 4 Ethernet and X-bus connectors for mixed modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 118mA at 24V DC and 49mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 2000000 hours of MTBF. It is an IP20 rated product. It weighs 0.705kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Product identifiers

SKU: BMEXBP0400
EAN: 3595864174037
GTIN: 3595864174037
MPN: BMEXBP0400

Voltimum+ Loyalty Programme Loyalty points: 24

Price range: £ 150.99 - £ 197.38 Excl. VAT

Categories

Computing & Peripherals Peripherals

ETIM group

Programmable logic controllers PLC

Specifications

Depth 19 mm
Width 242.4 mm
Height 105.11 mm
Redundancy no
Number of slots 4
Input voltage DC
Output voltage DC
Max. input current DC 118 A
Input voltage AC 60 Hz
Rack-assembly possible yes
Front built-in possible yes
Output voltage AC 60 Hz
Suitable for rail mounting yes
Max. input current AC 60 Hz -
Max. output current AC 60 Hz -
Suitable for safety functions no
Type of voltage (input voltage) AC/DC
Appendant operation agent (Ex ib) no
Explosion safety category for dust None

Documents

Declaration of Conformity (Sustainability)

BMEXBP0400 REACh Regulation

Open

User guide

Modicon X80 - Racks and Power Supplies, Hardware Reference Manual

Open

Instruction sheet

X80 / M580 / M340, Instruction Sheet

Open

Product data sheet

Open

Catalog

Catalog of Modicon X80 Modules

Open

Declaration of Conformity (Sustainability)

BMEXBP0400 EU RoHS Directive

Open

Declaration of conformity

Modicon M580 M340 X80, Declaration of Conformity, EU CE, Schneider Electric

Open

Environmental Disclosure

Modicon X80 - Rack / backplane, Product Environmental Profile

Open
