CM-MSS.12S Therm. motor protec. relay 1c/o, 24VAC/DC
1 / 4
CM-MSS.12S Therm. motor protec. relay 1c/o, 24VAC/DC
CM-MSS.12S Therm. motor protec. relay 1c/o, 24VAC/DC by ABB is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, Rexel Group and 1 more. It is currently in stock at 2 of them. Trade prices range from £55.86 to £79.80 excl. VAT. Voltimum+ members earn 38 points per unit.

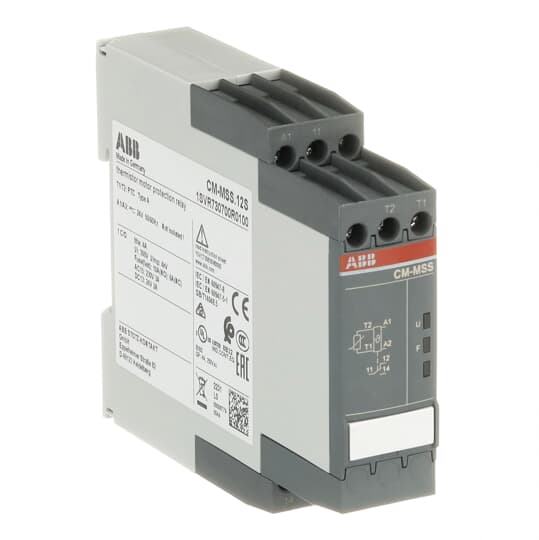

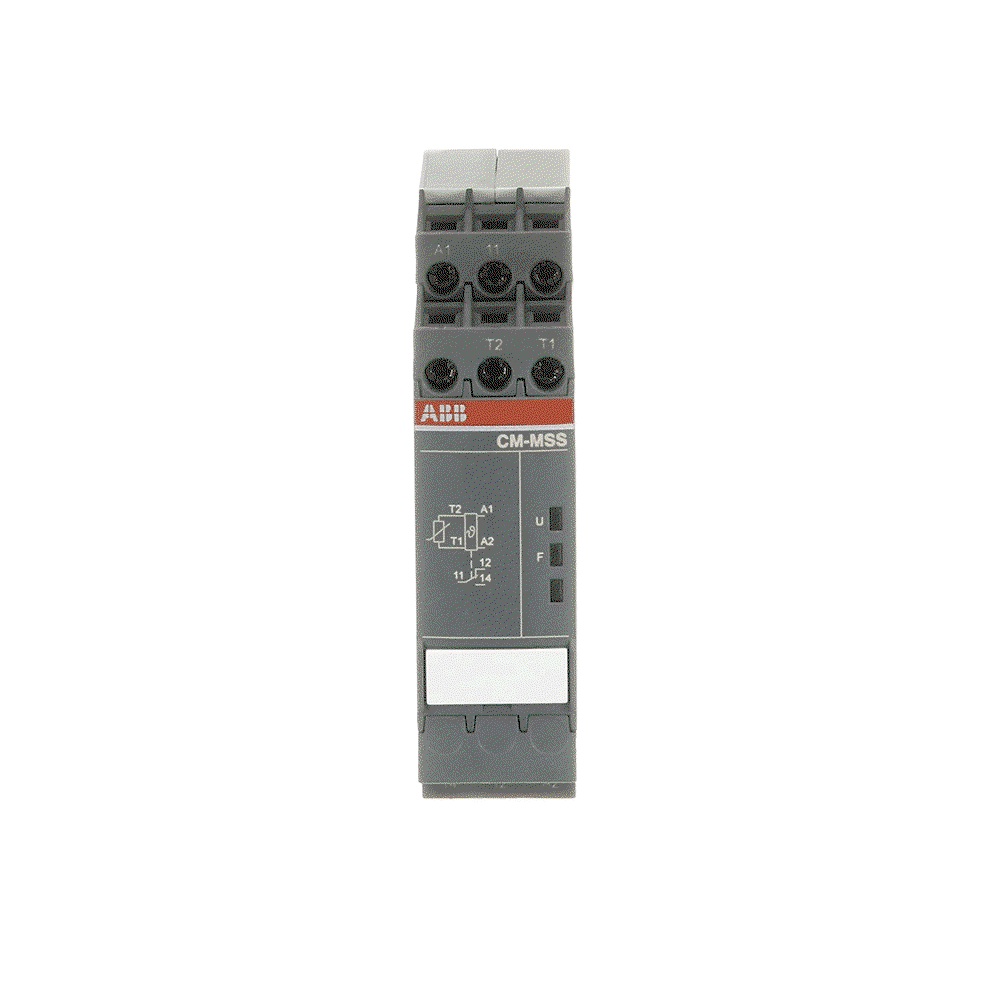

The CM-MSS.12S belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 24 V AC/DC and has a 1 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay will be reset automatically after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Product identifiers
SKU: 1SVR730700R0100
EAN: 4013614496721
GTIN: 4013614496721
MPN: CM-MSS.12S
Loyalty points:
38
Price range: £ 55.86 - £ 79.80 Excl. VAT
Categories
Specifications
| Depth | 103.7 |
| Width | 22.5 |
| Height | 85.6 |
| Supply voltage DC | |
| Operating voltage DC | |
| Rated switch current | - |
| With detachable clamps | no |
| External reset possible | no |
