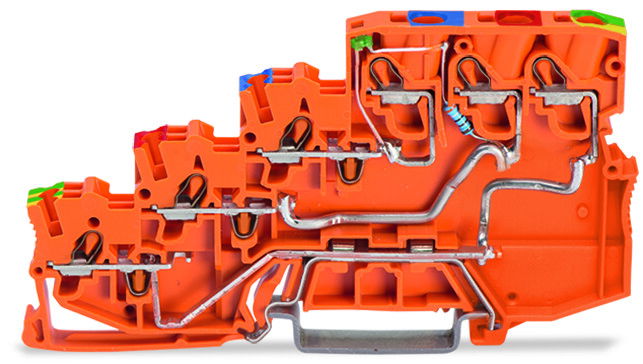

4-conductor sensor supply terminal block LED (green) Power supply from control panel side orange
Wago

4-conductor sensor supply terminal block LED (green) Power supply from control panel side orange

4-conductor sensor supply terminal block; LED (green); Power supply from control panel side; with ground contact; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; orange

Product identifiers

SKU: 2000-5457/1102-953
EAN: 4055143533195
GTIN: 4055143533195
MPN: 2000-5457/1102-953

Voltimum+ Loyalty Programme Loyalty points: 4 (x15)

Price range: £ 9.70 - £ 40.96 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 49.4
Width 7
Colour Orange
Height 97.3
Rated voltage 24
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 4
Rated current In 28
LED switching for No
Colour light source Green
Operating temperature 105 - 105
With shield connection no
With power supply function yes
Explosion-tested version 'Ex e' no
Type of electrical connection 2 Spring clamp connection
Connectable conductor cross section solid-core 0.5 - 1.5
Inflammability class of insulation material according to UL94 -
Connectable conductor cross section fine-strand without cable end sleeve 0.14 - 1.5
