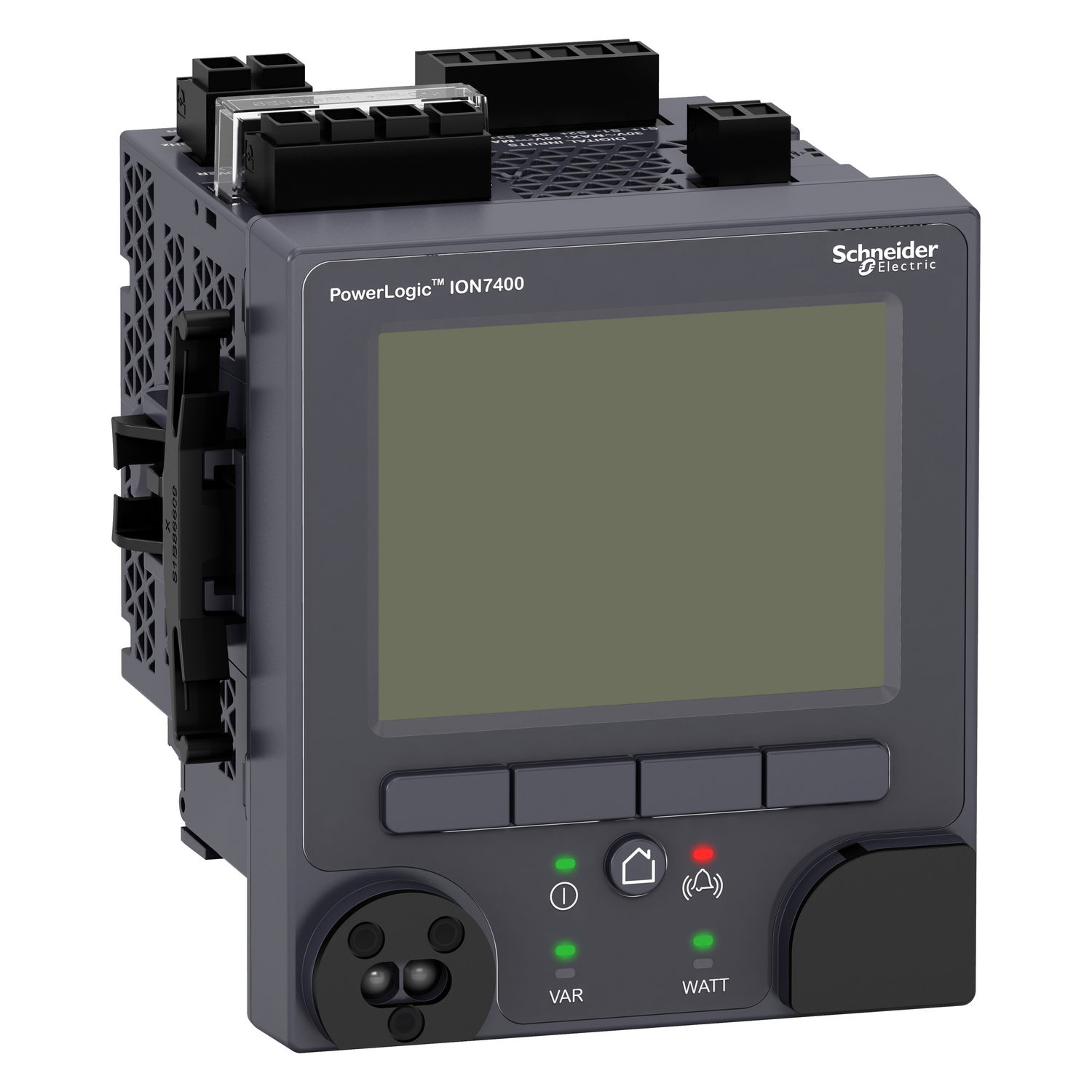

PowerLogic ION7410 LV DC - Panel mount meter - display - optical port and 2 puls

Link copied
SKU
EAN
GTIN
MPN
PowerLogic ION7400 utility feeder power meters combine capabilities not typically available in compact meters. They offers a hight flexibility and usability, along with accurate 3-phase energy and power measurements with data logging. Use Power Monitoring Expert software for data analysis or share operation data with SCADA systems through multiple communication channels and protocols. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 16 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 20-60 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. Panel mounting (1/4 DIN) with integrated display.

Voltimum+ Loyalty Programme Loyalty points: 343

Price: £ 2,060.00 Excl. VAT

Specifications

Depth 78.5 mm
Model Measurement transformer
Width 98 mm
Height 112 mm
Display Graphic
Pole type Three conductor/four conductor
Voltmeter yes
Calibrated yes
Power factor yes
Pulse counter no
Remote display no
Mounting method Front mounting
Sampling frequency 12800 Hz
Nominal current (In) 5 A
Step angle (cos phi) yes
Harmonics measurement yes
Supply voltage AC 50 Hz
With firmware signature no
Number of analogue inputs 0
Number of analogue outputs 0
Display resolution (vertical) 240 px
Measuring range for frequency
Number of Ethernet connections 2
With audit logging (audit log) yes
Supporting protocol for PROFIBUS no
Wth communication interface M-Bus no
Supporting protocol for PROFINET IO no
Number of current measurement inputs 8
Degree of protection (IP), front side Other
With Role Based Access Control (RBAC) no
Supporting protocol for other bus systems yes
Connectable conductor cross section solid-core
Accuracy class active energy according to IEC 62053-22 0.2S
