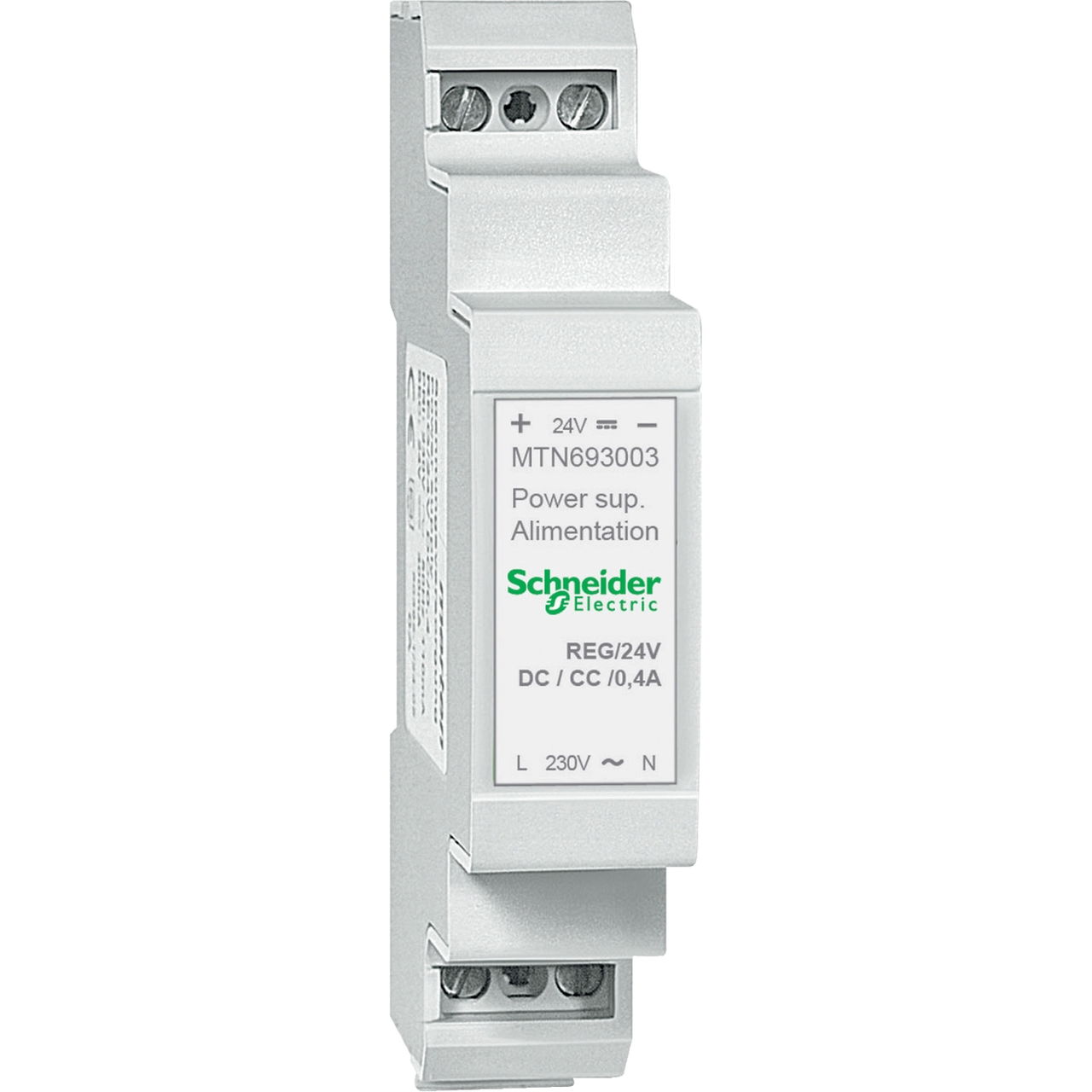

Power supply REG, 24 V DC / 0.4 A, light grey
Schneider Electric

Power supply REG, 24 V DC / 0.4 A, light grey

Power supply REG, 24 V DC / 0.4 A. Power supply for 24 V binary inputs. With integrated overload and short-circuit protection. For installation on DIN rails TH35 according to EN 60715. Primary supply: AC 230 V, 48-63 Hz. Output voltage: DC 24 V +/- 3 %. Output current: max. 0.4 A. Output power: max. 10 W. Device width: 1 modules, approx. 18 mm. Colour: light grey.

Product identifiers

SKU: MTN693003
EAN: 3606485012452
GTIN: 3606485012452
MPN: MTN693003

Voltimum+ Loyalty Programme Loyalty points: 1

Price: £ 147.89 Excl. VAT

Categories

Power Supplies Transformers & Power Supplies

Specifications

Depth 68.1 mm
Width 17.5 mm
Height 92 mm
Stabilized yes
Power output 9.6 W
Built-in width 18 mm
Built-in height 68.1 mm
Modular version yes
Short-circuit-proof no
Max. output current 2 -
Wall mounting possible no
Direct mounting possible no
Output voltage stabilized yes
Suitable for rail mounting yes
Type of electric connection Screw connection
2nd secondary output voltage
Secondary voltage adjustable no
Rated supply voltage AC 60 Hz
Voltage type (supply voltage) DC
Nominal value output current 2 -
Nominal value output voltage 1 24 V
Nominal value output voltage 3 -
Performance level according to EN ISO 13849-1 None
