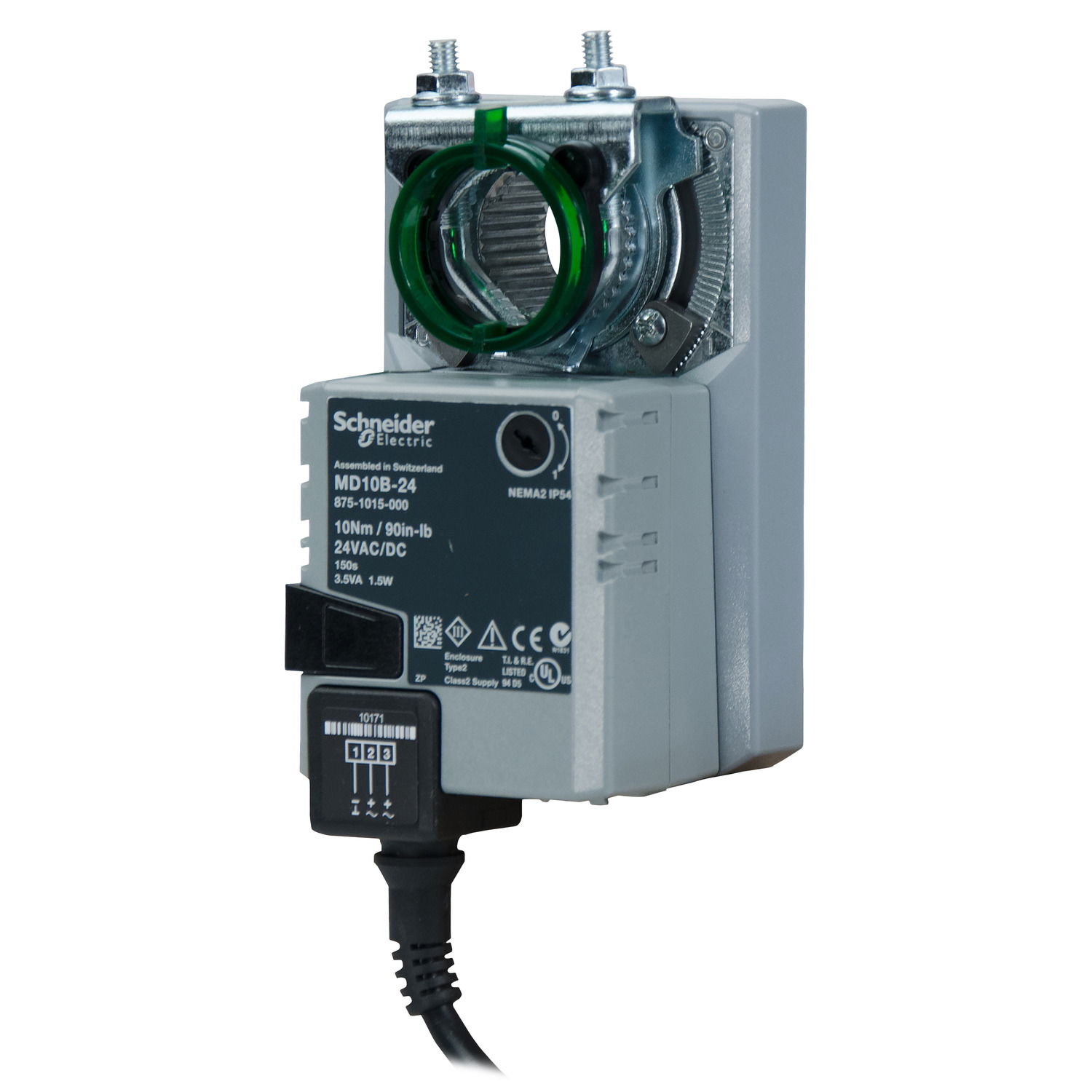

Act: Elec, 2Pos, NSR, 24 VAC/VDC, 1m Leads, 10 Nm, IP54, Opt SPDT

Link copied
SKU
EAN
GTIN
MPN

Act: Elec, 2Pos, NSR, 24 VAC/VDC, 1m Leads, 10 Nm, IP54, Opt SPDT by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £311.93 excl. VAT. Voltimum+ members earn 33 points per unit.

The MD1B is on/off damper actuator designed for operating air control dampers in ventillation and air conditioning systems for building services installations. The damper actuator can be used with mounting kits to drive selected Butterfly and Shoe valves. The actuator is maintenance free, with mechanical position indication. Supply voltage: 24 Vac/Vdc +/- 2%. Control signal: on/off. Torque: 1 Nm, IP 54 Protection class. Angle of rotation: Max. 95°, adjustable by mechanical stops. Connection cable 1 m, 3 x .75 mm² (AW 18).

Voltimum+ Loyalty Programme Loyalty points: 33

Price: £ 311.93 Excl. VAT

Specifications

Depth -
Model Rotating
Width 130 mm
Height 77 mm
Torque 10 Nm
End contacts 1
Transmission -
Stroke length -
Operating time 150 s
Adjusting force -
Housing material Other
Auxiliary contacts yes
Ambient temperature
Max. angle of rotation 95 °
Communications protocol -
Deactivated when closed no
Connection to stop valve None
Max. electric power input 3.5 VA
Adjustable operating range yes
Regulation type modulating no
Suitable for air accessory yes
Auxiliary contacts optional no
Automatic stroke recognition no
Potential free switch contact yes
Suitable for manual operation yes
With mechanical setting indicator yes
Principle of operation safety function NO/NC (depends on mounting)

Documents

Declaration of Conformity (Sustainability)

8751015000 REACh Regulation

Open

Instruction sheet

MD10.. Modulating Damper Actuator

Open

Product data sheet

Open

Catalog

2026 EMEA-APAC Valves & Actuators Product Catalog

Open

Declaration of Conformity (Sustainability)

8751015000 EU RoHS Directive

Open

Declaration of conformity

Declaration of Conformity for MD_5_10_20 series

Open
