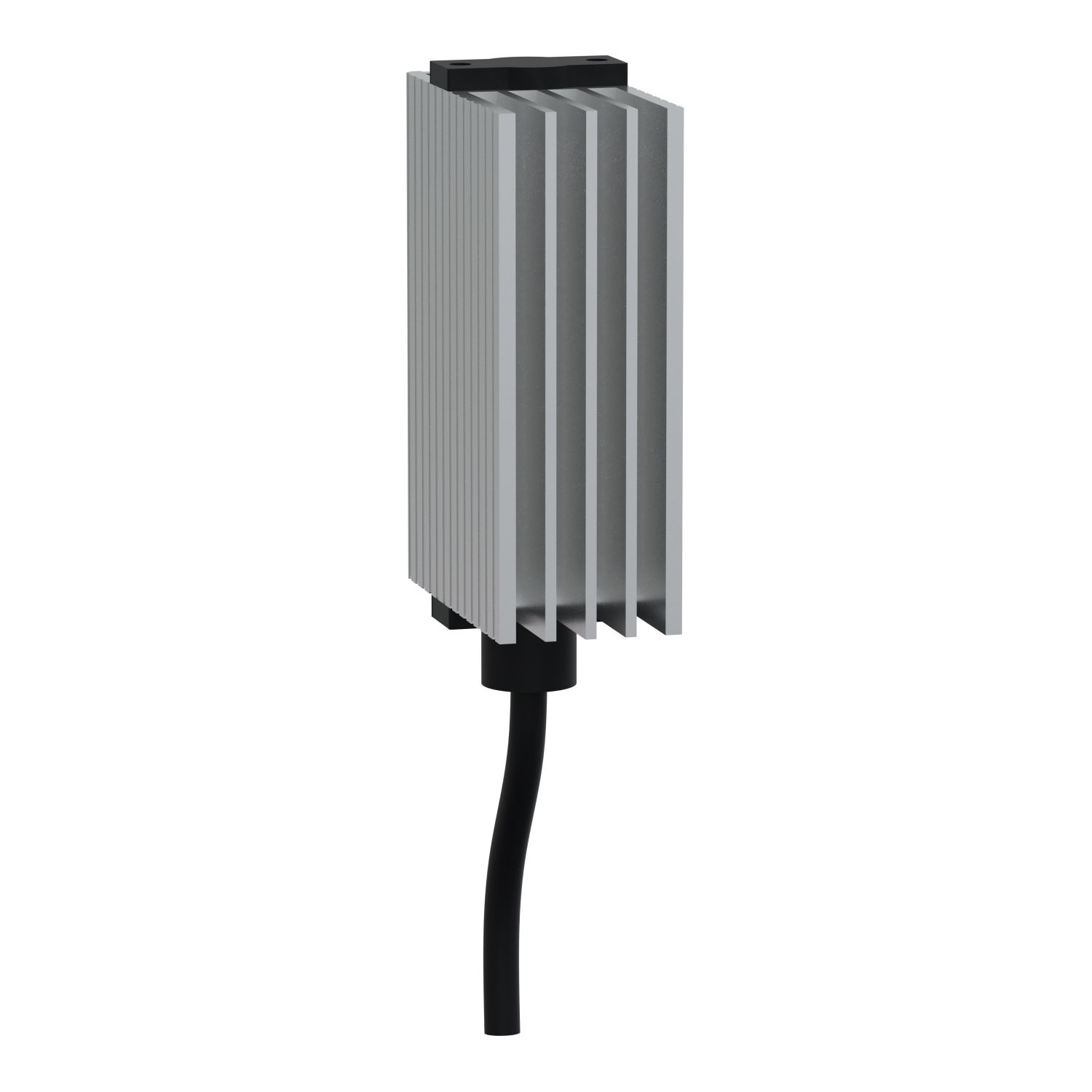

ClimaSys PTC heating resistance 10W, 12-24V
ClimaSys PTC heating resistance 10W, 12-24V
ClimaSys PTC heating resistance 10W, 12-24V by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and RS Components. It is currently in stock at 1 of them. Trade prices range from £48.07 to £48.87 excl. VAT. Voltimum+ members earn 5 points per unit.
ClimaSys PTC heating resistance. 10W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Product identifiers
SKU: NSYCR10WU1
EAN: 3606480152108
GTIN: 3606480152108
MPN: NSYCR10WU1
Loyalty points:
5
Price range: £ 48.07 - £ 48.87 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 75 mm |
| Width | 38 mm |
| Height | 98 mm |
| With fan | no |
| Rated power | 10 W |
| Voltage type | DC |
| Operating voltage DC | |
| Degree of protection (IP) | IP20 |
