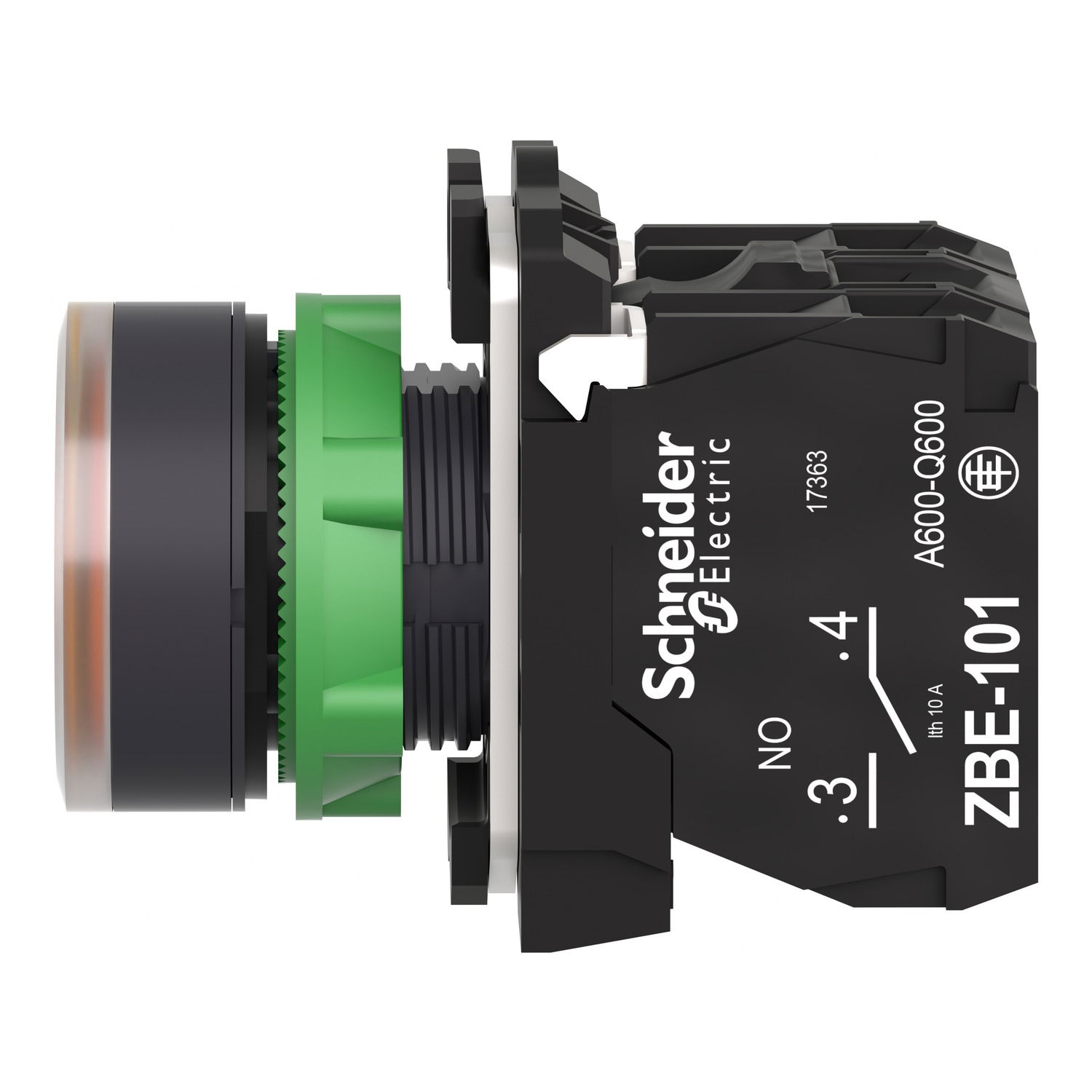

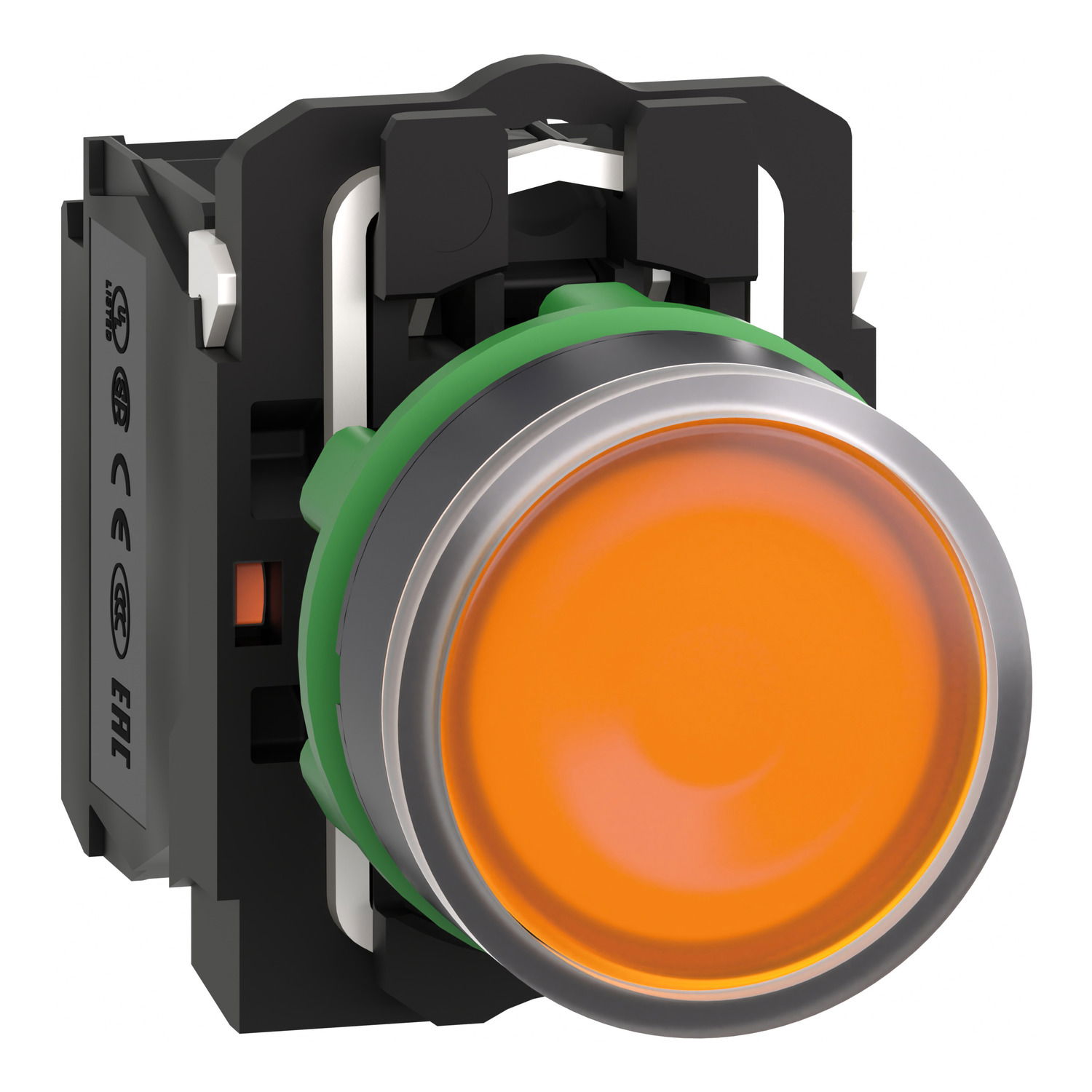

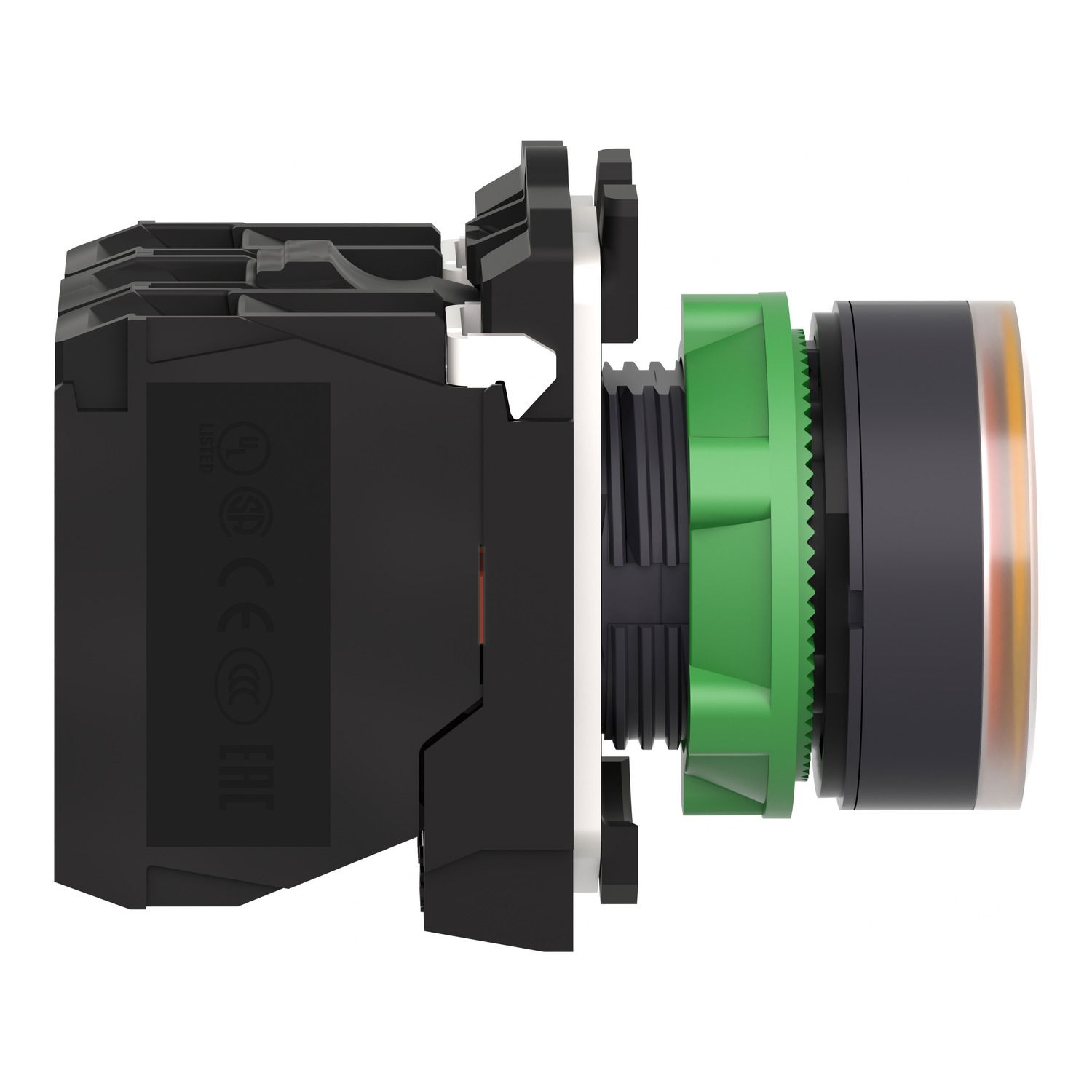

Illuminated push button, Harmony XB5, plastic, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 230...240V AC

Link copied
SKU
EAN
GTIN
MPN

Illuminated push button, Harmony XB5, plastic, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 230...240V AC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £43.16 excl. VAT. Voltimum+ members earn 5 points per unit.

This Harmony XB5, illuminated modular orange push button operates with a spring return mechanism, is supplied with 220V to 240V AC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Voltimum+ Loyalty Programme Loyalty points: 5

Price: £ 43.16 Excl. VAT

Specifications

Transparent yes
Colour button Orange
Hole diameter 22.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button Flat
With front ring yes
Material front ring Plastic
Suitable for lighting yes
Degree of protection (IP) IP66
Number of command positions 1
Type of electric connection Screw connection
Number of contacts as normally open contact 1

Documents

Declaration of Conformity (Sustainability)

XB5AW35M5 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB5 plastic Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

XB5AW35M5 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

750 Series Hermetically Sealed Relay

Open

Circularity Profile

750 Series Hermetically Sealed Relay

Open
