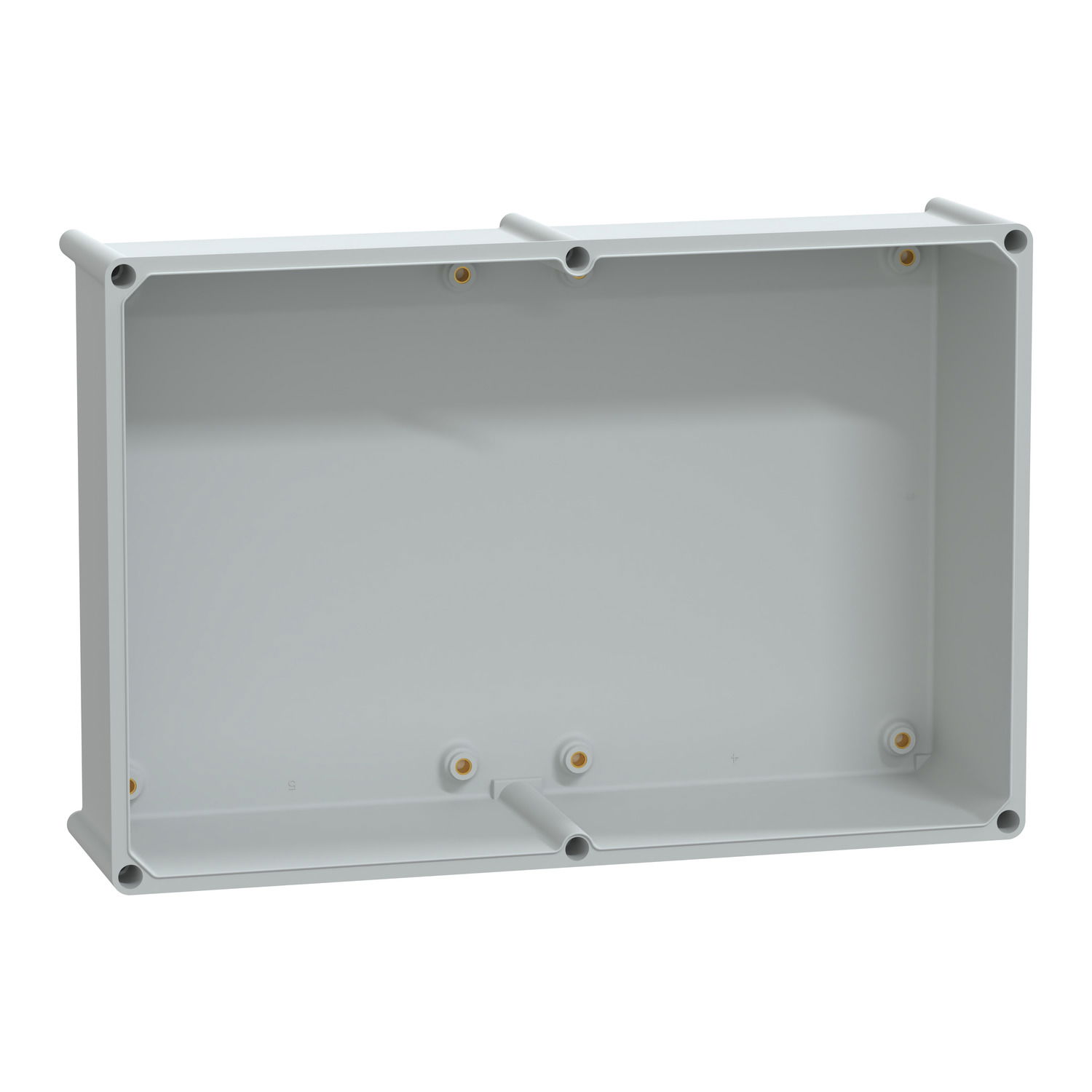

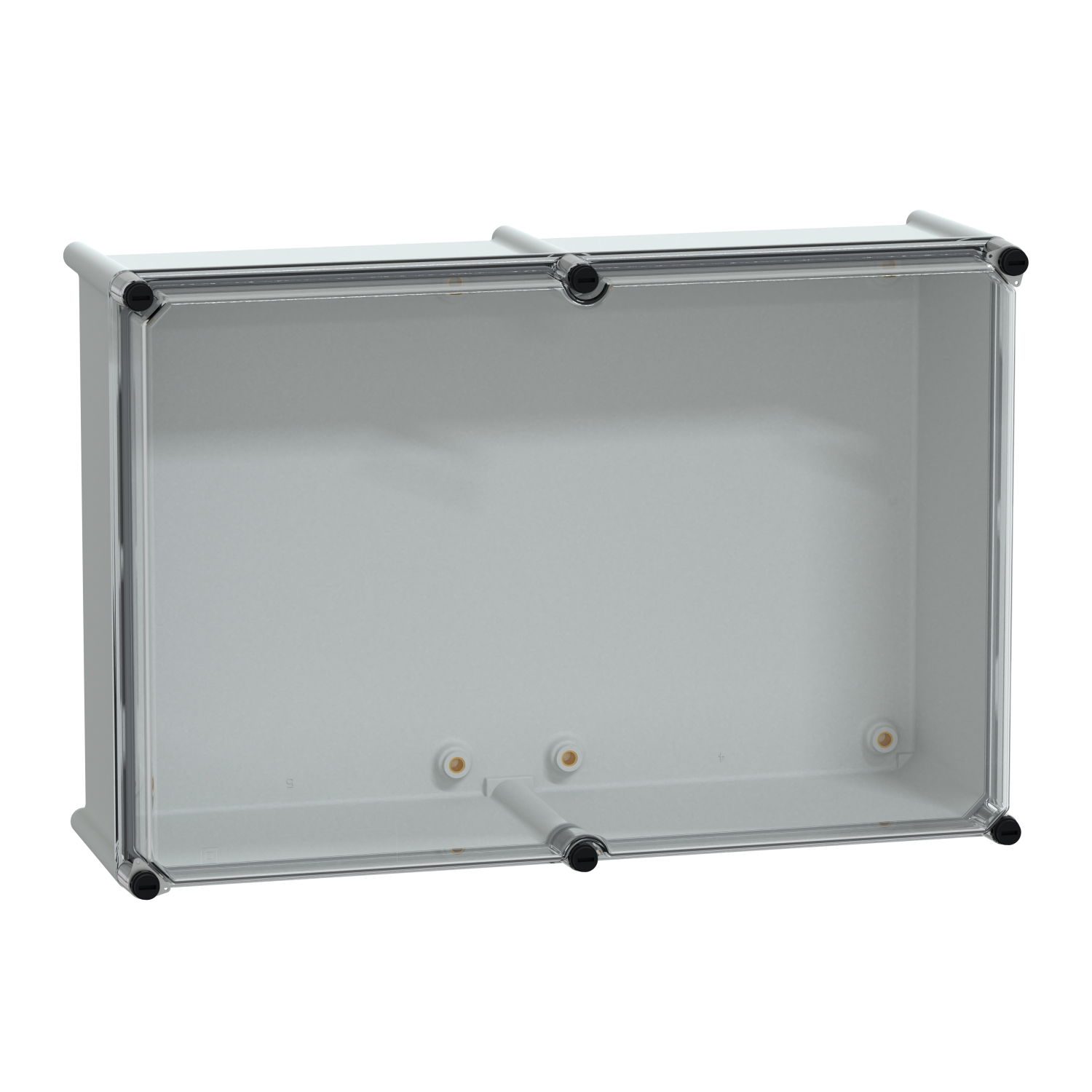

PLS box, polyester rear, transparent PC cover IP65 36x54x18cm

Link copied
SKU
EAN
GTIN
MPN

PLS box, polyester rear, transparent PC cover IP65 36x54x18cm by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components and City Electrical Factors. It is currently in stock at 2 of them. Trade prices range from £129.92 to £144.20 excl. VAT. Voltimum+ members earn 18 points per unit.

Thalassa PLS box polyester rear with transparent PC cover. 360 x 540 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.

Voltimum+ Loyalty Programme Loyalty points: 18

Price range: £ 129.92 - £ 144.20 Excl. VAT

Specifications

Depth 180 mm
Width 540 mm
Colour Grey
Height 360 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 164 mm
Built-in depth -
Impact strength IK09
Housing material Plastic
Circuit integrity None
Extension possible yes
With mounting plate no
Transparent cover/door yes
Suitable for outdoor use yes
Degree of protection (NEMA) 4X
Material plate thickness cabinet 2 mm
Material plate thickness door/cover 3 mm
Number of openings for flange plates -
