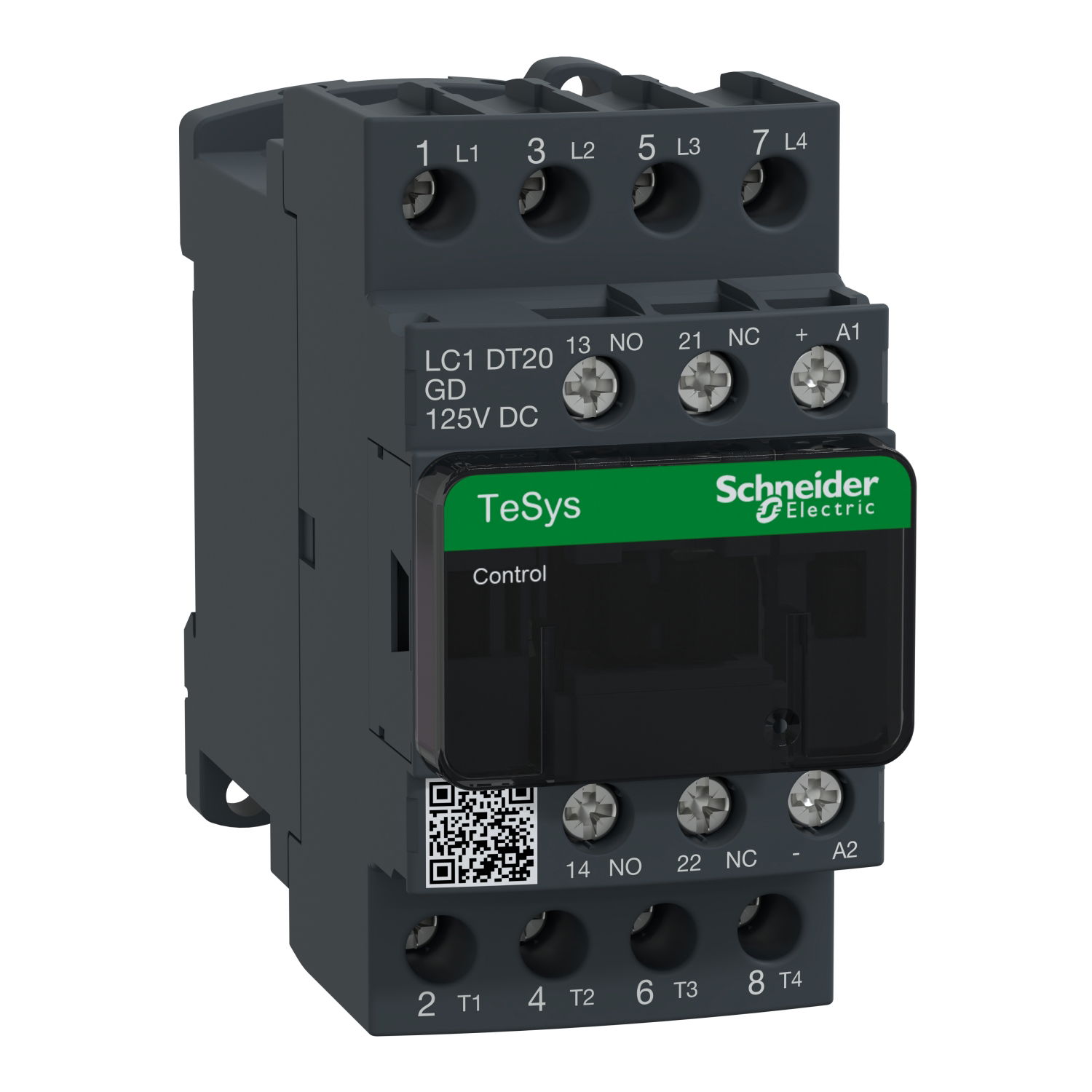

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 20 A - 125 V DC standard coil

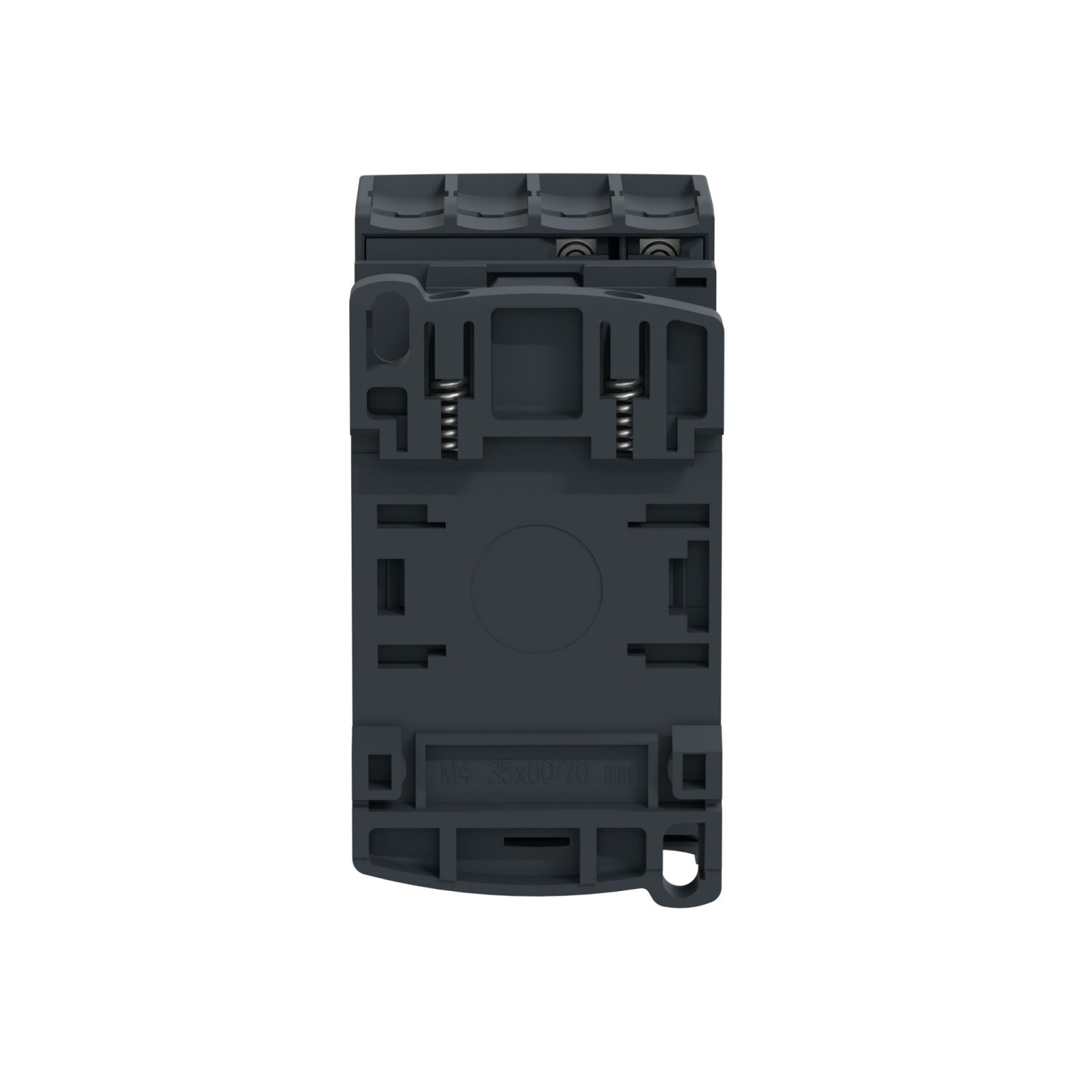

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 20 A - 125 V DC standard coil – Image 2 of 5

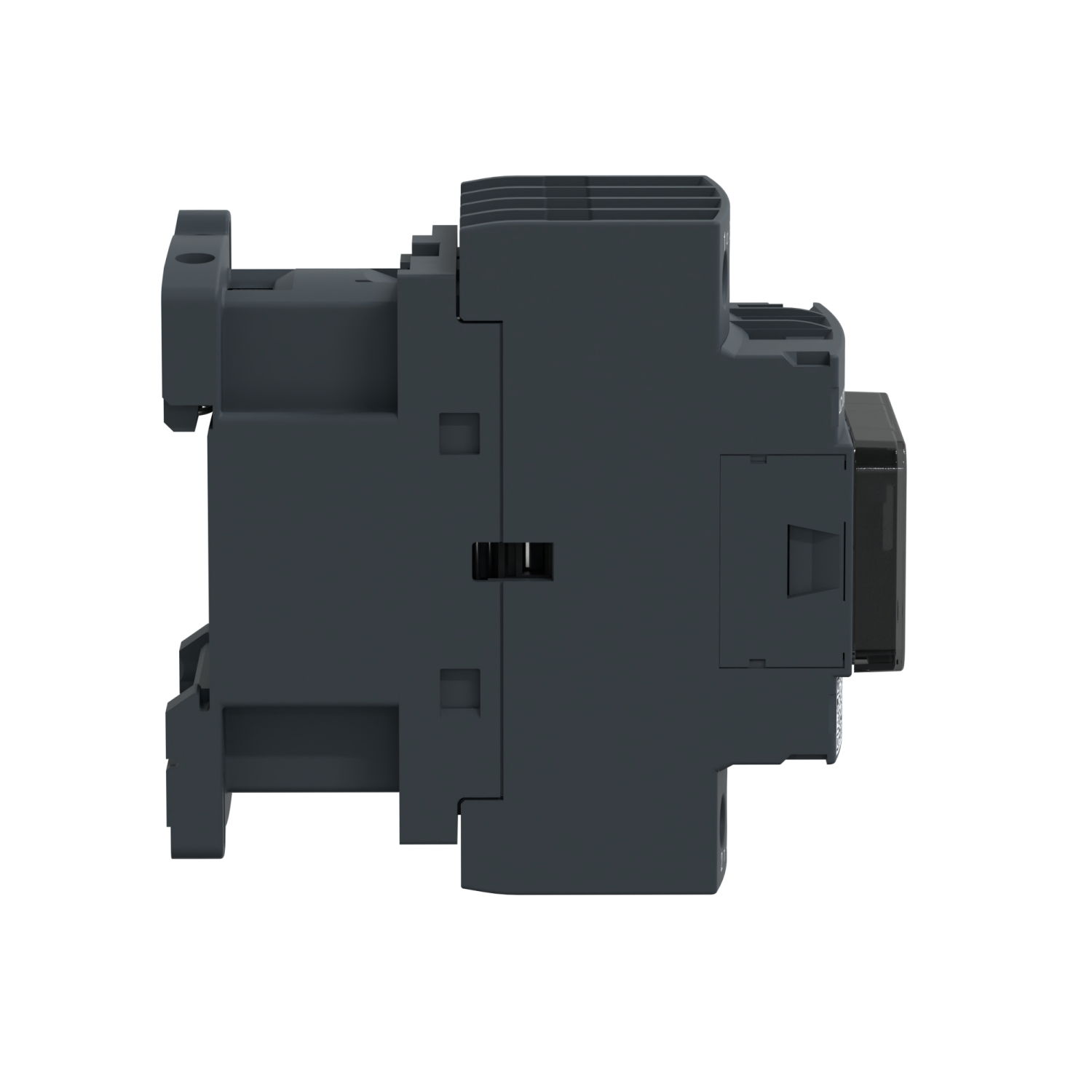

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 20 A - 125 V DC standard coil – Image 3 of 5

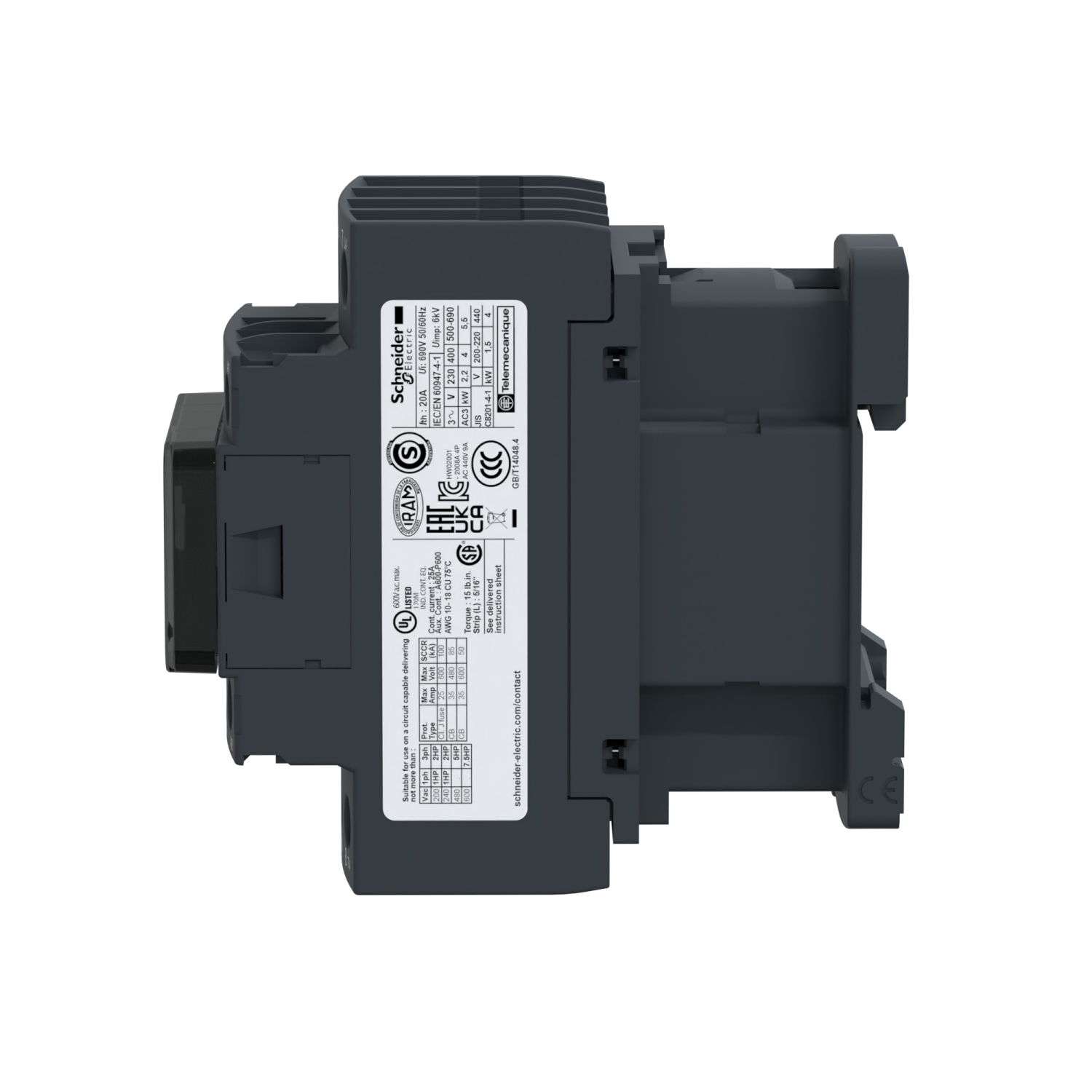

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 20 A - 125 V DC standard coil – Image 4 of 5

1 / 5

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 20 A - 125 V DC standard coil

Name: TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 20 A - 125 V DC standard coil
Brand: Schneider Electric
SKU: LC1DT20GD
Availability: InStock

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 20 A - 125 V DC standard coil by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £88.25 excl. VAT. Voltimum+ members earn 11 points per unit.

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 20A/690V AC-1. It provides a 125V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LC1DT20GD

EAN: 3389110320688

GTIN: 3389110320688

MPN: LC1DT20GD

Loyalty points: 11

Price: £ 88.25 Excl. VAT

Specifications

Depth	99 mm
Width	45 mm
Height	85 mm
Modular version	no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	-
Voltage type for actuating	DC
Rated control supply voltage DC
Rated operation power at AC-3, 400 V	-
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	20 A
Rated operation current Ie at AC-3, 400 V	-
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	4
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
