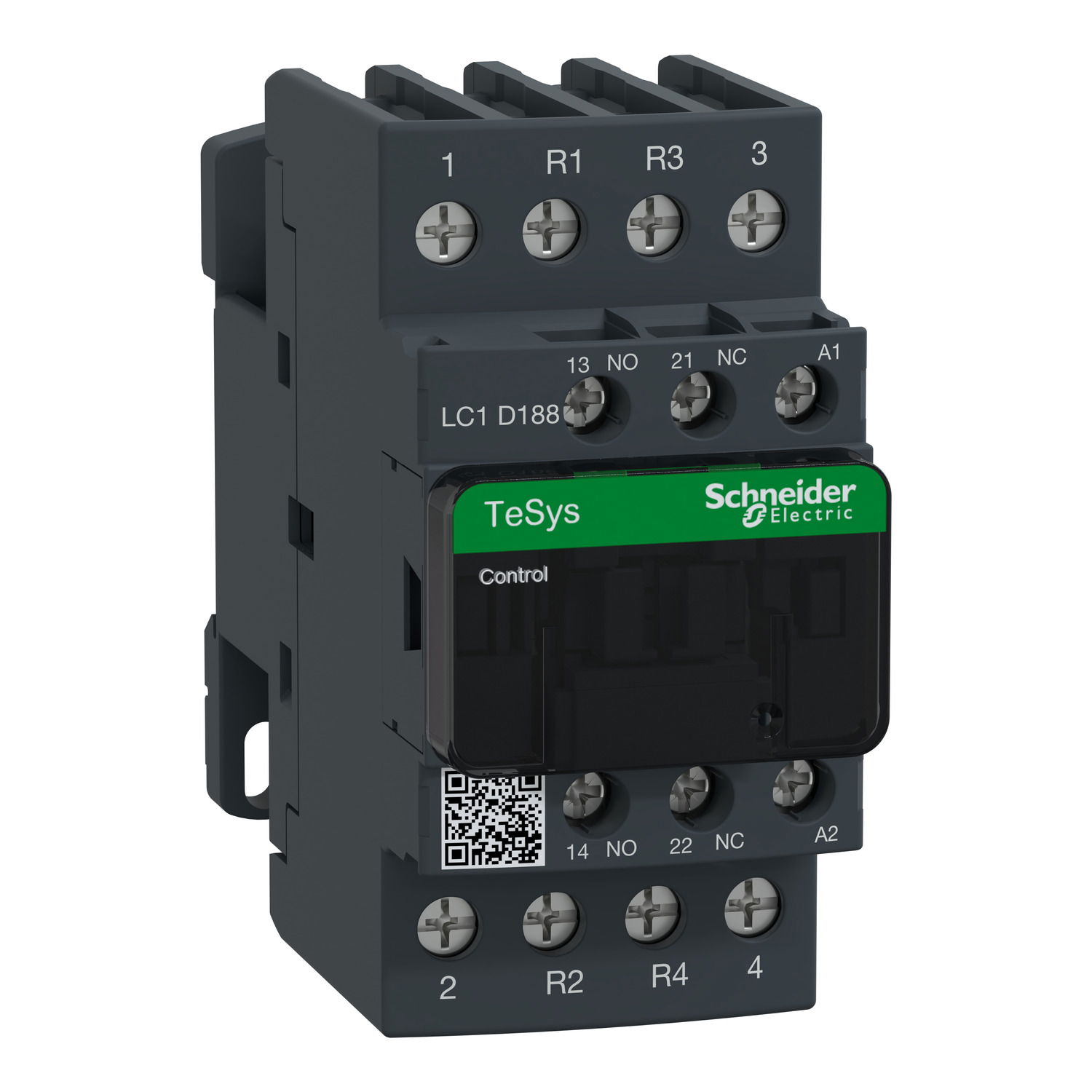

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 32 A - 42 V AC coil
1 / 5
TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 32 A - 42 V AC coil
TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 32 A - 42 V AC coil by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia and Farnell. It is currently in stock at 1 of them. Trade prices range from £58.77 to £95.71 excl. VAT. Voltimum+ members earn 12 points per unit.
TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 32A/690V AC-1. It provides a 42V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1D188D7
EAN: 3389110291322
GTIN: 3389110291322
MPN: LC1D188D7
Loyalty points:
12
Price range: £ 58.77 - £ 95.71 Excl. VAT
ETIM group
Specifications
| Depth | 99 mm |
| Width | 45 mm |
| Height | 91 mm |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | AC |
