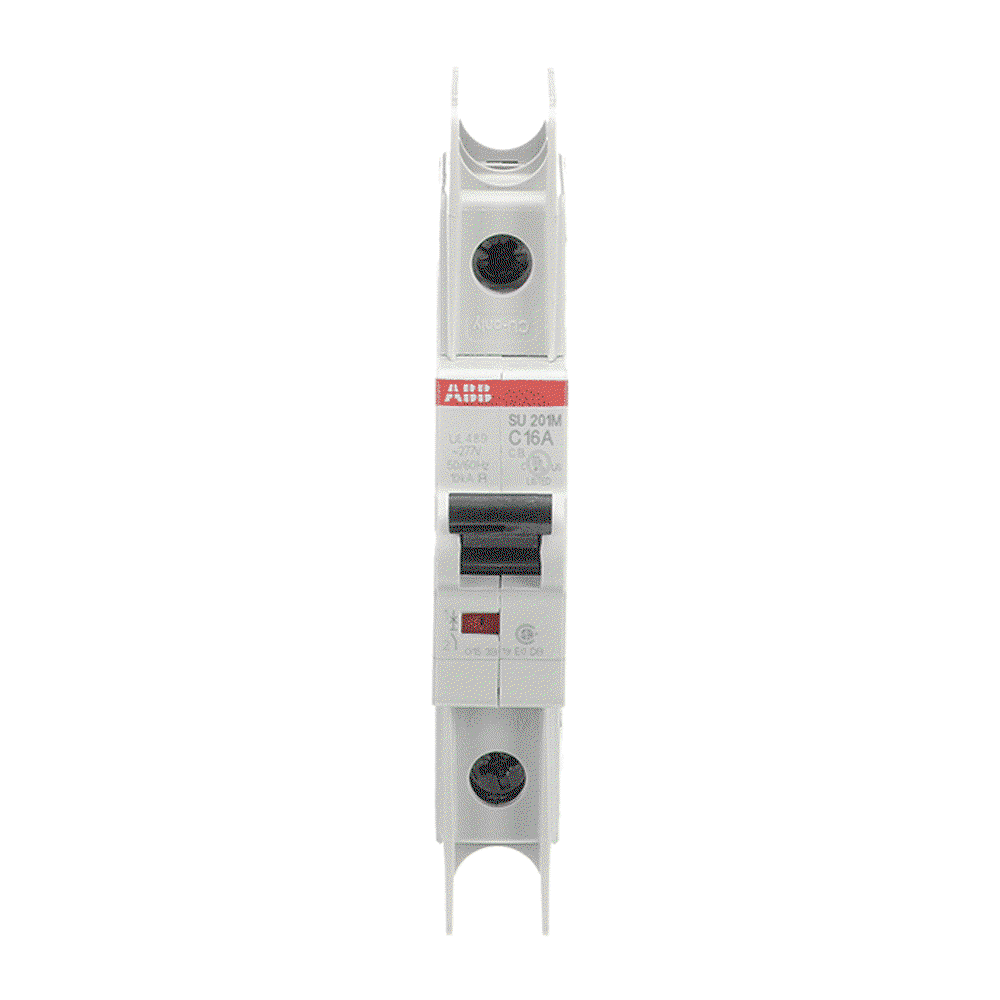

Miniature Circuit Breaker - SU200M - 1P - 16 A - C - (230 V AC) 11.2 kA

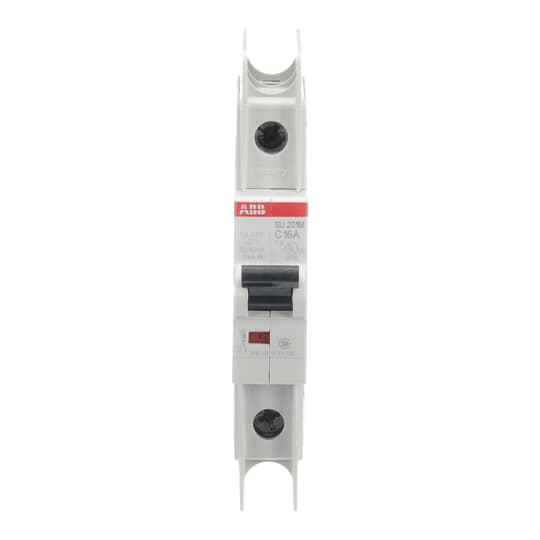

Miniature Circuit Breaker - SU200M - 1P - 16 A - C - (230 V AC) 11.2 kA – Image 2 of 4

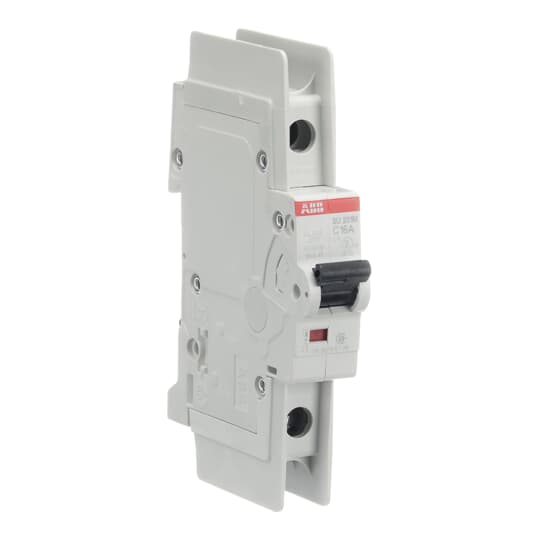

Miniature Circuit Breaker - SU200M - 1P - 16 A - C - (230 V AC) 11.2 kA – Image 3 of 4

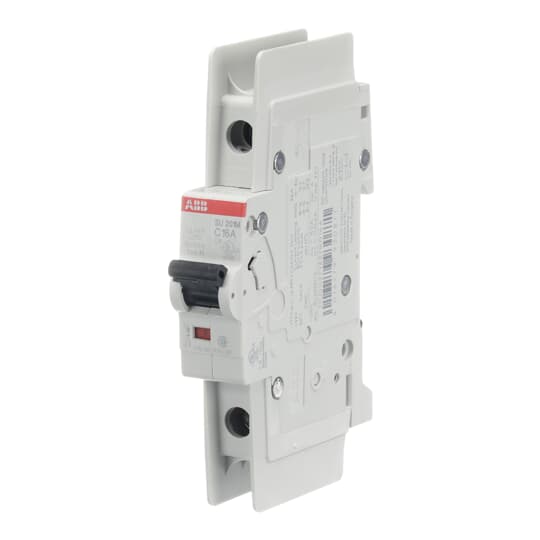

Miniature Circuit Breaker - SU200M - 1P - 16 A - C - (230 V AC) 11.2 kA – Image 4 of 4

1 / 4

Miniature Circuit Breaker - SU200M - 1P - 16 A - C - (230 V AC) 11.2 kA

Name: Miniature Circuit Breaker - SU200M - 1P - 16 A - C - (230 V AC) 11.2 kA
Brand: ABB
SKU: 2CDS271337R0164
Availability: InStock

Miniature Circuit Breaker - SU200M - 1P - 16 A - C - (230 V AC) 11.2 kA by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £47.34 excl. VAT. Voltimum+ members earn 21 points per unit.

SU201M-C16 Miniature Circuit Breaker C-Char., UL10kA, IEC15kA, 16A, 1P UL489

Product identifiers

SKU: 2CDS271337R0164

EAN: 4016779930871

GTIN: 4016779930871

MPN: SU201M-C16

Loyalty points: 21

Price: £ 47.34 Excl. VAT

Specifications

Frequency
Power loss	2.5
Voltage type	AC/DC
Rated current	16
Rated voltage	277
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	C
Number of poles (total)	1
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	1
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	11.2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	15
