THT male header 1.0 x 1.0 mm solder pin straight orange

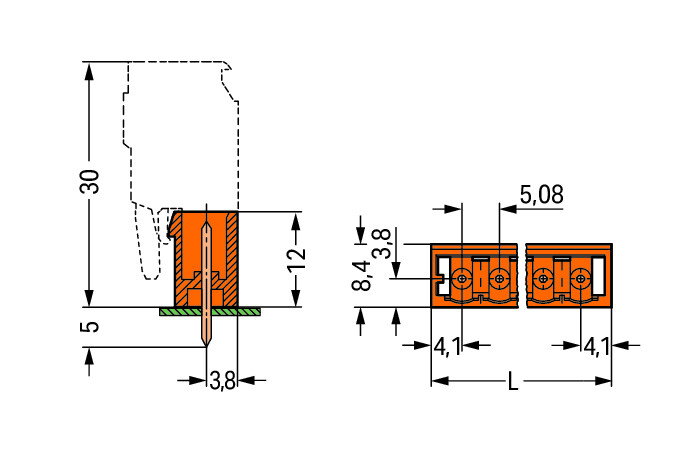

THT male header; 1.0 x 1.0 mm solder pin; straight; Pin spacing 5.08 mm; 8-pole; orange
Product identifiers
SKU: 231-338/001-000
EAN: 4044918865456
GTIN: 4044918865456
MPN: 231-338/001-000
Loyalty points:
3
Price range: £ 1.61 - £ 3.68 Excl. VAT
Categories
Features
|
Length pin
|
5
|
|
Contact type
|
Pin
|
|
Rated voltage
|
320
|
|
Housing colour
|
Orange
|
|
Connector model
|
Free connector
|
|
Number of poles
|
8
|
|
Type of banding
|
None
|
|
Pollution degree
|
2
|
|
Rated current In
|
12
|
|
Angle PCB/contact
|
90° (upwards vertical)
|
|
Type of fastening
|
Solder
|
|
Type of connection
|
Flexible PCB-connector
|
|
Rated surge voltage
|
4
|
|
Operating temperature
|
-60 - 100
|
|
Over voltage category
|
III
|
|
Type of PCB fastening
|
Connecting contact
|
|
Diameter connection pin
|
-
|
|
Material insulation body
|
Thermoplastic
|
|
Modular spacing contacts
|
5.08
|
|
Suitable for PCB thickness
|
1.5
|
|
Material of contact surface
|
Tin
|
|
Modular spacing connections
|
5.08
|
|
Type of electric connection
|
Soldering connection
|
|
Number of plug-in contact rows
|
1
|
|
Inflammability class of insulation material according to UL94
|
V0
|
