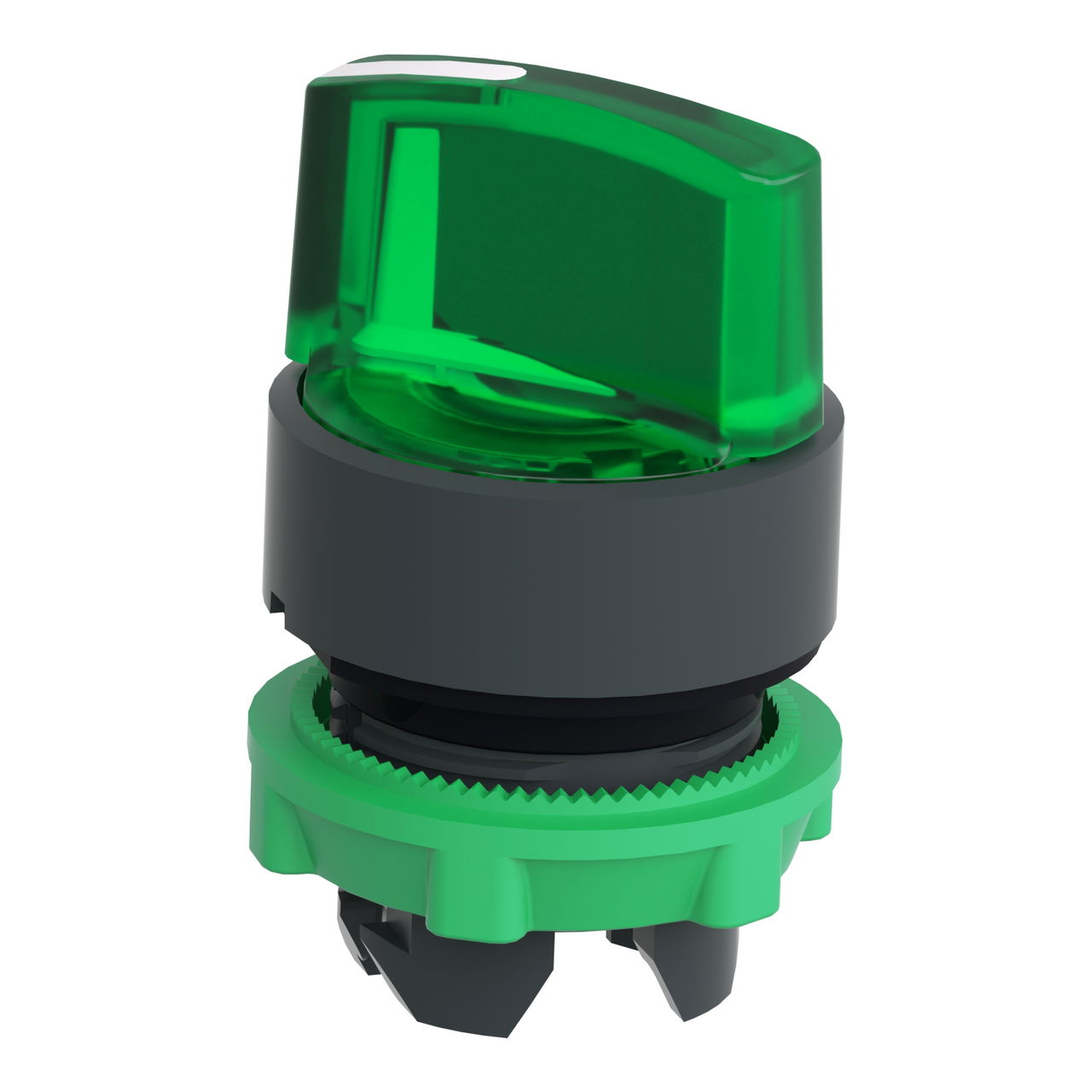

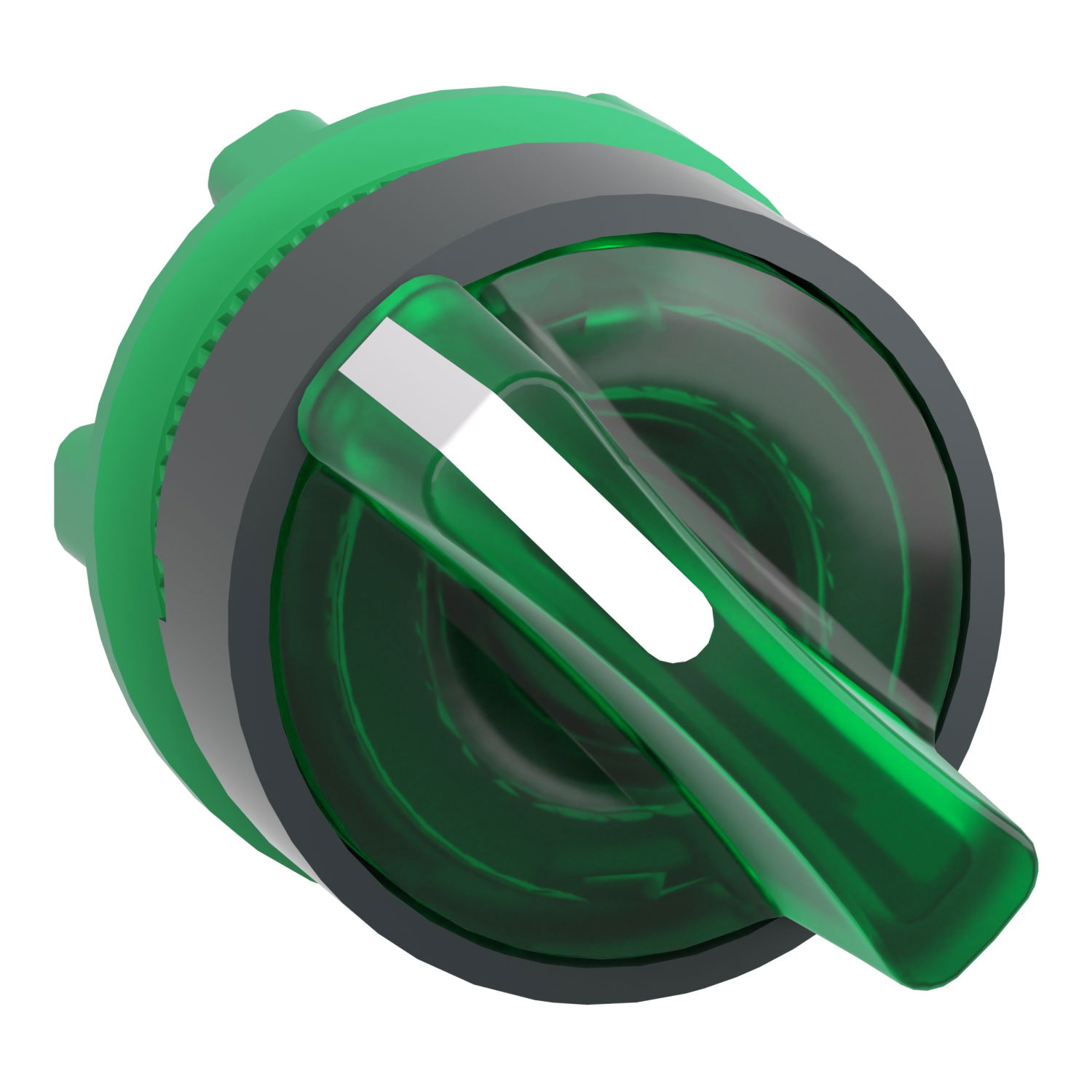

Head for illuminated selector switch, Harmony XB5, Harmony XALF, grey plastic, green handle, 22mm, universal LED, 2 positions

Link copied
SKU
EAN
GTIN
MPN

Head for illuminated selector switch, Harmony XB5, Harmony XALF, grey plastic, green handle, 22mm, universal LED, 2 positions by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at all of them. Trade prices range from £13.67 to £21.95 excl. VAT. Voltimum+ members earn 3 points per unit.

This green illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 13.67 - £ 21.95 Excl. VAT

Specifications

Hole diameter 22.5 mm
Spring-return no
Width opening -
Height opening -
With front ring yes
Colour front ring Black
Material front ring Plastic
Suitable for lighting yes
Construction type lens Round
Colour indicator light cap Green
Degree of protection (NEMA) 13
Degree of protection (IP), front side IP66

Documents

Declaration of Conformity (Sustainability)

ZB5AK1233 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB5 plastic Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

ZB5AK1233 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

XB5 Illuminated Selector Switch, PEP, IA

Open

Circularity Profile

XB5 Illuminated Selector Switch, EOLI, IA

Open
