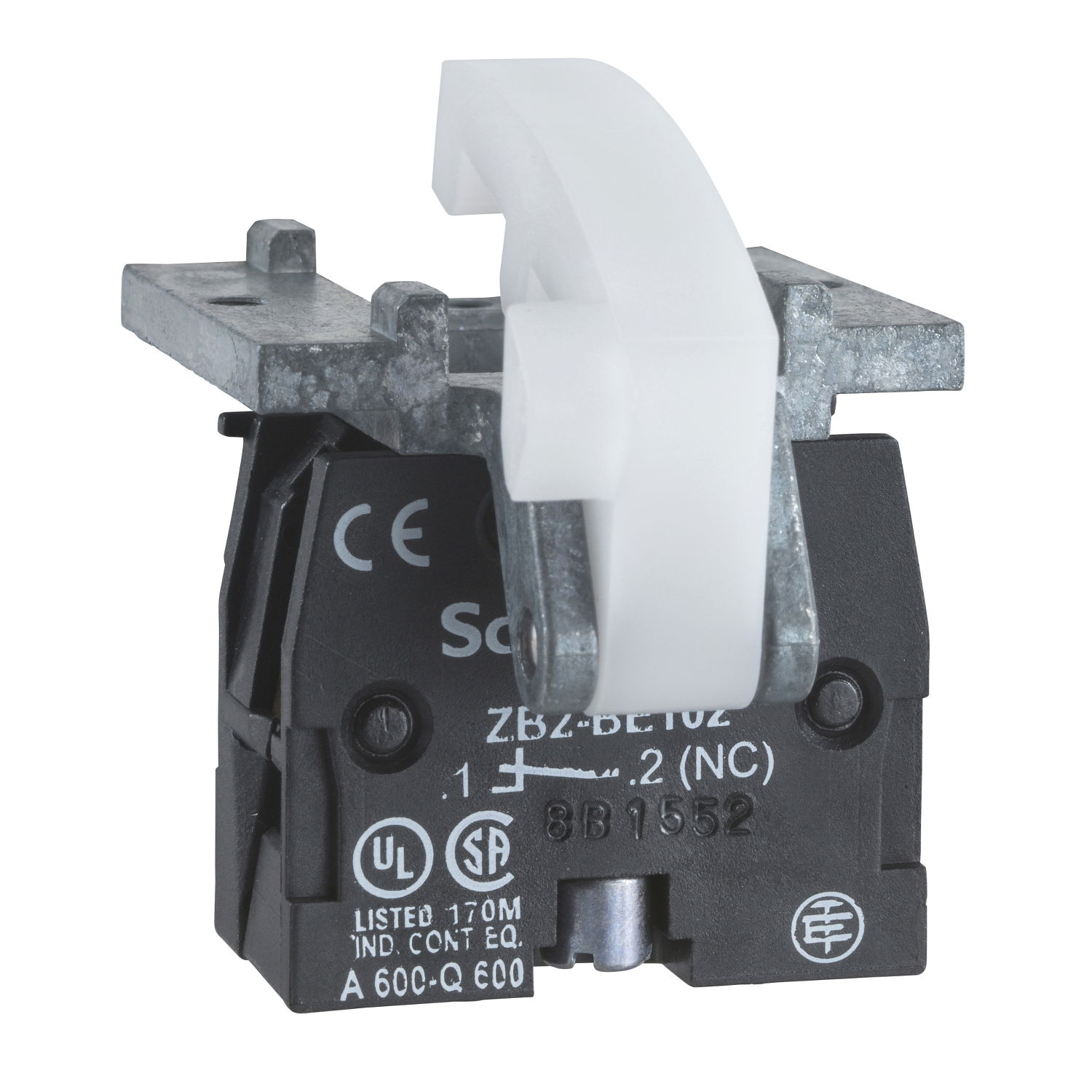

Spring return contact block - 2 NC - base mounting

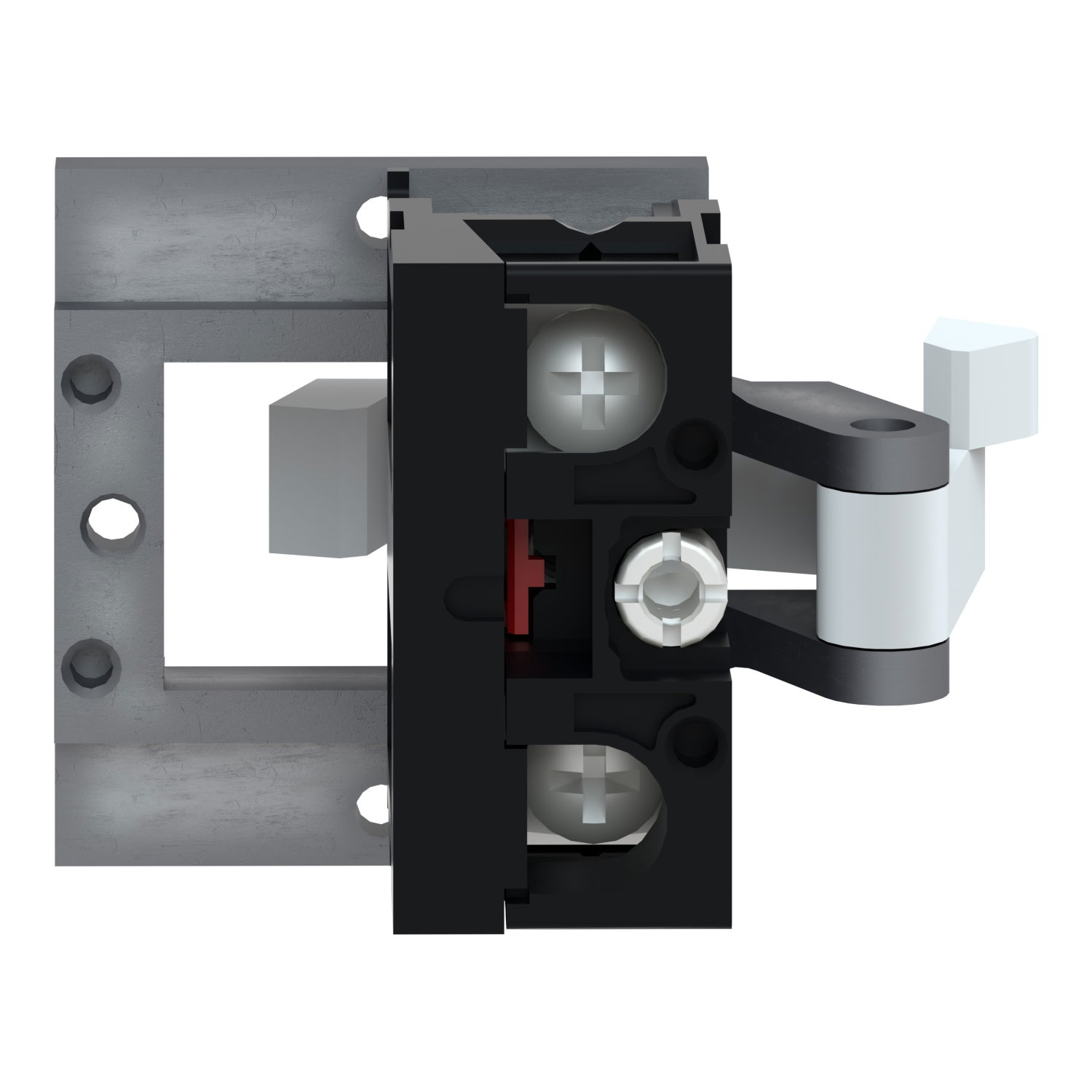

Spring return contact block - 2 NC - base mounting – Image 2 of 8

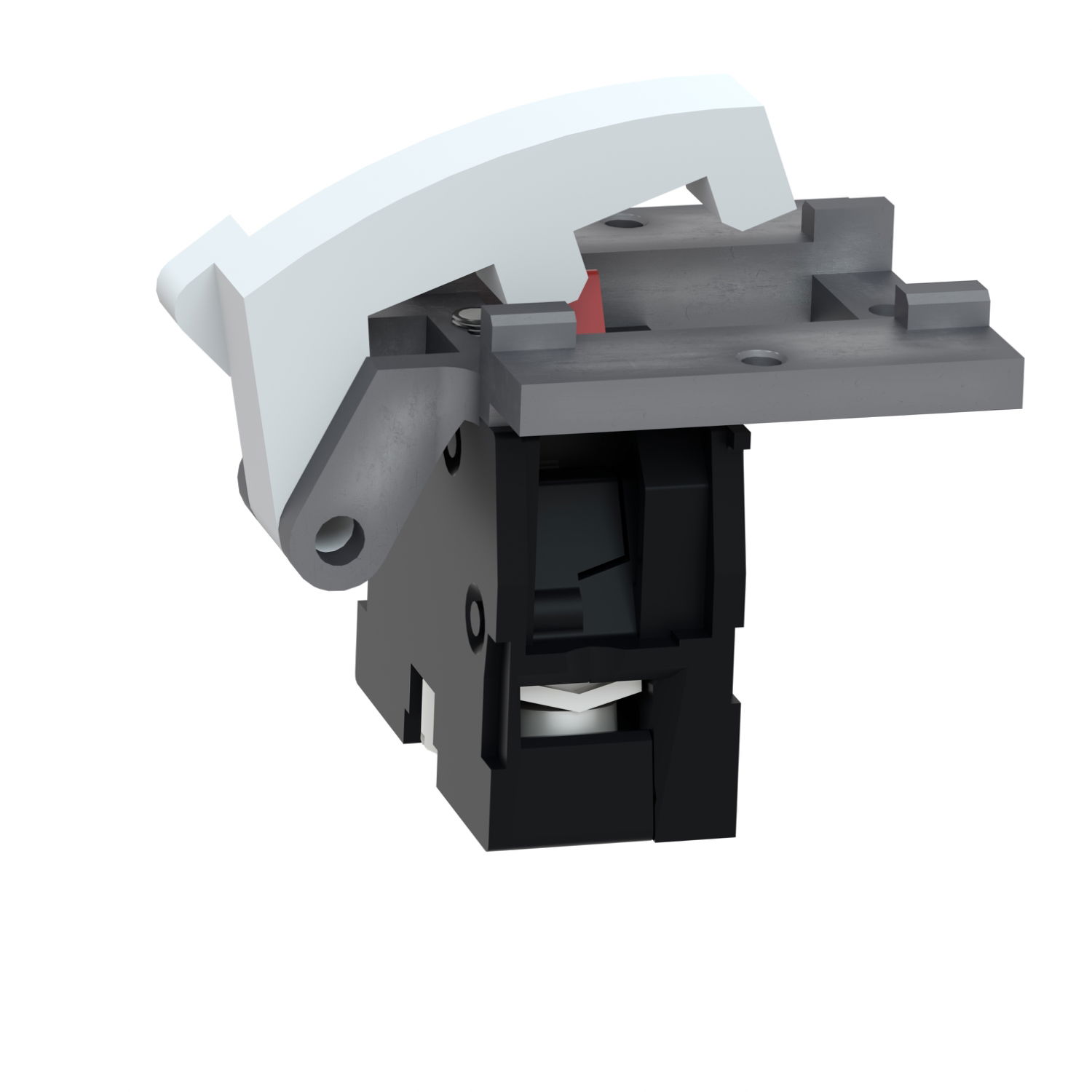

Spring return contact block - 2 NC - base mounting – Image 3 of 8

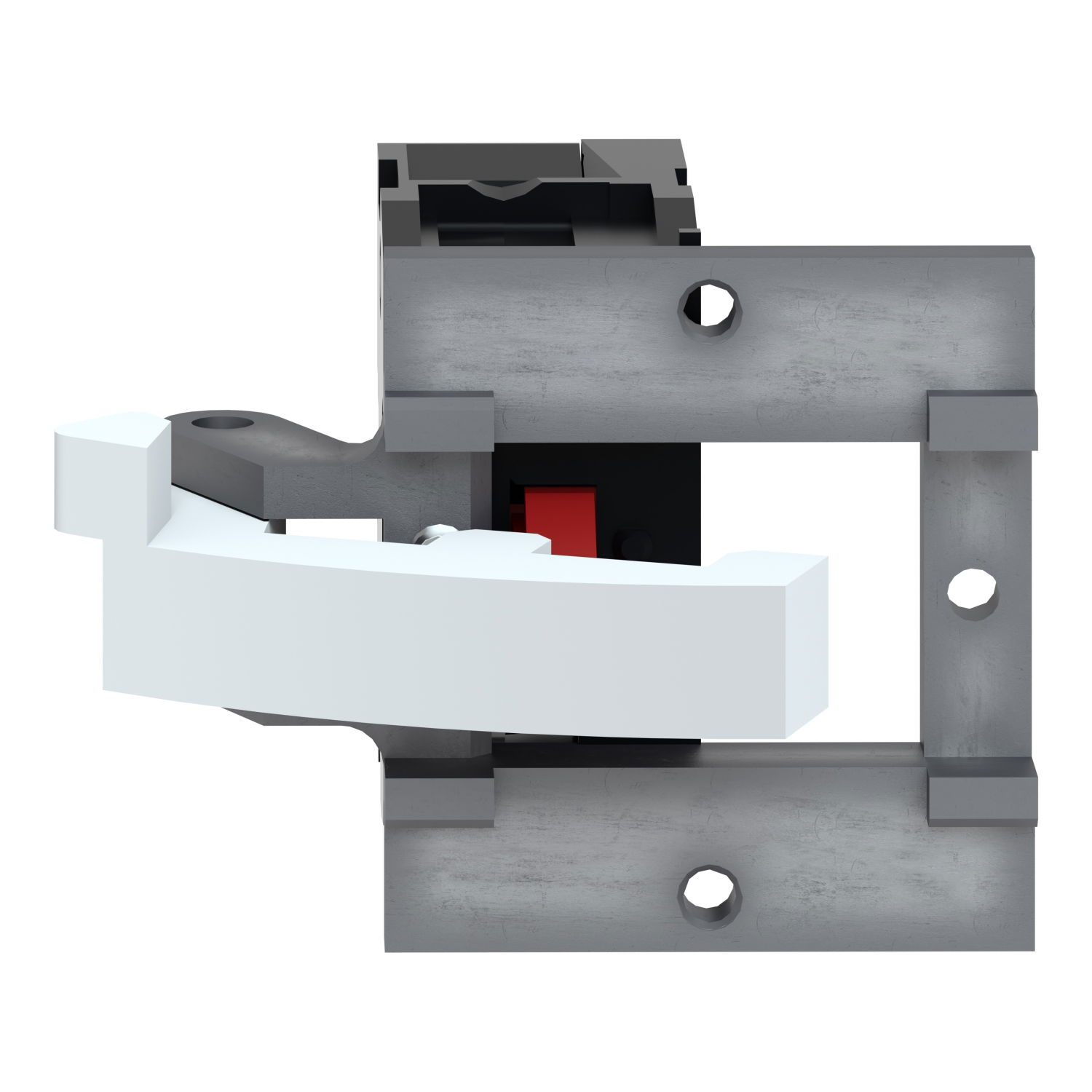

Spring return contact block - 2 NC - base mounting – Image 4 of 8

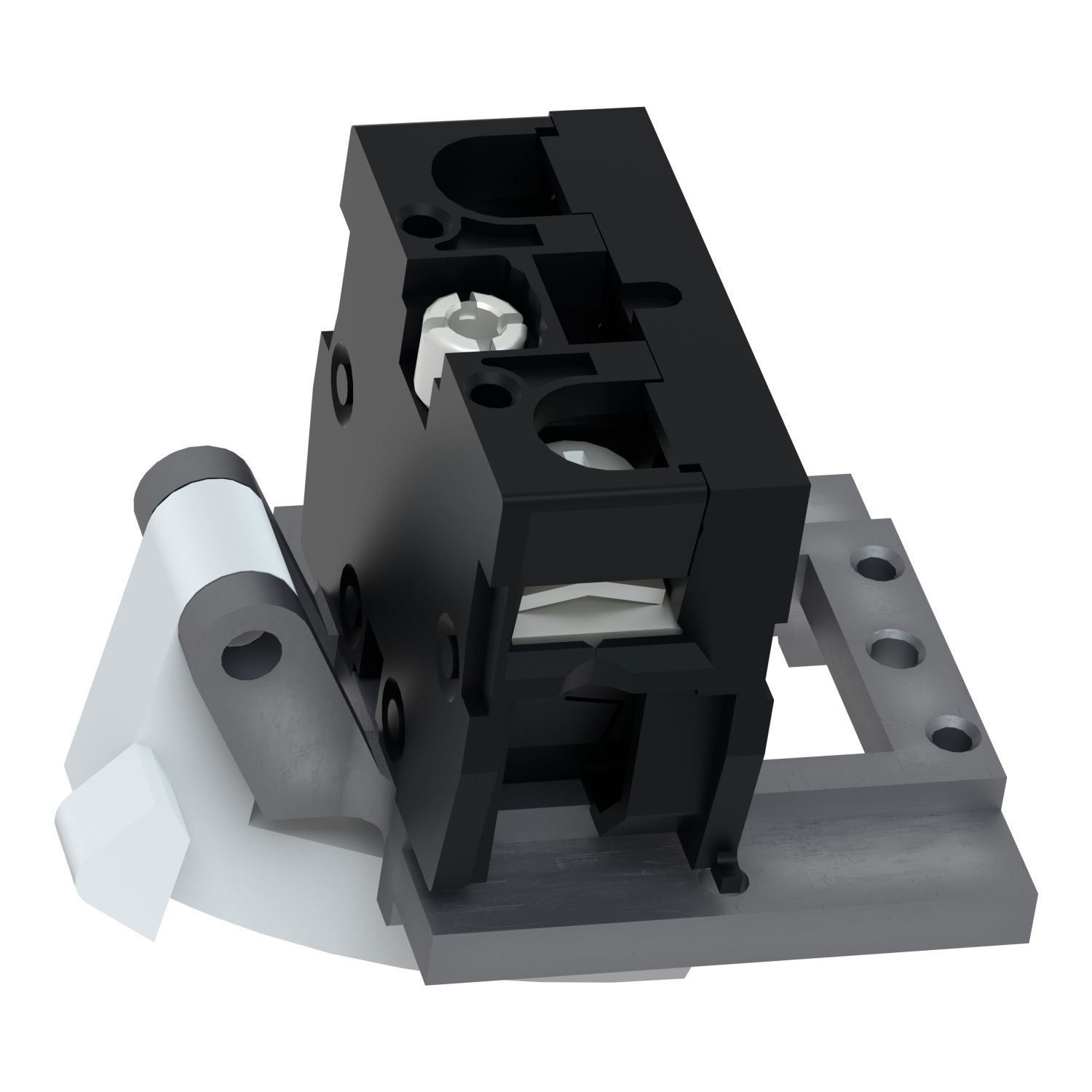

Spring return contact block - 2 NC - base mounting – Image 5 of 8

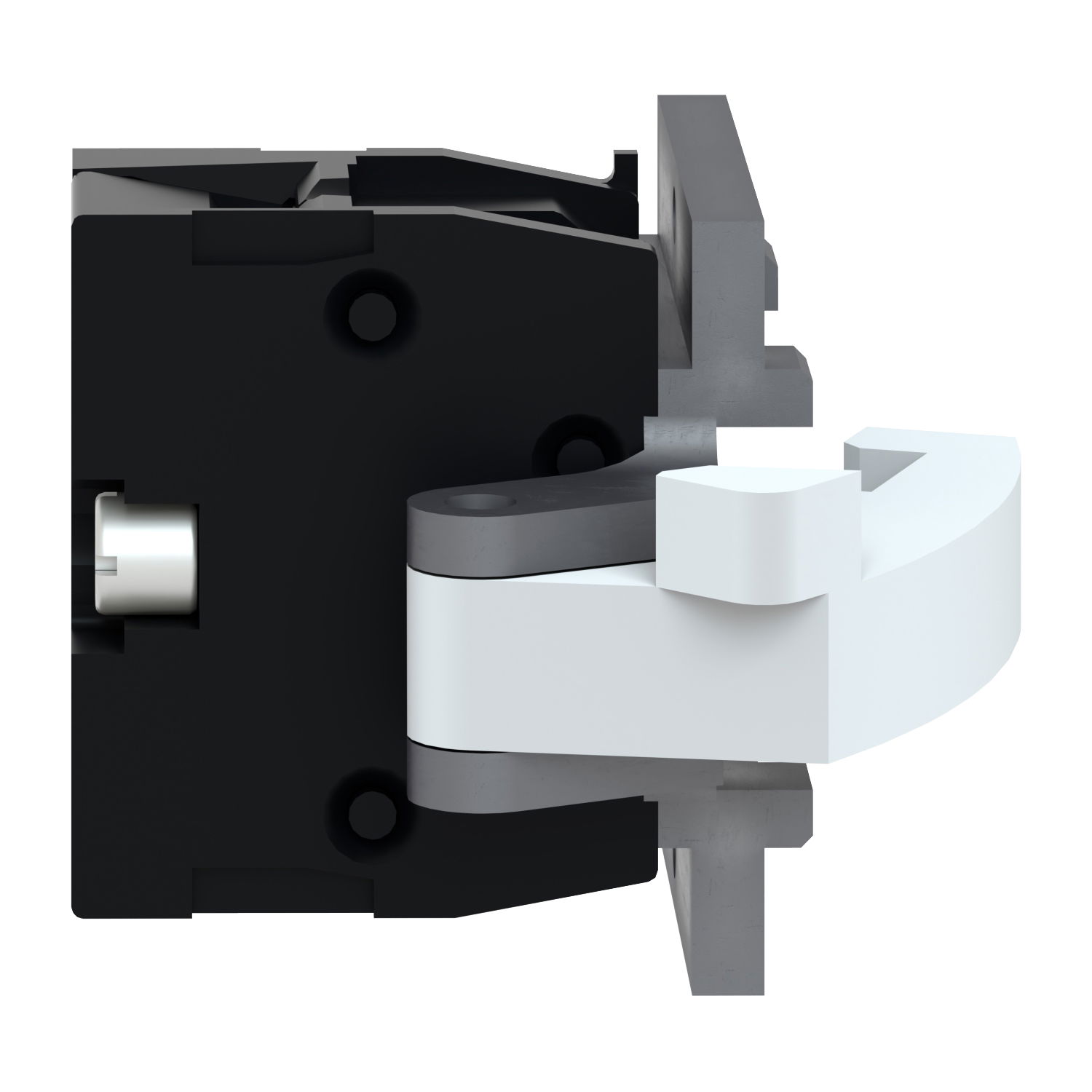

Spring return contact block - 2 NC - base mounting – Image 6 of 8

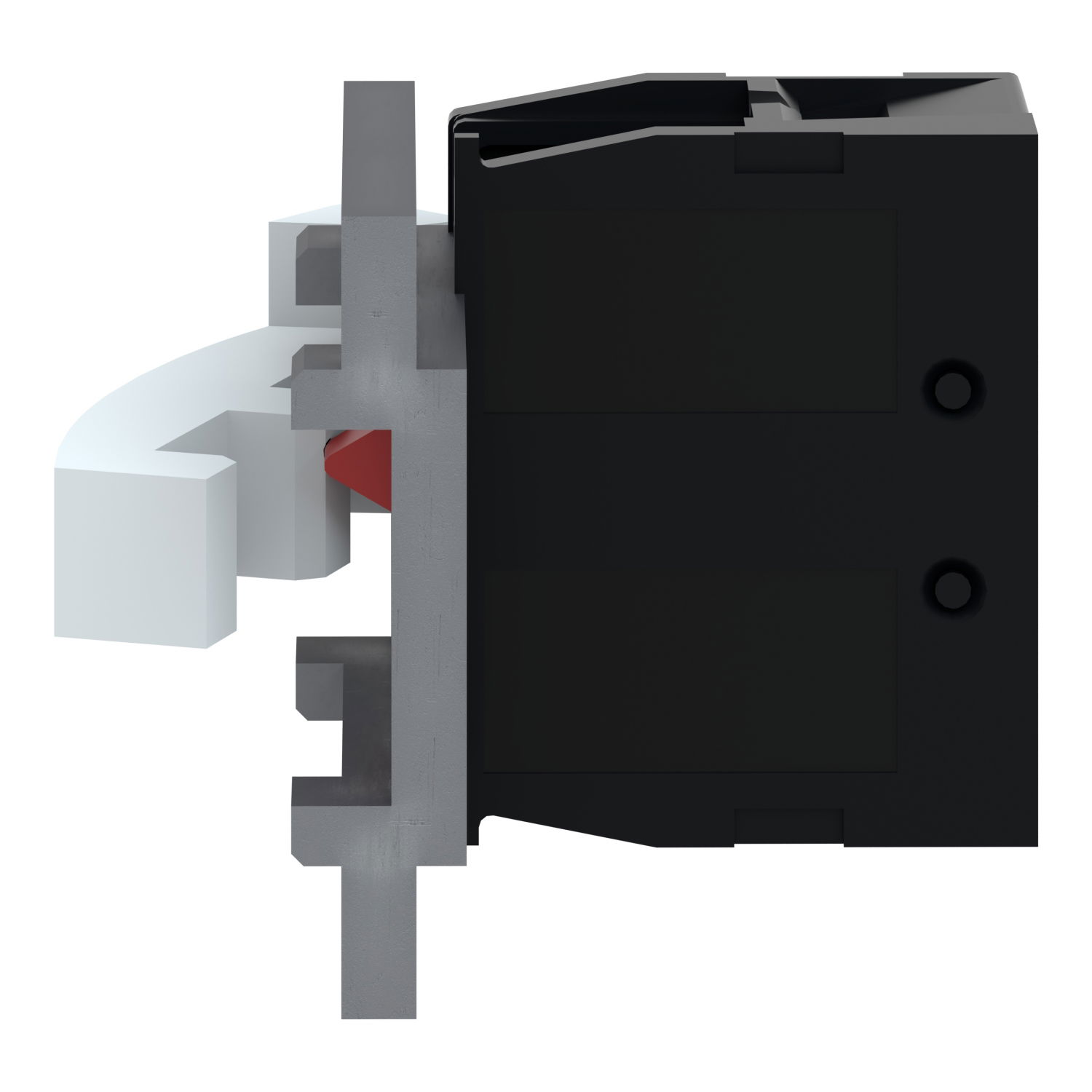

Spring return contact block - 2 NC - base mounting – Image 7 of 8

Spring return contact block - 2 NC - base mounting – Image 8 of 8

1 / 8

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Spring return contact block - 2 NC - base mounting

Link copied

SKU
EAN
GTIN
MPN

Spring return contact block - 2 NC - base mounting by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £16.58 to £26.60 excl. VAT. Voltimum+ members earn 4 points per unit.

This Harmony XACS104 is a spring return contact block - 2 NC - base mounting. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Loyalty points: 4

Price range: £ 16.58 - £ 26.60 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Model	Integrable
Lamp holder	None
Mounting method	Other
Type of electric connection	Screw connection
Number of fault-signal switches	0
Number of contacts as change-over contact	0
Rated operation current Ie at AC-15, 230 V	3 A
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	2
